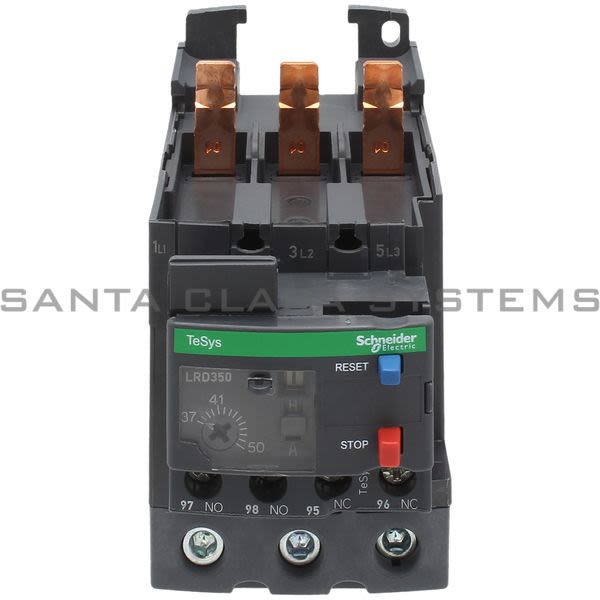

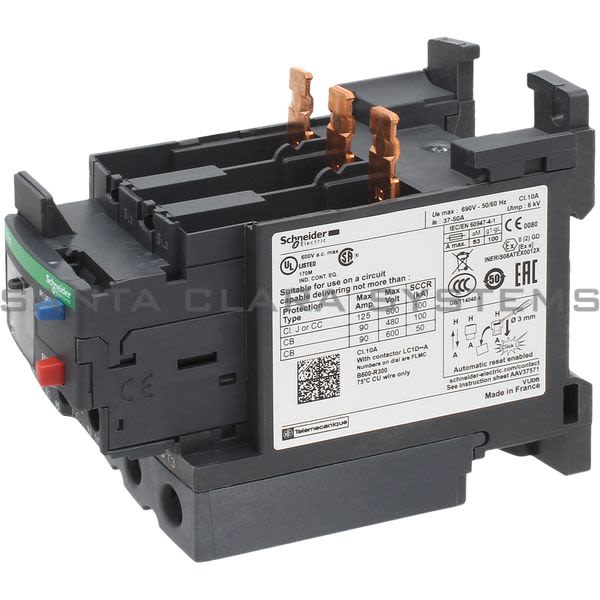

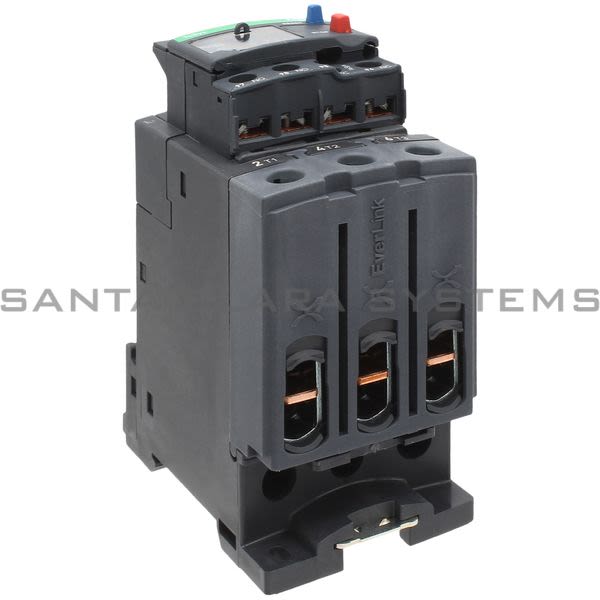

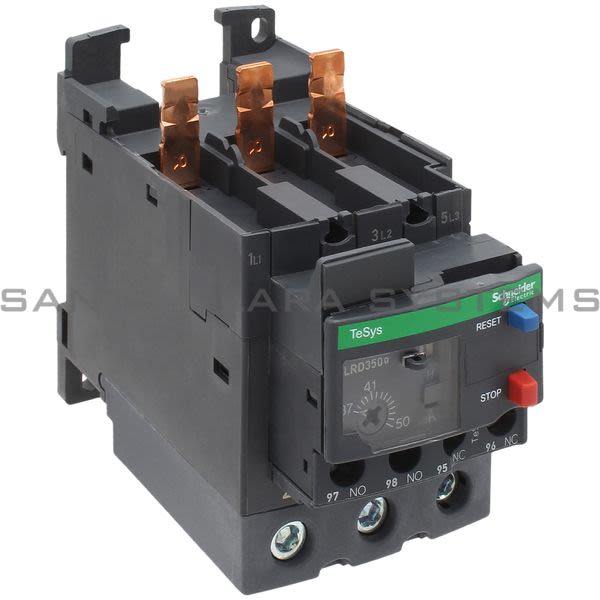

- Description: Thermal Overload Relay
- IP degree of protection: IP20 conforming to IEC 60529
- Standards: UL 508
- Device short name: LRD
- Width: 55 mm
- Height: 70 mm
- Depth: 123 mm
- Protective treatment: TH conforming to IEC 60068
- [Ui] rated insulation voltage: Power circuit: 600 V conforming to CSA
- [Uimp] rated impulse withstand voltage: 6 kV
- Tightening torque: Control circuit: 1.7 N.m - on screw clamp terminals
- Connections - terminals: Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end
- Range: TeSys
- [Ith] conventional free air thermal current: 5 A for signalling circuit
- Product name: TeSys LRD
- Control type: Red push-button: stop
- Product or component type: Differential thermal overload relay
- Relay application: Motor protection
- Network type: DC
- Thermal protection adjustment range: 37…50 A
- Network frequency: 0...400 Hz
- Tripping threshold: 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
- Permissible current: 0.95 A at 380 V AC-15 for signalling circuit
- [Ue] rated operational voltage: 690 V AC 0...400 Hz
- Temperature compensation: -20…60 °C
- Net weight: 0.375 kg
- Ambient air temperature for operation: -20…60 °C without derating conforming to IEC 60947-4-1
- Ambient air temperature for storage: -60…70 °C
- Flame retardance: V1 conforming to UL 94
- Mechanical robustness: Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7
- Dielectric strength: 6 kV at 50 Hz conforming to IEC 60255-5
- Sustainable offer status: Green Premium product
- Toxic heavy metal free: Yes
- Mercury free: Yes
- Circularity Profile: End of Life Information
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LRD350 . Santa Clara Systems carries 10,459 items from Telemecanique.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
