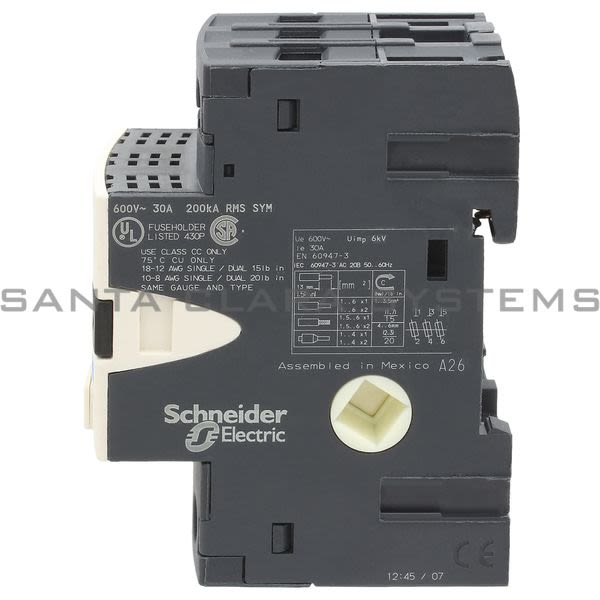

Telemecanique LS1D30 TeSys fuse-disconnector - 3P - 30 A - fuse size 0.41 x 1.5 in - screw type Product Image

LS1D30

Telemecanique - TeSys fuse-disconnector - 3P - 30 A - fuse size 0.41 x 1.5 in - screw type

Current response time:

10 Minutes 25 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys fuse-disconnector - 3P - 30 A - fuse size 0.41 x 1.5 in - screw type
Product weight: 0.66 lb(US) (0.3 kg)
IP degree of protection: IP20
Standards: IEC 60947-2UL 508IEC 60947-1IEC 60947-4-1
Device short name: LS1D
Width: 1.77 in (45 mm)
Height: 3.5 in (89 mm)
Depth: 2.69 in (68.3 mm)
Protective treatment: TH
Tightening torque: 1.7 N.m on screw clamp terminals
Connections - terminals: 2 solid cable(s) 1...6 mm² on screw clamp terminals2 flexible cable(s) 1...6 mm² without cable end on screw clamp terminals2 flexible cable(s) 1...4 mm² with cable end on screw clamp terminals
Range: TeSys
Mounting support: Rail

System Voltage: 600 V
Product name: TeSys LS1
[Ie] rated operational current: 30 A for power circuit
Poles description: 3P
Control type: Toggle
Mounting position: Vertical +/- 23°
Fuse type: CC
Fuse size: 0.41 x 1.50 in
Product certifications: ULCSA
Product or component type: Fuse-disconnector
Ambient air temperature for operation: -50...70 °C operation
Local signaling: Blown fuse indication
