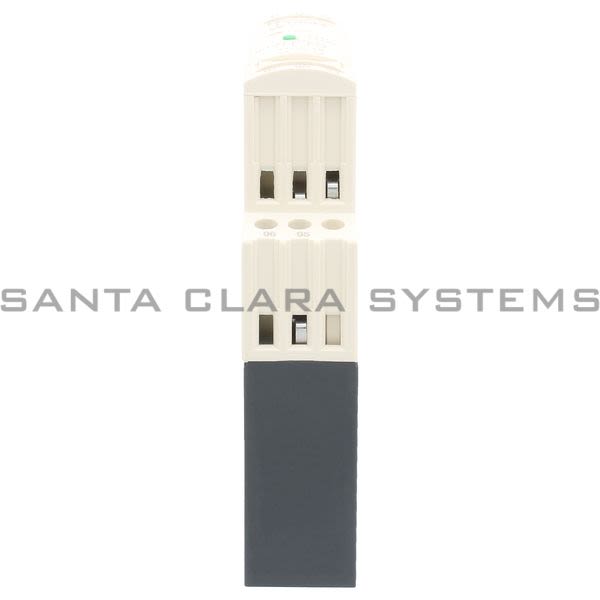

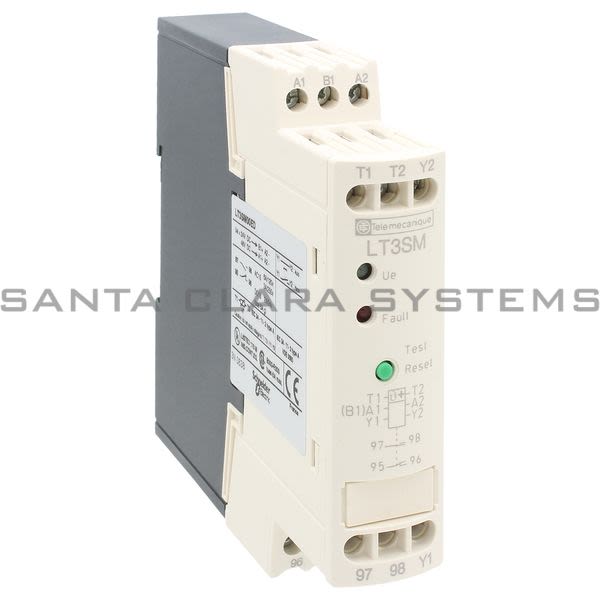

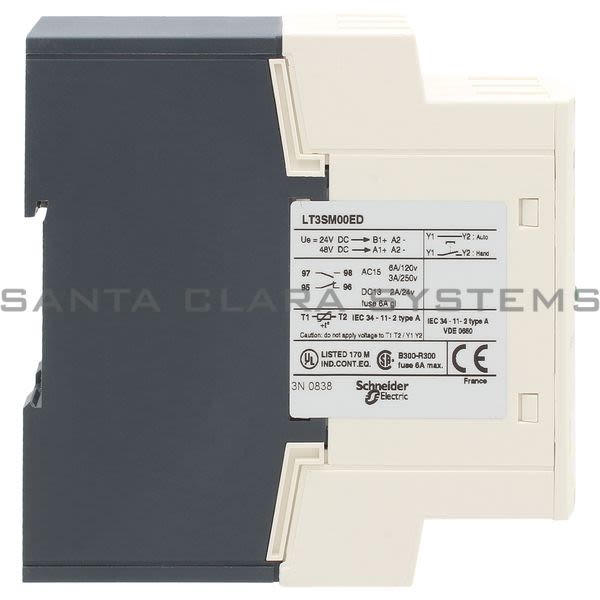

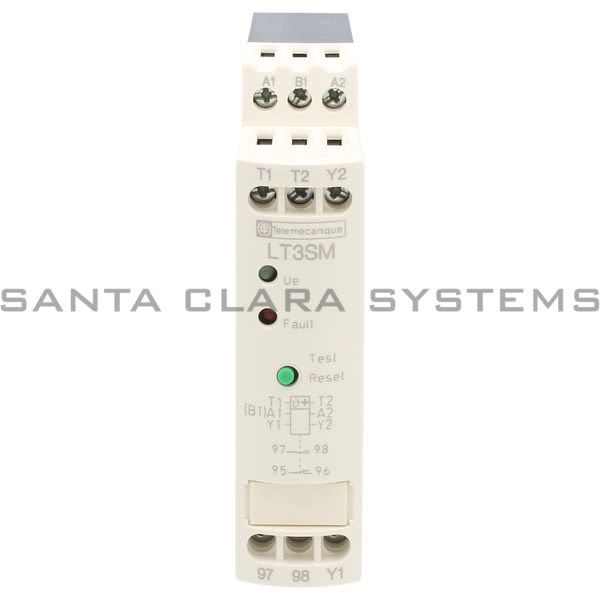

LT3SM00ED

Telemecanique - Protection Relay

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Protection Relay
IP degree of protection: IP20 conforming to IEC 60529
Standards: IEC 60947-8
Device short name: LT3SE
Width: 22.5 mm
Height: 100 mm
Depth: 100 mm
[Ui] rated insulation voltage: Output control relay: 500 V AC
[Uimp] rated impulse withstand voltage: 2.5 kV
Operating altitude: <= 1500 m without derating in temperature
Tightening torque: 0.8 N.m
Connections - terminals: Power circuit: cage type connector 1 cable(s) 0.752.5 mmflexible with cable end
[Ith] conventional free air thermal current: 5 A for output control relay
[Uc] control circuit voltage: 24...48 V DC
Vibration resistance: 1 gn 25...150 Hz conforming to IEC 60068-2-6
Shock resistance: 5 gn 11 ms conforming to IEC 60068-2-27
Control circuit voltage limits: 0.8...1.25 Uc
Control type: Manual test
Breaking capacity: 2 A at 24 V DC DC-13
Input voltage: < 2.5 V (1500 Ohm) for probe

Product or component type: Thermistor protection units
Reset: Manual
Contacts type and composition: 1 NC + 1 NO dual voltage
[Ue] rated operational voltage: 250 V AC 50/60 Hz for output control relay
Signalling function: Fault indication
hold-in power consumption in W: 1 W
hold-in power consumption in VA: 2.5 VA
Resistance: 15001650 Ohm reset
Number of probes: 06
Maximum short circuit detection resistance: 20 Ohm
Condition of use: Connection of probes 1000 m >2.5 mm
rated power in VA: 100 VA at 220 V - electrical durability: 500000 cycles
Net weight: 0.22 kg
Ambient air temperature for operation: -2560 C
Ambient air temperature for storage: -4085 C conforming to IEC 60068-2-2
Electromagnetic compatibility: Resistance to electrostatic discharge level 3 conforming to IEC 61000-4-2
Sustainable offer status: Green Premium product
Mercury free: Yes
Circularity Profile: End of Life Information
