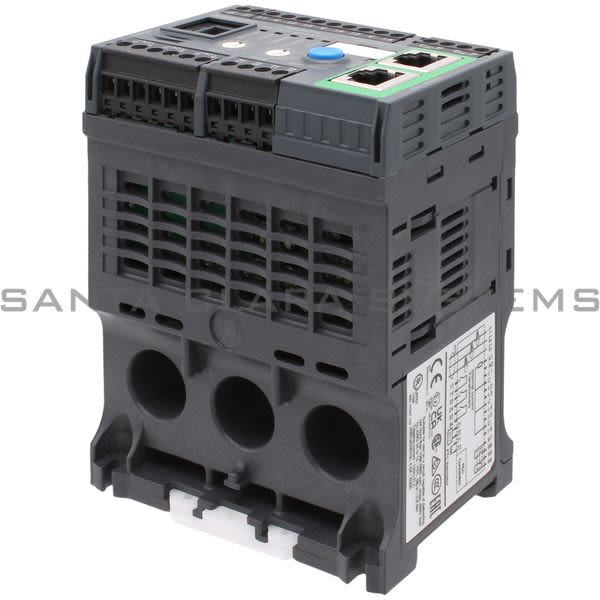

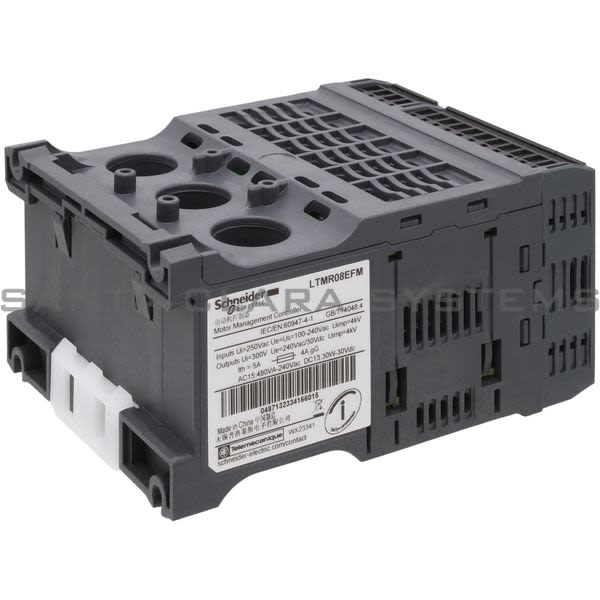

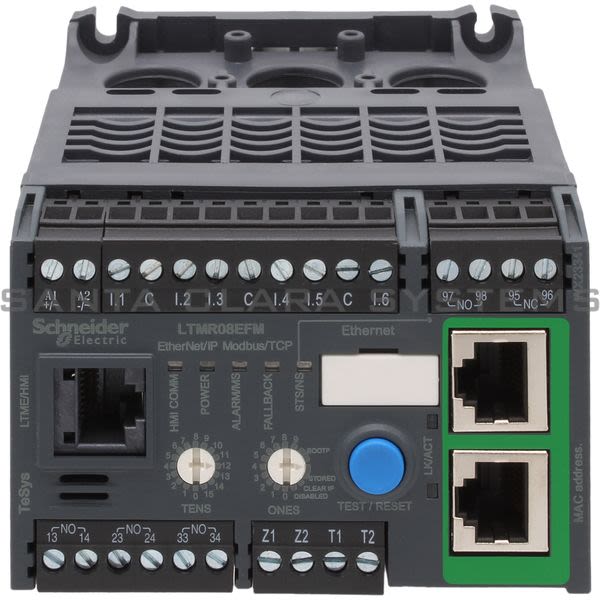

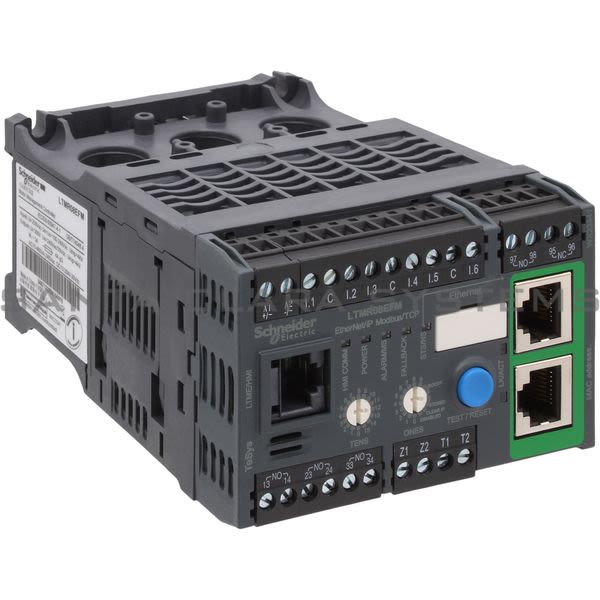

LTMR08EFM

Telemecanique - motor controller LTMR TeSys T - 100..240 V AC 8 A for Ethernet TCP/IP

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: motor controller LTMR TeSys T - 100..240 V AC 8 A for Ethernet TCP/IP
Product weight: 1.17 lb(US) (0.53 kg)
IP degree of protection: IP20
Standards: IEC 60947-4-1, EN 60947-4-1, CSA C22.2 No 14, IACS E10, UL 508
Device short name: LTMR
Width: 3.58 in (91 mm)
Height: 2.4 in (61 mm)
Depth: 4.82 in (122.5 mm)
Protective treatment: 12 x 24 hour cycles conforming to EN/IEC 60068-2-30, 48 h conforming to EN/IEC 60070-2-11, TH conforming to EN/IEC 60068
[Ui] rated insulation voltage: 690 V conforming to CSA C22.2 No 14, 690 V conforming to EN/IEC 60947-1, 690 V conforming to UL 508
[Uimp] rated impulse withstand voltage: 4 kV supply, inputs and outputs conforming to EN/IEC 60947-4-1, 6 kV current or voltage measurement circuit conforming to EN/IEC 60947-4-1, 0.8 kV communication circuit conforming to EN/IEC 60947-4-1
Operating altitude: <= 6561.68 ft. (2000 m) without derating
Tightening torque: 4.42...5.31 lbf.in (0.5...0.6 N.m), 0.12 in (3 mm) flat screwdriver control circuit
Connections - terminals: Connector, 1 flexible cable with cable end 0...0 in (0.25...2.5 mm) /AWG 24...AWG 14 control circuit, Connector, 1 flexible cable without cable end 0...0 in (0.2...2.5 mm) /AWG 24...AWG 14 control circuit, Connector, 1 flexible cable without cable end 0...0 in (0.25...2.5 mm) /AWG 24...AWG 14 control circuit, Connector, 1 solid cable without cable end 0...0 in (0.2...2.5 mm) /AWG 24...AWG 14 control circuit, Connector, 2 flexible cable with cable end 0...0 in (0.2...1 mm) /AWG 24...AWG 14 control circuit, Connector, 2 flexible cable without cable end 0...0 in (0.2...1.5 mm) /AWG 24...AWG 14 control circuit, Connector, 2 flexible cable without cable end 0...0 in (0.5...1.5 mm) /AWG 24...AWG 14 control circuit, Connector, 2 solid cable without cable end 0...0 in (0.2...1 mm) /AWG 24...AWG 14 control circuit
Range: TeSys
Operating rate: 1800 cyc/h
Product name: TeSys T
[Us] rated supply voltage: 100...240 V AC 50/60 Hz
Overvoltage category: III
Associated fuse rating: 0.5 A gG control circuit, 4 A gG output
Protection type: Earth-leakage protection, Phase unbalance, Thermal overload protection, Load fluctuation, Phase failure, Power factor variation, Thermal protection, Locked rotor, Overload (long time), Overload, Reverse polarity protection
Product certifications: LROS (Lloyds register of shipping), NOM, BV, UL, KERI, C-Tick, CCC, ABS, EAC, GL, CSA, RINA, RMRoS, ATEX, DNV
Short-circuit withstand: 100 kA conforming to EN/IEC 60947-4-1
Product or component type: Motor controller
Fire resistance: 1202 F (650 C) conforming to EN/IEC 60695-2-12, 1760 F (960 C) conforming to UL 94

Device application: Equipment monitoring and control
Ambient air temperature for operation: -4...140 F (-20...60 C)
Measurement current: 0.4...8 A
Network and machine diagnosis type: Fault recording, Motor control command recording, Trip context information, Running hours counter/operating time, Remaining operating time before overload tripping, Phase fault and earth fault trip counters, Trip history information, Event recording, Starting current and time, Waiting time after overload tripping
Ambient air temperature for storage: -40...176 F (-40...80 C)
Logic input number: 6
Current consumption: 8...62.8 mA
Input current: 3.1 mA at 100 V, 7.5 mA at 240 V
Mechanical robustness: shocks half sine wave acceleration (15 Gn for 11 ms) conforming to EN/IEC 60068-2-27, ? vibrations mounted on symmetrical rail (1 Gn, 5...300 Hz) conforming to EN/IEC 60068-2-6, ? vibrations plate mounted (4 Gn, 5...300 Hz) conforming to EN/IEC 60068-2-6
Supply voltage limits: 93.5...264 V AC
Input/output type: Logic input : 0...40 V and <= 15 mA 25 ms (at state 0), Logic input : 79...264 V and >= 2 mA 25 ms (at state 1)
Communication port protocol: Modbus TCP/Ethernet/IP
Maximum operating frequency: 2 Hz
Bus type: Ethernet IEEE 802.3 interface, addressing 0...159, transmission rate 10...100 Mbit/s, RJ45 with 2 shielded twisted pairs
Load current: 5 A at 250 V AC logic output, 5 A at 30 V DC logic output
Permissible power: 480 VA (AC-15), Ie = 2 A, 500000 cycles (output), 30 W (DC-13), Ie = 1.25 A, 500000 cycles (output)
Contacts type and composition: 1 NO + 1 NC fault signal, 3 NO
Metering type: Earth-fault current, Temperature, Imbalance current, Average current Iavg, Phase current I1, I2, I3 RMS
Measurement accuracy: 3 % power factor (cos ? > 0.6), +/- 30 min/year internal clock, 0,02 temperature, 5...15 % earth fault current internal measurement (for current > 0.1 A), 1 % current, 1 % voltage (100...830 V), 5 % active and reactive power, 5 % earth fault current external measurement (< 5 % or 0.01 A)
Connection pitch: 0.2 in (5.08 mm)
Pollution degree: 3
Electromagnetic compatibility: electrostatic discharge 3 (8 kV air, 6 kV contact), conforming to EN/IEC 61000-4-2, ? fast transients immunity test other circuits level 3 (2 kV), conforming to EN/IEC 61000-4-4, ? fast transients immunity test on supply and relay outputs level 4 (4 kV), conforming to EN/IEC 61000-4-4, ? conducted RF disturbances (10 V), conforming to EN/IEC 61000-4-6, ? surges serial mode (1 kV) control circuit, conforming to EN/IEC 61000-4-5, ? surges common mode (2 kV) communication, conforming to EN/IEC 61000-4-5, ? surges common mode (2 kV) control circuit, conforming to EN/IEC 61000-4-5, ? radiated RF fields 3 (10 V/m), conforming to EN/IEC 61000-4-3, ? voltage dips and interruptions immunity test (70 %, 500 ms), conforming to EN/IEC 61000-4-11, ? surges serial mode (0.5 kV) temperature sensor, conforming to EN/IEC 61000-4-5, ? surges common mode (1 kV) temperature sensor, conforming to EN/IEC 61000-4-5, ? surges serial mode (2 kV) relay outputs and supply, conforming to EN/IEC 61000-4-5, ? surges common mode (4 kV) relay outputs and supply, conforming to EN/IEC 61000-4-5
Web services: Web server
Compatibility code: LTMR

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LTMR08EFM . Santa Clara Systems carries 10,304 items from Telemecanique.
