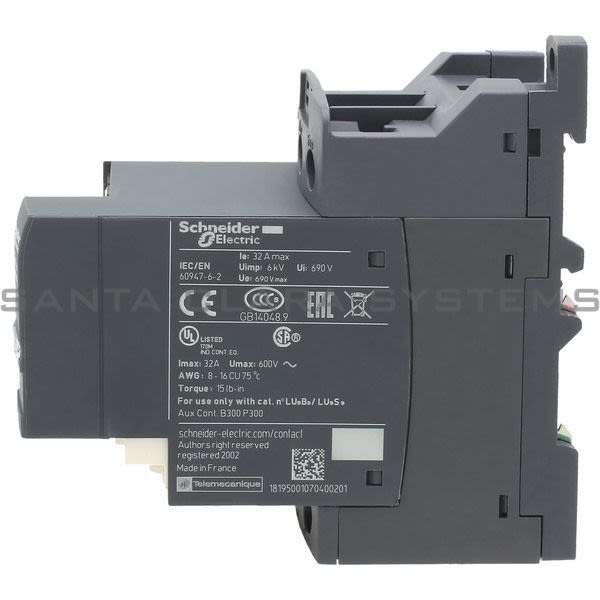

• Telemecanique LU6 MB0BL Reversing Block Product Image

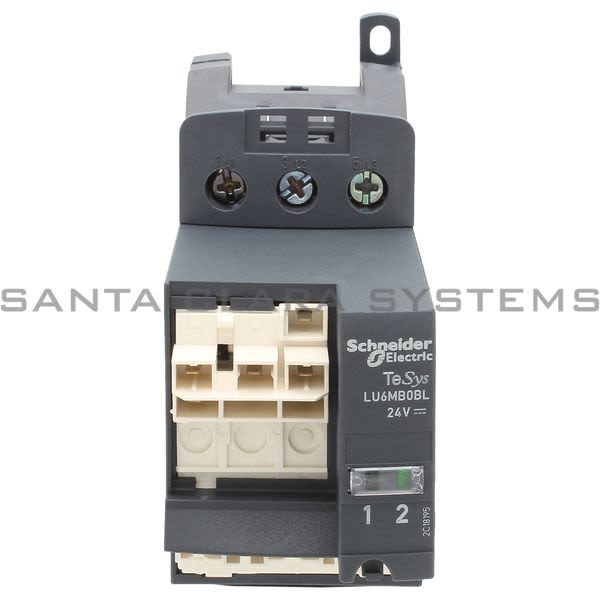

  • Telemecanique LU6 MB0BL Reversing Block Product Image

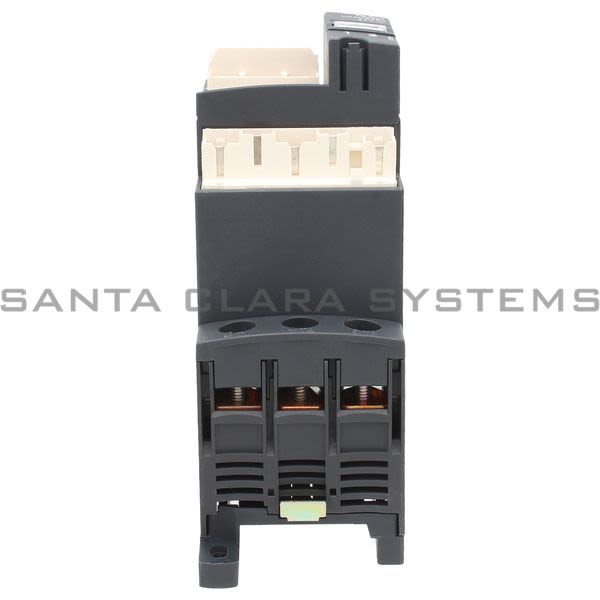

  • Telemecanique LU6 MB0BL Reversing Block Product Image

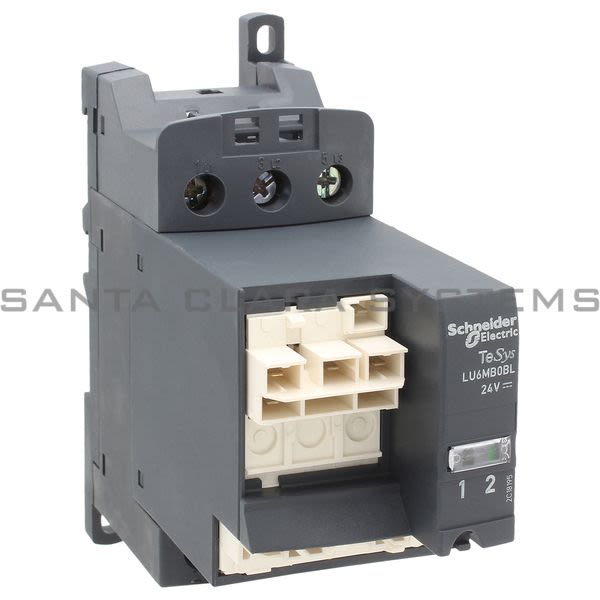

  • Telemecanique LU6 MB0BL Reversing Block Product Image
  • Telemecanique LU6 MB0BL Barcode

LU6MB0BL

Let Us Find It

Current response time:

8 Minutes 25 Seconds
  • Description: Reversing Block
  • IP degree of protection: IP20 conforming to IEC 60947-1 (front panel and wired terminals)
  • Standards: UL 508 type E, with phase barrier
  • Device short name: LU6MB
  • Protective treatment: TH conforming to IEC 60068
  • [Ui] rated insulation voltage: 600 V conforming to UL 508
  • [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-6-2
  • Operating altitude: 2000 m
  • Tightening torque: Control circuit: 0.81.2 N.m flat screwdriver 5 mm
  • Connections - terminals: Control circuit: screw clamp terminals 1 cable(s) 0.341.5 mm (external diameter: 3 mm) flexible with cable end
  • Range: TeSys
  • [Uc] control circuit voltage: 24 V DC
  • Shock resistance: 10 gn power poles open conforming to IEC 60068-2-27
  • Vibration resistance: 2 gn (f= 5300 Hz) power poles open conforming to IEC 60068-2-27
  • Operating time: 150 ms with change of direction
  • Product or component type: Reverser block
  • Mounting mode: Rail
  • [Ue] rated operational voltage: 230 V
  • Network frequency: 40...60 Hz
  • Inrush restraint duration: 25 ms AC 50/60 Hz
  • Current consumption: 120 mA at 24 V DC I maximum while closing
  • Net weight: 0.425 kg
  • Ambient air temperature for operation: -2560 C with LUCM
  • Fire resistance: 960 C parts supporting live components conforming to IEC 60695-2-12
  • Resistance to electrostatic discharge: 8 kV level 3, in open air conforming to IEC 61000-4-2
  • Resistance to radiated fields: 10 V/m level 3 conforming to IEC 61000-4-3
  • Resistance to fast transients: 2 kV class 3 serial link conforming to IEC 61000-4-4
  • Immunity to radioelectric fields: 10 V conforming to IEC 61000-4-6
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LU6MB0BL . Santa Clara Systems carries 10,325 items from Telemecanique.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
