LUB120

Telemecanique - Power Base

Current response time:

By 5AM PT on Thursday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

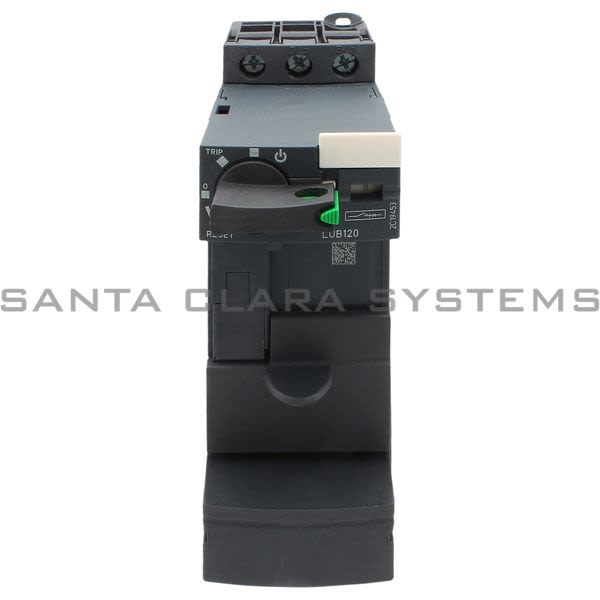

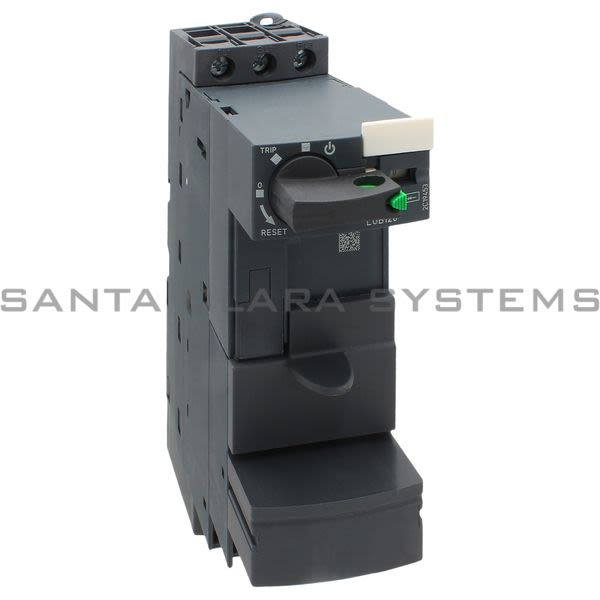

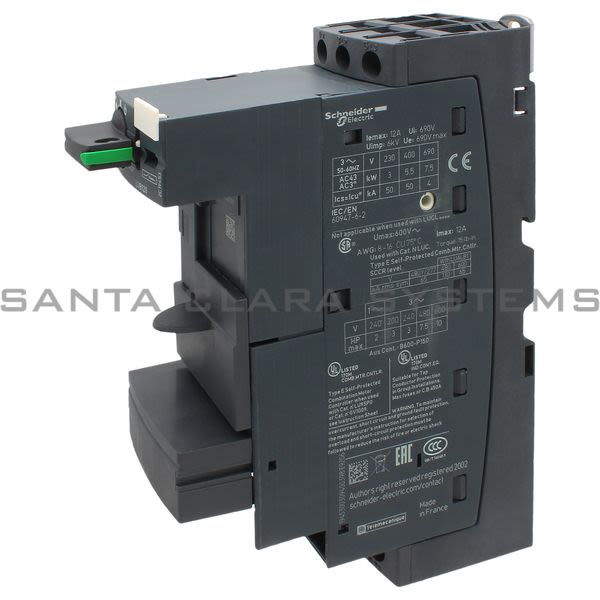

Description: Power Base
IP degree of protection: IP20 conforming to IEC 60947-1 (front panel and wired terminals)
Standards: UL 508 type E, with phase barrier
Device short name: LUB
Width: 45 mm
Height: 154 mm
Depth: 126 mm
Protective treatment: TH conforming to IEC 60068
[Ui] rated insulation voltage: 600 V conforming to UL 508
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-6-2
Operating altitude: 2000 m
Mechanical durability: 15000000 cycles
Tightening torque: Control circuit: 0.8…1.2 N.m flat screwdriver 5 mm
Connections - terminals: Power circuit: screw clamp terminals 1 cable(s) 1…10 mm² rigid without cable end
Range: TeSys
[Ith] conventional free air thermal current: 0
Product name: TeSys U
[Uc] control circuit voltage: 24 V AC 50/60 Hz
Shock resistance: 10 gn power poles open conforming to IEC 60068-2-27
Vibration resistance: 2 gn (f= 5…300 Hz) power poles open conforming to IEC 60068-2-27
[Ie] rated operational current: 12 A at <= 440 V
Poles description: 3P
Operating time: 35 ms opening with LUCA, LUCB, LUCC, LUCD, LUCM for control circuit
Product or component type: Non reversing power base

Device application: Motor
Suitability for isolation: Yes
Utilisation category: AC-41
Auxiliary contact composition: 1 NO + 1 NC
Auxiliary contacts type: type linked contacts (1 NO + 1 NC) conforming to IEC 60947-4-1
[Ue] rated operational voltage: 230 V
Network frequency: 40...60 Hz
[Ics] rated service breaking capacity: 10 kA at 500 V
Typical current consumption: 130 mA at 24 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD
Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Maximum operating rate: 60 cyc/mn
Safe separation of circuit: 400 V SELV between the control and auxiliary circuits conforming to IEC 60947-1 appendix N
Net weight: 0.865 kg
Heat dissipation: 2 W for control circuit with LUCA, LUCB, LUCC, LUCD
Immunity to microbreaks: 3 ms
Immunity to voltage dips: 70 % / 500 ms conforming to IEC 61000-4-11
Ambient air temperature for operation: -25…60 °C with LUCM
Ambient air temperature for storage: -40…85 °C
Fire resistance: 960 °C parts supporting live components conforming to IEC 60695-2-12
Resistance to electrostatic discharge: 8 kV level 3 in open air conforming to IEC 61000-4-2
Resistance to radiated fields: 10 V/m 3 conforming to IEC 61000-4-3
Resistance to fast transients: 2 kV class 3 serial link conforming to IEC 61000-4-4
Non-dissipating shock wave: 1 kV serial mode 24...240 V AC conforming to IEC 60947-6-2
Immunity to radioelectric fields: 10 V conforming to IEC 61000-4-6
