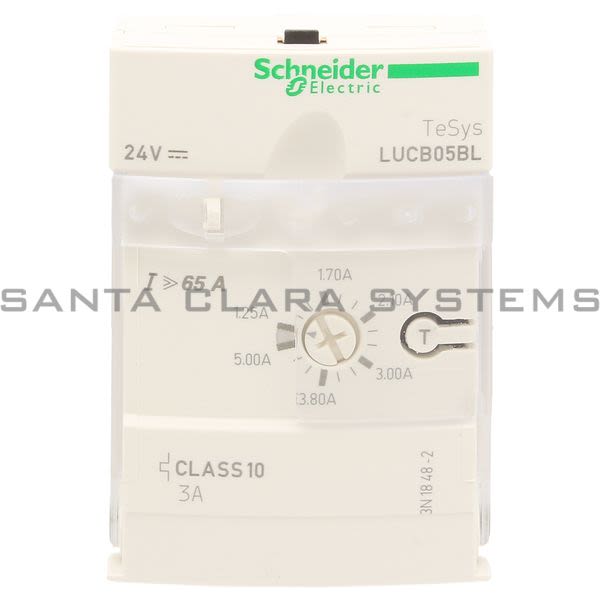

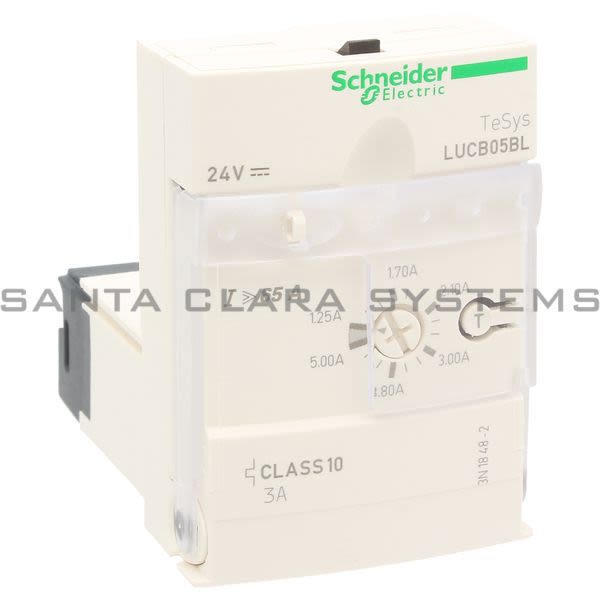

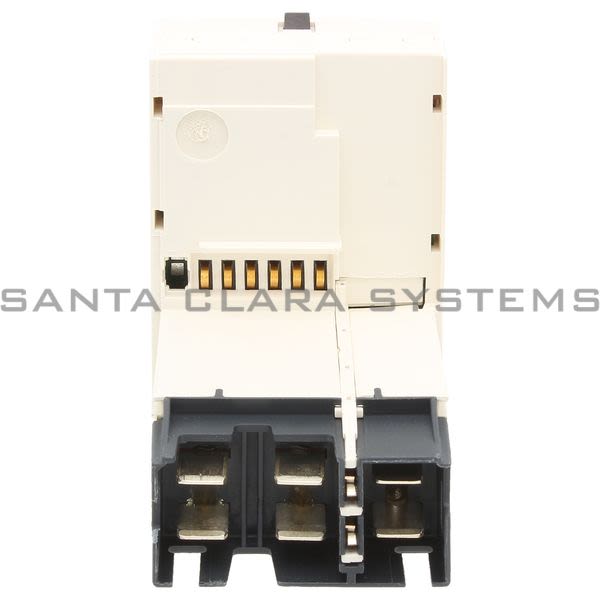

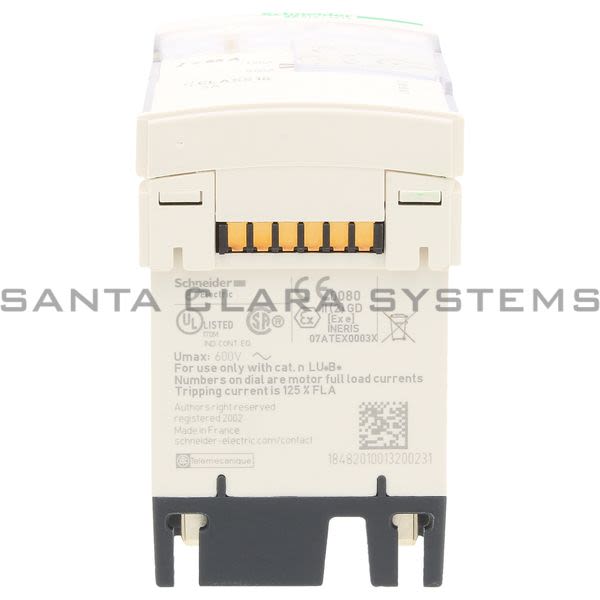

- Description: advanced control unit LUCB - class 10 - 1.25...5 A - 24 V DC
- IP degree of protection: IP20 front panel and wired terminals conforming to IEC 60947-1, IP20 other faces conforming to IEC 60947-1, IP40 front panel outside connection zone conforming to IEC 60947-1
- Standards: CSA C22.2 No 14 type E, EN 60947-6-2, IEC 60947-6-2, UL 508 type E with phase barrier
- Device short name: LUCB
- Protective treatment: TH conforming to IEC 60068
- [Ui] rated insulation voltage: 600 V conforming to CSA C22.2 No 14, 600 V conforming to UL 508, 690 V conforming to IEC 60947-1
- [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-6-2
- Operating altitude: 6561.68 ft. (2000 m)
- Range: TeSys
- Product name: TeSys U
- [Uc] control circuit voltage: 24 V DC
- Shock resistance: 10 gn power poles open conforming to IEC 60068-2-27, 15 gn power poles closed conforming to IEC 60068-2-27
- Vibration resistance: 2 gn 5...300 Hz power poles open conforming to IEC 60068-2-6, 4 gn 5...300 Hz power poles closed conforming to IEC 60068-2-6
- motor power kW: 3 kWat 690 V AC 50/60 Hz, 1.5 kW at 400...440 V AC 50/60 Hz, 2.2 kW at 500 V AC 50/60 Hz
- Utilization category: AC-43, AC-44, AC-41
- Control circuit voltage limits: 20...27 V DC circuit 24 V in operation
- Operating time: 35 ms opening with LUB12 control circuit, 35 ms opening with LUB32 control circuit, 70 ms closing with LUB12 control circuit, 70 ms closing with LUB32 control circuit
- Function available: Protection against phase failure and phase imbalance, Protection against overload and short-circuit, Earth fault protection, Manual reset
- Heat dissipation: 2 W control circuit with LUB12, 3 W control circuit with LUB32
- Mounting mode: Plug-in
- Immunity to micro breaks: 3 ms
- Mounting location: Front side
- Immunity to voltage dips: 70 % 500 ms conforming to IEC 61000-4-11
- Product or component type: Advanced control unit
- Product specific application: Basic protection and advanced functions, communication
- Typical current consumption: 130 mA at 24 V DC I maximum while closing with LUB12, 220 mA at 24 V DC I maximum while closing with LUB32, 60 mA at 24 V DC I rms sealed with LUB12, 80 mA at 24 V DC I rms sealed with LUB32
- Product certifications: UL, GL, LROS (Lloyds register of shipping), ABS, BV, ATEX, DNV, CSA, ASEFA, CCC, GOST
- Product compatibility: LULC09, LULC15, LUFDA10, LUFC00, LUFN.., LULC07, LUFDH11, ASILUFC5, LUFV2, ASILUFC51, LULC033, LULC031, LUFDA01, LUFW10, LULC08
- Load type: 3-phase motor - cooling: self-cooled
- Tripping threshold: 14.2 x Ir +/- 20 %
- Ambient air temperature for operation: -13...158 F (-25...70 C)
- Thermal protection adjustment range: 1.25...5 A
- Ambient air temperature for storage: -40...185 F (-40...85 C)
- Thermal overload class: Class 10 - frequency limit: 40...60 Hz - temperature compensation: -13...158 F (-25...70 C) - conforming to IEC 60947-6-2, Class 10 - frequency limit: 40...60 Hz - temperature compensation: -13...158 F (-25...70 C) - conforming to UL 508
- Safe separation of circuit: 400 V SELV between the control and auxiliary circuits conforming to IEC 60947-1, 400 V SELV between the control or auxiliary circuit and the main circuit conforming to IEC 60947-1
- Fire resistance: 1202 F (650 C) conforming to IEC 60695-2-12, 1760 F (960 C) parts supporting live components conforming to IEC 60695-2-12
- Resistance to electrostatic discharge: 8 kV level 3 in open air conforming to IEC 61000-4-2, 8 kV level 4 on contact conforming to IEC 61000-4-2
- Resistance to radiated fields: 9.14 V/yd (10 V/m) 3 conforming to IEC 61000-4-3
- Resistance to fast transients: 2 kV class 3 serial link conforming to IEC 61000-4-4, 4 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4
- Immunity to radio electric fields: 10 V conforming to IEC 61000-4-6
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LUCB05BL . Santa Clara Systems carries 10,300 items from Telemecanique.
- Advanced Control Unit Lucb - Class 10 - 1.25...5 A - 24 V Dc
