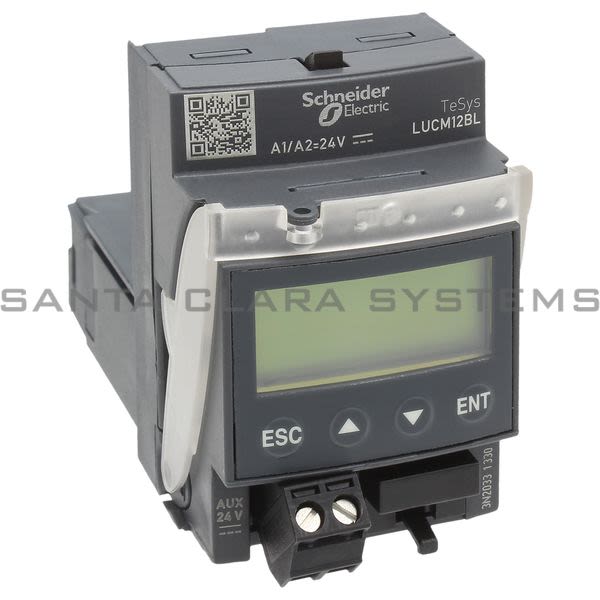

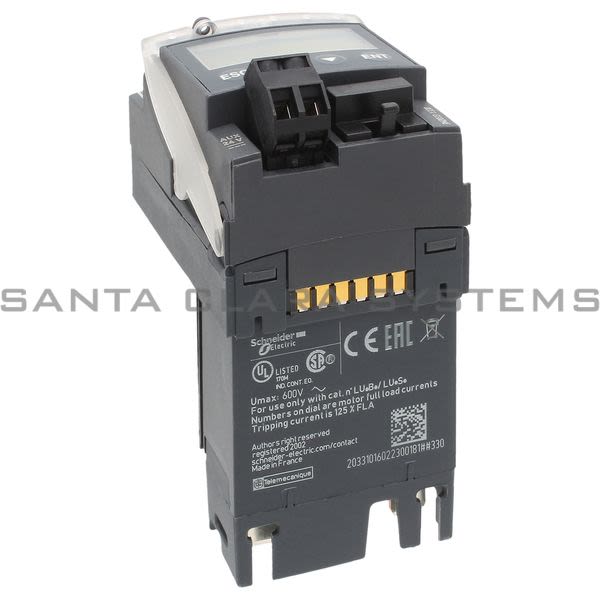

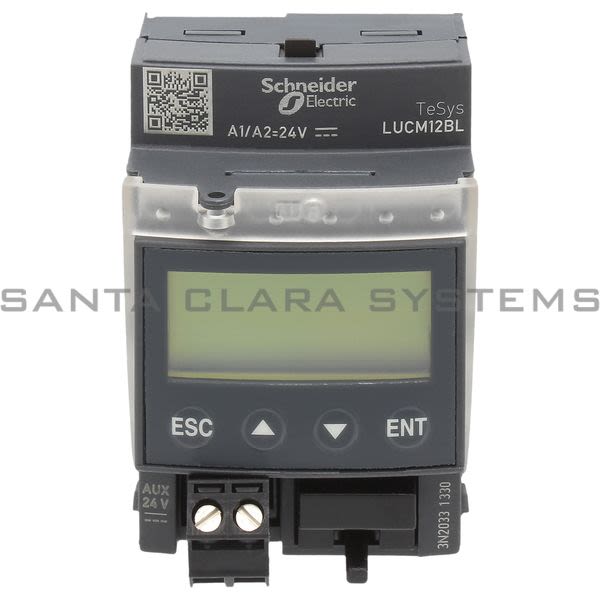

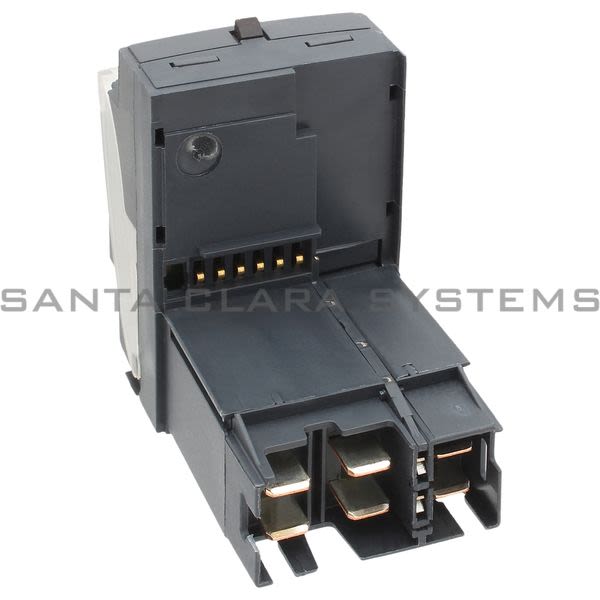

LUCM12BL

Telemecanique - Multifunction Control Unit

Product Summary:

Product weight: 0.39 lb(US) (0.175 kg)
Device short name: LUCM
Protective treatment: TH conforming to IEC 60068
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-6-2
Operating altitude: 6561.68 ft. (2000 m)

Current response time:

By 5AM PT on Wednesday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Multifunction Control Unit
Product weight: 0.39 lb(US) (0.175 kg)
IP degree of protection: IP20 front panel and wired terminals conforming to IEC 60947-1IP20 other faces conforming to IEC 60947-1IP40 front panel outside connection zone conforming to IEC 60947-1
Standards: CSA C22.2 No 14 type EEN 60947-6-2IEC 60947-6-2UL 508 type E with phase barrier
Device short name: LUCM
Protective treatment: TH conforming to IEC 60068
[Ui] rated insulation voltage: 600 V conforming to CSA C22.2 No 14600 V conforming to UL 508690 V conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-6-2
Operating altitude: 6561.68 ft. (2000 m)
Range: TeSys
Product name: TeSys U
[Uc] control circuit voltage: 24 V DC
Shock resistance: 10 gn power poles open conforming to IEC 60068-2-2715 gn power poles closed conforming to IEC 60068-2-27
Vibration resistance: 2 gn 5...300 Hz power poles open conforming to IEC 60068-2-64 gn 5...300 Hz power poles closed conforming to IEC 60068-2-6
motor power kW: 9 kW at 690 V AC 50/60 Hz5.5 kW at 400...440 V AC 50/60 Hz5.5 kW at 500 V AC 50/60 Hz
Utilization category: AC-44AC-41AC-43
Control circuit voltage limits: 20...28 V DC circuit 24 V in operation
Operating time: 35 ms opening with LUB12 control circuit35 ms opening with LUB32 control circuit65 ms closing with LUB32 control circuit75 ms closing with LUB12 control circuit
Function available: Log functionMonitoring function, indication of main motor parametersProtection function alarmOverload, no-load runningDifferentiation of thermal overload and magnetic faultEarth fault protectionProtection against overload and short-circuitProtection against phase failure and phase imbalanceManual or automatic reset
Heat dissipation: 0.8 W external auxiliary circuit1.7 W control circuit with LUB121.8 W control circuit with LUB32
Mounting mode: Plug-in
Immunity to micro breaks: 3 ms
Mounting location: Front side
Immunity to voltage dips: 70 % 500 ms conforming to IEC 61000-4-11

Product or component type: Multifunction control unit
Product specific application: Most sophisticated control and protection requirements, with display
Typical current consumption: 150 mA at 24 V DC I maximum while closing with LUB12200 mA at 24 V DC I maximum while closing with LUB3270 mA at 24 V DC I rms sealed with LUB1275 mA at 24 V DC I rms sealed
Product certifications: CSABVABSCCCASEFAGLATEXGOSTDNVULLROS (Lloyds register of shipping)
Product compatibility: ASILUFC51LUFC00LULC031ASILUFC5LUFV2LULC08LULC07LUFN..LULC033LULC09LULC15
Load type: Single-phase motor - cooling: self-cooled, force cooled - setting settable3-phase motor - cooling: self-cooled, force cooled - setting settable
Tripping threshold: 14.2 x Ir +/- 20 %
Ambient air temperature for operation: -13...140 °F (-25...60 °C)
Thermal protection adjustment range: 3...12 A
Physical interface: RS485 multidrop - connector(s): RJ45 - location: front panel - communication protocol: Modbus RTU 19200 bit/s
Ambient air temperature for storage: -40...185 °F (-40...85 °C)
Return time: <= 200 ms
Thermal overload class: Class 5?30 - frequency limit: 50...60 Hz - temperature compensation: -13...131 °F (-25...55 °C) - conforming to IEC 60947-6-2Class 5?30 - frequency limit: 50...60 Hz - temperature compensation: -13...131 °F (-25...55 °C) - conforming to UL 508
Messages display capacity: 2 lines of 12 characters - display LCD - English - accuracy +/- 5 % - resolution 1 % of Ir2 lines of 12 characters - display LCD - French - accuracy +/- 5 % - resolution 1 % of Ir2 lines of 12 characters - display LCD - German - accuracy +/- 5 % - resolution 1 % of Ir2 lines of 12 characters - display LCD - Italian - accuracy +/- 5 % - resolution 1 % of Ir2 lines of 12 characters - display LCD - Spanish - accuracy +/- 5 % - resolution 1 % of Ir
Fire resistance: 1202 °F (650 °C) conforming to IEC 60695-2-121760 °F (960 °C) parts supporting live components conforming to IEC 60695-2-12
User language: English - setting factory settingEnglish, French, German, Italian, Spanish - setting settable
Reset: Automatic reset - setting: setting rangeManual - setting: factory settingManual - setting: setting rangeRemote reset - setting: setting range
Time before reset: 120 s - reset manual - setting factory setting1...1000 s - reset manual or automatic reset - setting settable
Information displayed: Average current - setting factory settingAverage current - setting settableCause of last 5 faults - setting settableCurrent in phase - setting settableEarth leakage current - setting settablePhase imbalance - setting settableThermal state of motor - setting settable
Resistance to electrostatic discharge: 8 kV level 3 in open air conforming to IEC 61000-4-28 kV level 4 on contact conforming to IEC 61000-4-2
Resistance to radiated fields: 9.14 V/yd (10 V/m) 3 conforming to IEC 61000-4-3
Resistance to fast transients: 2 kV class 3 serial link conforming to IEC 61000-4-44 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4
Safe separation of circuit: 400 V SELV between the control and auxiliary circuits conforming to IEC 60947-1400 V SELV between the control or auxiliary circuit and the main circuit conforming to IEC 60947-1
Immunity to radio electric fields: 10 V conforming to IEC 61000-4-6
