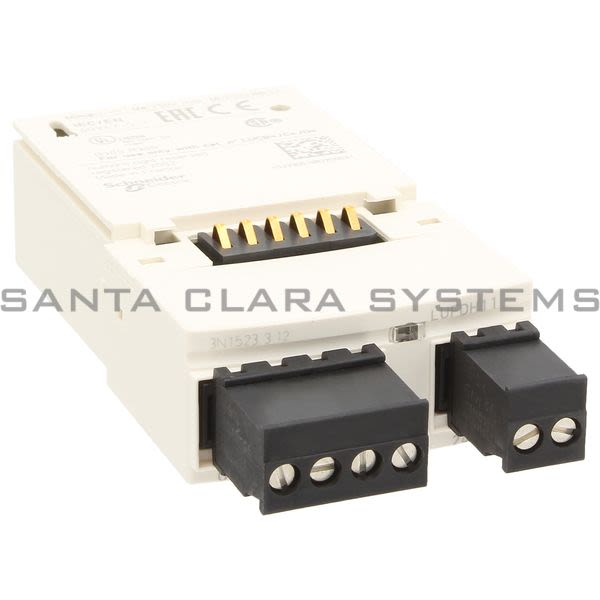

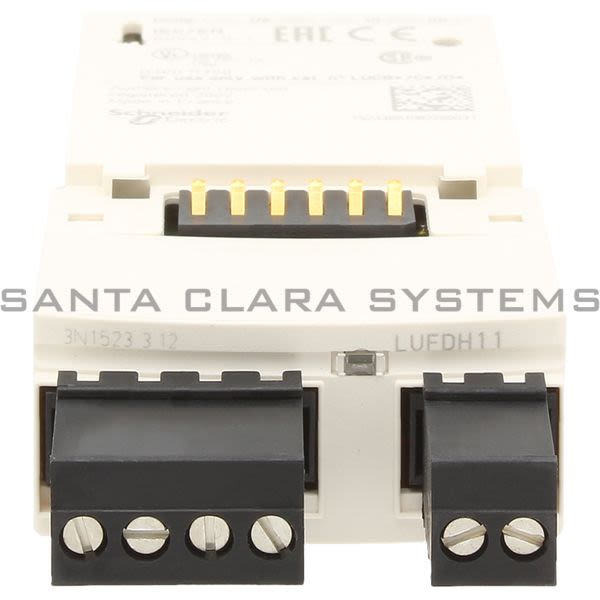

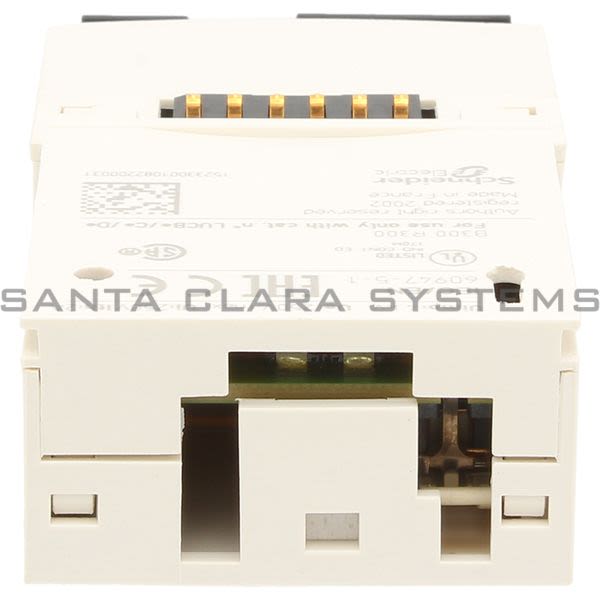

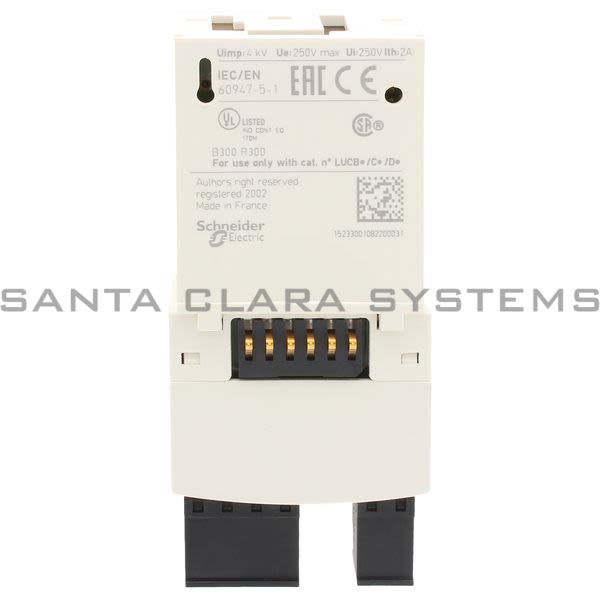

- Description: Motor Starter Function Module
- Device short name: LUF
- Tightening torque: 0.50.6 N.m - with screwdriver 3.5 mm flat
- Connections - terminals: Screw clamp terminals 2 cable(s) 0.21 mm rigid without cable end
- Range: TeSys
- Input type: Remote reset - cable cross section: 0.21.5 mm <500 m - relative impedance: 50 Ohm 52.8 mH - cable capacitance: 0.093 nF
- Mounting mode: Plug-in
- Mounting location: Front side
- Main function available: Thermal overload signalling and manual reset
- Auxiliary contact composition: 1 NO + 1 NC
- Communication of faults: LED front panel
- Current consumption: 7 mA at 24 V DC
- Discrete output function: 1 NO + 1 NC (AC-15) at 230 V - power: 400 VA - electrical service life: 100000 cycles
- Short-circuit protection: 2 A fuse gG conforming to IEC 60947-5-1
- Connection pitch: 5.08 mm
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LUFDH11 . Santa Clara Systems carries 10,300 items from Telemecanique.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
