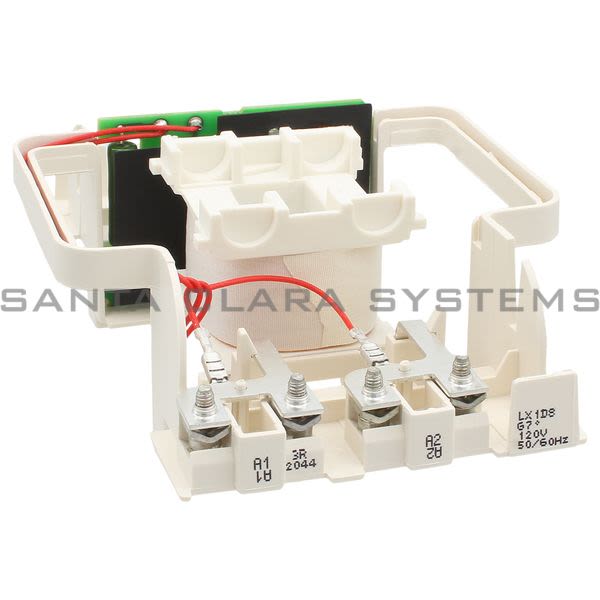

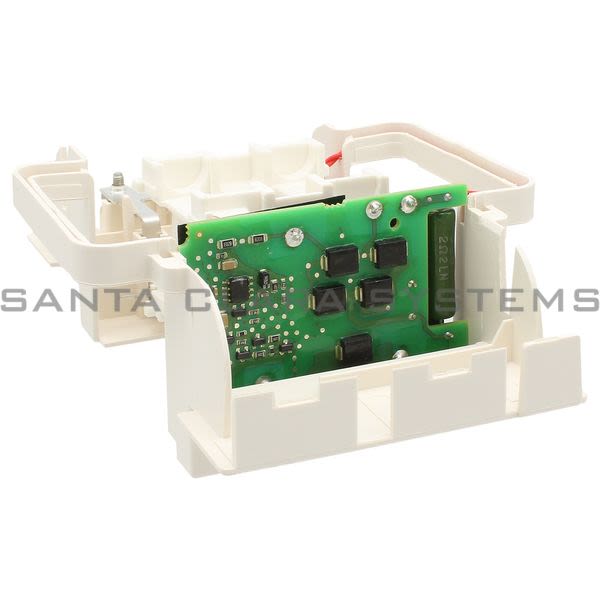

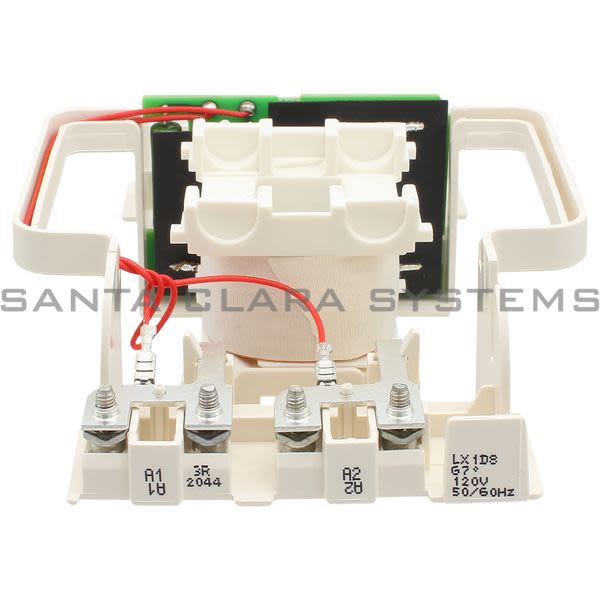

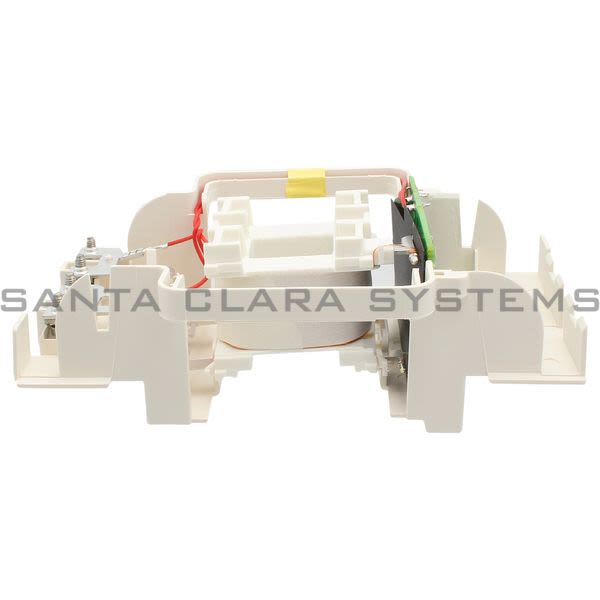

LX1D8G7

Telemecanique - Coil

Product Summary:

Device short name: LX1D8
Mechanical durability: 8 Mcycles
Range: TeSys
Operating rate: 1200 cyc/h at <= 140 °F (60 °C)
[Uc] control circuit voltage: 120 V AC 50/60 Hz

Current response time:

By 5AM PT on Wednesday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Coil
Device short name: LX1D8
Mechanical durability: 8 Mcycles
Range: TeSys
Operating rate: 1200 cyc/h at <= 140 °F (60 °C)
[Uc] control circuit voltage: 120 V AC 50/60 Hz
Control circuit voltage limits: 0.3...0.5 Uc at 131 °F (55 °C) drop-out 50/60 Hz0.8...1.15 Uc at 131 °F (55 °C) operational 50/60 Hz
Control circuit type: AC 50/60 Hz
Coil technology: Without built-in suppressor module

Ambient air temperature for operation: 23...140 °F (-5...60 °C)
Product or component type: Contactor coil
inrush power in VA: 280...350 VA at 68 °F (20 °C) (cos ? 0.9) 60 Hz280...350 VA at 68 °F (20 °C) (cos ? 0.9) 50 Hz
hold-in power consumption in VA: 2...18 VA at 68 °F (20 °C) (cos ? 0.9) 50 Hz2...18 VA at 68 °F (20 °C) (cos ? 0.9) 60 Hz
Heat dissipation: 3...4.5 W at 50/60 Hz
Average resistance: 4377 Ohm at 68 °F (20 °C)
Inductance of closed circuit: 109.69 H
Product compatibility: LC1D115LC1D150
