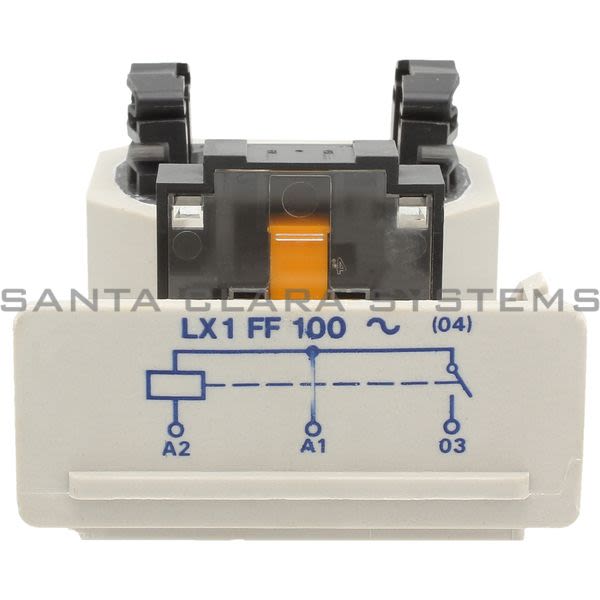

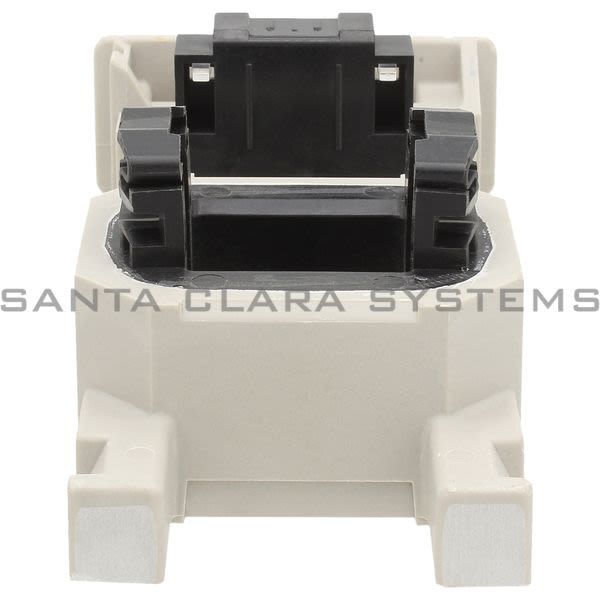

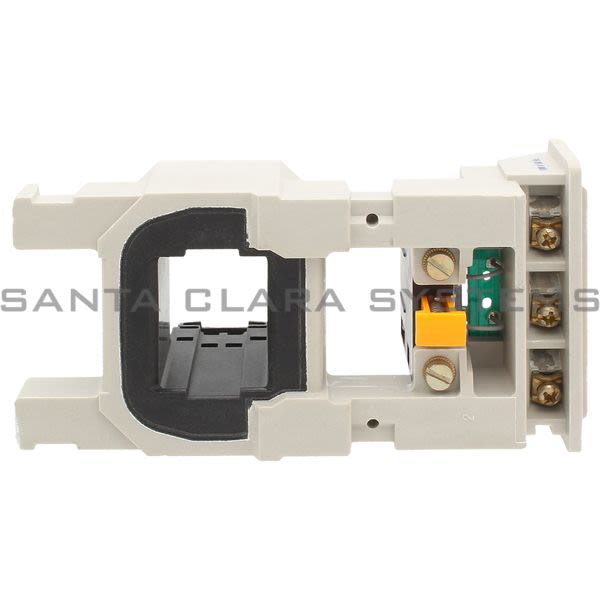

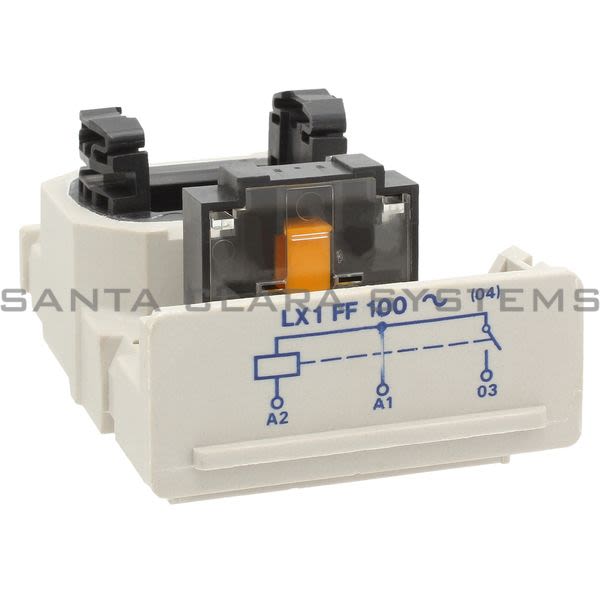

LX1FF100

Telemecanique - Coil

Product Summary:

Product weight: 0.95 lb(US) (0.43 kg)
Device short name: LX1FF
Mechanical durability: 10 Mcycles
Range: TeSys
Operating rate: <= 2400 cyc/h at <= 55 °C

Current response time:

By 5AM PT on Wednesday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Coil
Product weight: 0.95 lb(US) (0.43 kg)
Device short name: LX1FF
Mechanical durability: 10 Mcycles
Range: TeSys
Operating rate: <= 2400 cyc/h at <= 55 °C
[Uc] control circuit voltage: 120 V AC 60 Hz
Control circuit voltage limits: 0.35...0.55 Uc at 131 °F (55 °C) drop-out 50/60 Hz0.85...1.1 Uc at 131 °F (55 °C) operational 50/60 Hz
Operating time: 23...35 ms closing5...15 ms opening
Control circuit type: AC 50 Hz

Coil technology: Without built-in suppressor module
Ambient air temperature for operation: > 23...131 °F (> -5...55 °C)
Product or component type: Contactor coil
inrush power in VA: 550 VA at 68 °F (20 °C) (cos ? 0.3) 50 Hz
Range compatibility: TeSys F LC1F contactor
hold-in power consumption in VA: 45 VA at 68 °F (20 °C) (cos ? 0.3) 50 Hz
Product compatibility: LC1F115LC1F150
Heat dissipation: 12...16 W at 50 Hz
Average resistance: 0.27 Ohm at 68 °F (20 °C)
Inductance of closed circuit: 0.04 H

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LX1FF100 . Santa Clara Systems carries 10,643 items from Telemecanique.
