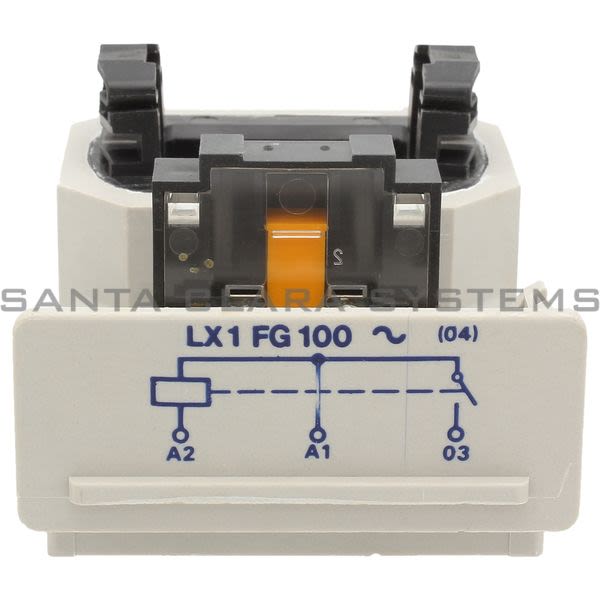

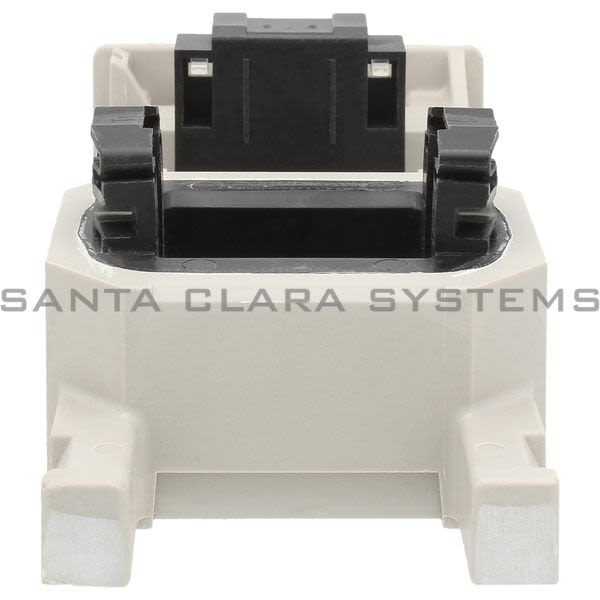

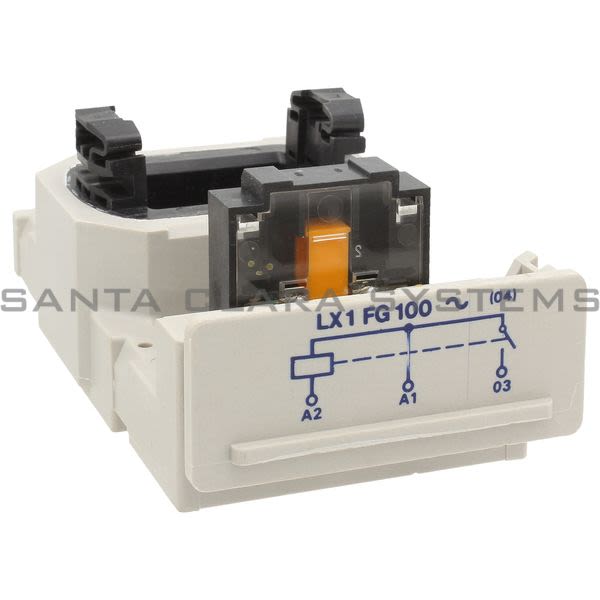

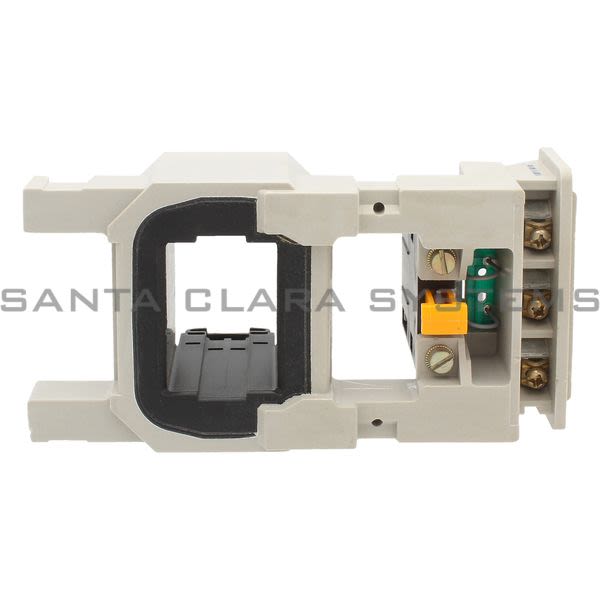

LX1FG100

Telemecanique - Coil

Product Summary:

Product weight: 1.21 lb(US) (0.55 kg)
Device short name: LX1FG
Mechanical durability: 10 Mcycles
Range: TeSys
Operating rate: <= 2400 cyc/h at <= 55 °C

Current response time:

16 Minutes 1 Second

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Coil
Product weight: 1.21 lb(US) (0.55 kg)
Device short name: LX1FG
Mechanical durability: 10 Mcycles
Range: TeSys
Operating rate: <= 2400 cyc/h at <= 55 °C
[Uc] control circuit voltage: 100 V AC 50 Hz
Control circuit voltage limits: 0.35...0.55 Uc at 131 °F (55 °C) drop-out 50/60 Hz0.85...1.1 Uc at 131 °F (55 °C) operational 50/60 Hz
Operating time: 20...35 ms closing7...15 ms opening
Control circuit type: AC 50 Hz

Coil technology: Without built-in suppressor module
Ambient air temperature for operation: > 23...131 °F (> -5...55 °C)
Product or component type: Contactor coil
inrush power in VA: 805 VA at 68 °F (20 °C) (cos ? 0.3) 50 Hz
Range compatibility: TeSys F LC1F contactor
hold-in power consumption in VA: 55 VA at 68 °F (20 °C) (cos ? 0.3) 50 Hz
Product compatibility: LC1F185LC1F225
Heat dissipation: 18...24 W at 50 Hz
Average resistance: 0.18 Ohm at 68 °F (20 °C)
Inductance of closed circuit: 0.03 H
