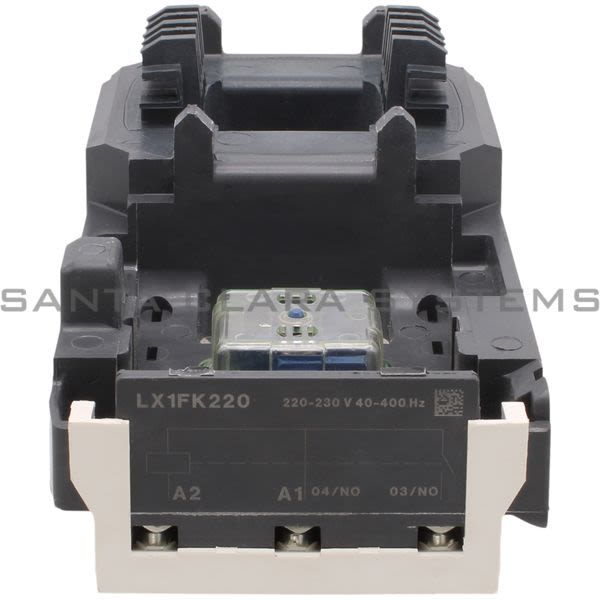

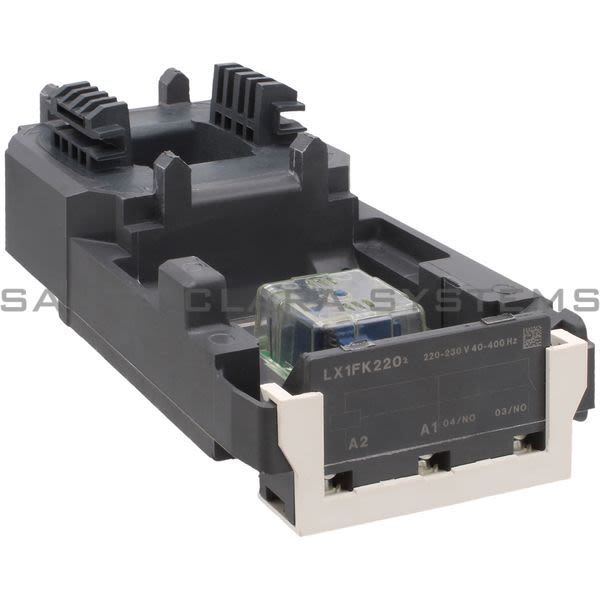

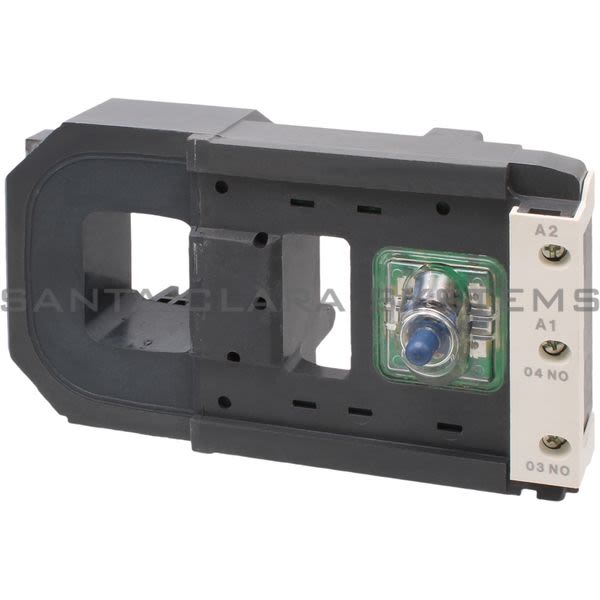

LX1FK220

Telemecanique - Coil

Product Summary:

Product weight: 2.54 lb(US) (1.15 kg)
Device short name: LX1FK
Mechanical durability: 10 Mcycles
Range: TeSys
Operating rate: <= 2400 cyc/h at <= 55 °C

Current response time:

By 5AM PT on Wednesday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Coil
Product weight: 2.54 lb(US) (1.15 kg)
Device short name: LX1FK
Mechanical durability: 10 Mcycles
Range: TeSys
Operating rate: <= 2400 cyc/h at <= 55 °C
[Uc] control circuit voltage: 220...230 V AC 40...400 Hz
Control circuit voltage limits: 0.85...1.1 Uc at 131 °F (55 °C) operational 40...400 Hz0.3...0.5 Uc at 131 °F (55 °C) drop-out 40...400 Hz
Operating time: 40...75 ms closing100...170 ms opening
Control circuit type: AC 40...400 Hz

Coil technology: Without built-in suppressor module
Ambient air temperature for operation: > 23...131 °F (> -5...55 °C)
Product or component type: Contactor coil
inrush power in VA: 1100 VA at 68 °F (20 °C) (cos ? 0.9) 40...400 Hz
Range compatibility: TeSys F LC1F contactor
hold-in power consumption in VA: 18 VA at 68 °F (20 °C) (cos ? 0.3) 40...400 Hz
Product compatibility: LC1F500
Heat dissipation: 18 W at 40...400 Hz
Average resistance: 35.5 Ohm inrush at 68 °F (20 °C)915 Ohm holding at 68 °F (20 °C)
Inductance of closed circuit: 4.55 H
