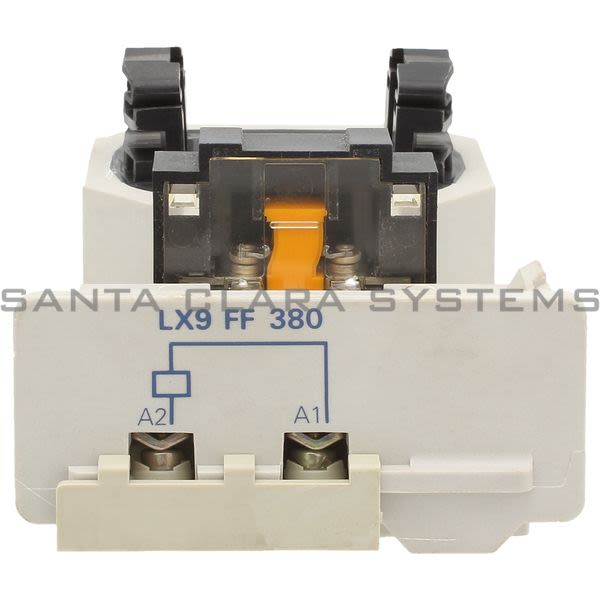

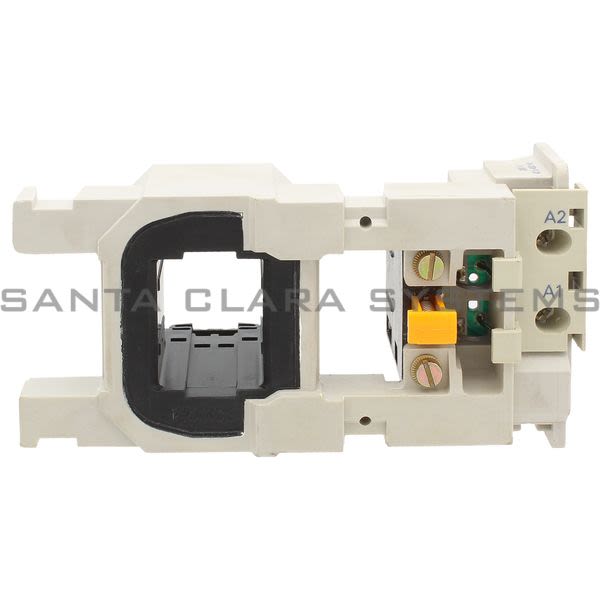

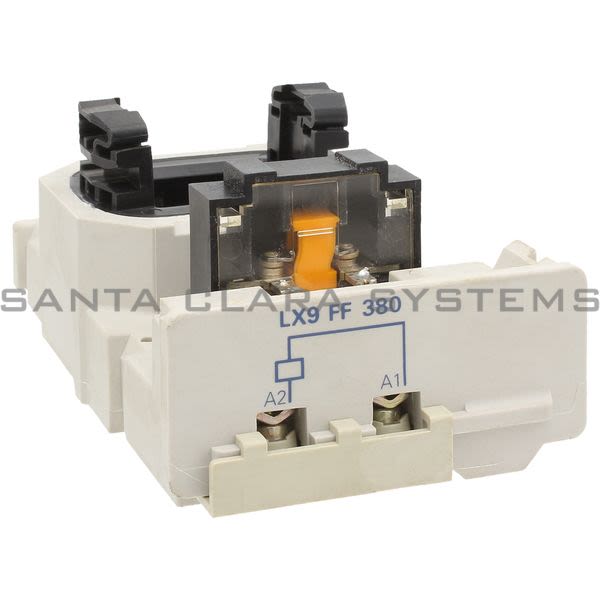

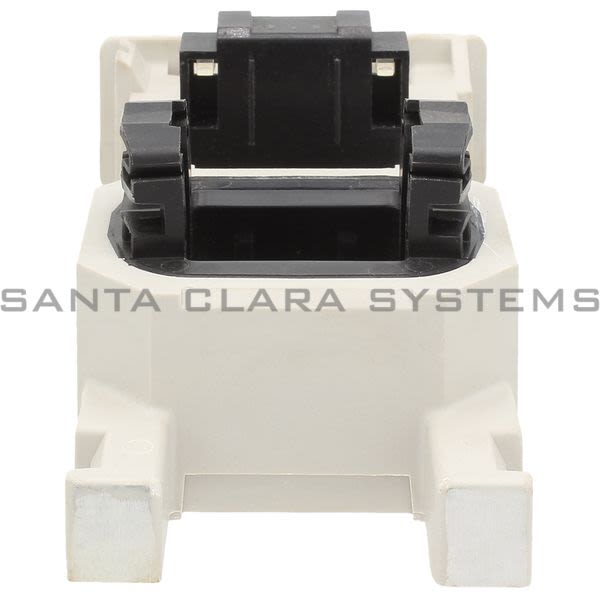

LX9FF380

Telemecanique - TeSys F - specific contactor coil - 380...400V AC 40...400 Hz low consumption

Product Summary:

Product weight: 2.38 lb(US) (1.08 kg)
Device short name: LX4FK
Mechanical durability: 10 Mcycles
Range: TeSys
Operating rate: <= 2400 cyc/h at <= 55 °C

Current response time:

13 Minutes 54 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys F - specific contactor coil - 380...400V AC 40...400 Hz low consumption
Product weight: 2.38 lb(US) (1.08 kg)
Device short name: LX4FK
Mechanical durability: 10 Mcycles
Range: TeSys
Operating rate: <= 2400 cyc/h at <= 55 °C
[Uc] control circuit voltage: 220 V DC
Control circuit voltage limits: 0.2...0.35 Uc at 131 °F (55 °C) drop-out0.85...1.1 Uc at 131 °F (55 °C) operational
Operating time: 45...60 ms opening50...60 ms closing
Control circuit type: DC low consumption

Coil technology: Without built-in suppressor module
Ambient air temperature for operation: > 23...131 °F (> -5...55 °C)
Product or component type: Contactor coil
inrush power in W: 1100 W at 68 °F (20 °C)
Range compatibility: TeSys F LC1F contactor
hold-in power consumption in W: 6 W at 68 °F (20 °C)
Product compatibility: LC1F500
Average resistance: 44 Ohm inrush at 68 °F (20 °C)8150 Ohm holding at 68 °F (20 °C)
Inductance of closed circuit: 1080 H
