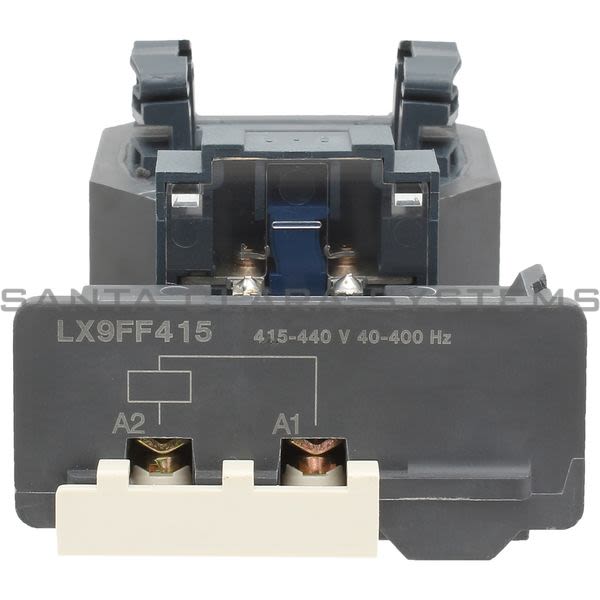

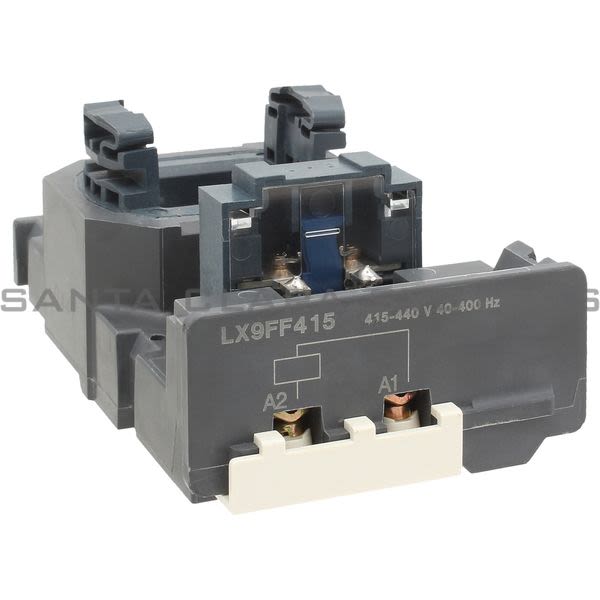

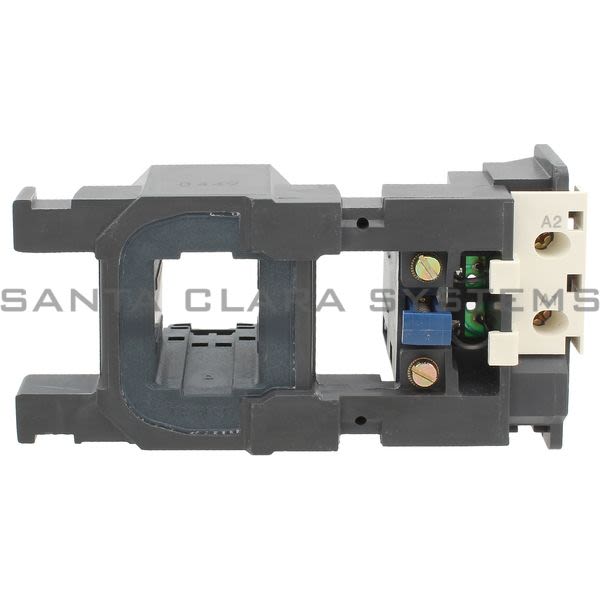

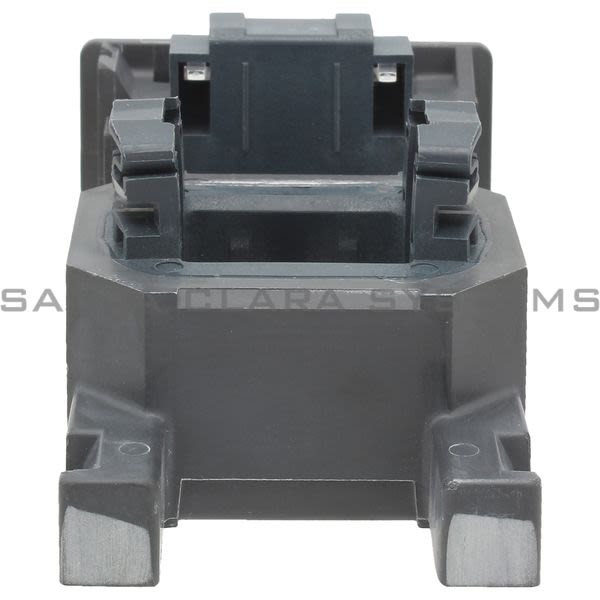

LX9FF415

Telemecanique - TeSys F - specific contactor coil - 415...440V AC 40...400 Hz low consumption

Product Summary:

Product weight: 0.95 lb(US) (0.43 kg)
Device short name: LX9FF
Mechanical durability: 10 Mcycles
Range: TeSys
Operating rate: <= 2400 cyc/h at <= 55 °C

Current response time:

13 Minutes 22 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys F - specific contactor coil - 415...440V AC 40...400 Hz low consumption
Product weight: 0.95 lb(US) (0.43 kg)
Device short name: LX9FF
Mechanical durability: 10 Mcycles
Range: TeSys
Operating rate: <= 2400 cyc/h at <= 55 °C
[Uc] control circuit voltage: 415...440 V AC 40...400 Hz
Control circuit voltage limits: 0.35...0.55 Uc at 131 °F (55 °C) drop-out0.85...1.1 Uc at 131 °F (55 °C) operational
Operating time: 130 ms opening35 ms closing
Control circuit type: AC 40...400 Hz low consumption

Coil technology: Without built-in suppressor module
Ambient air temperature for operation: > 23...131 °F (> -5...55 °C)
Product or component type: Specific contactor coil
inrush power in VA: 690...855 VA at 68 °F (20 °C) 40...400 Hz
Range compatibility: TeSys F LC1F contactor
hold-in power consumption in VA: 6.6...8.1 VA at 68 °F (20 °C) 40...400 Hz
Product compatibility: LC1F150LC1F115
Heat dissipation: 5.9...7.2 W
Average resistance: 218 Ohm inrush at 68 °F (20 °C)8460 Ohm holding at 68 °F (20 °C)
Inductance of closed circuit: 30 H
