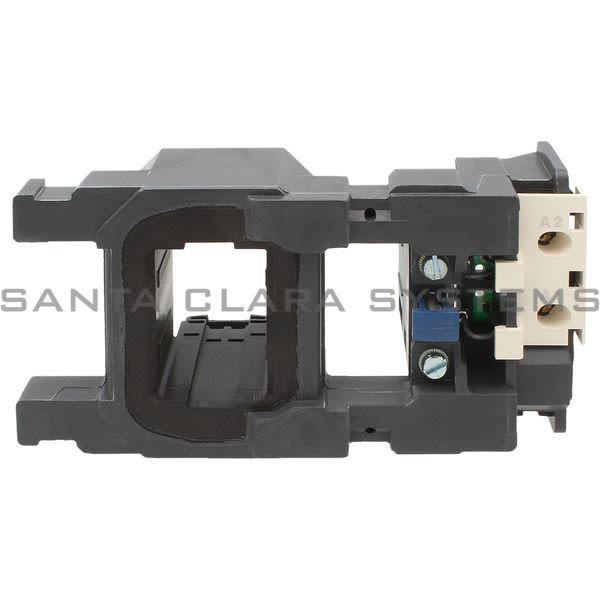

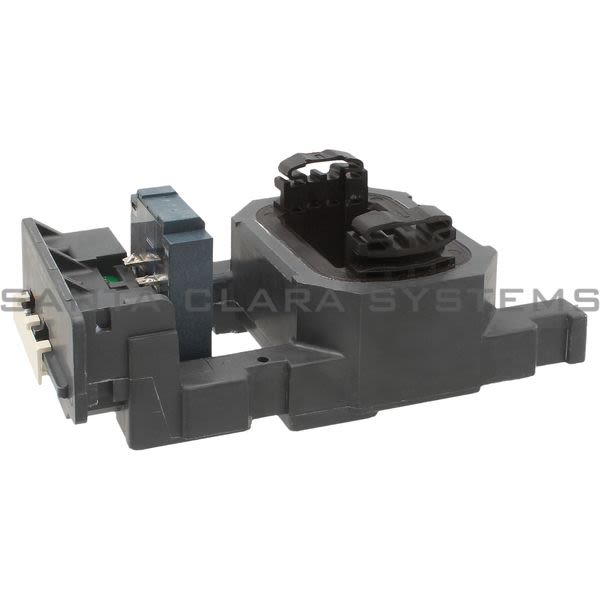

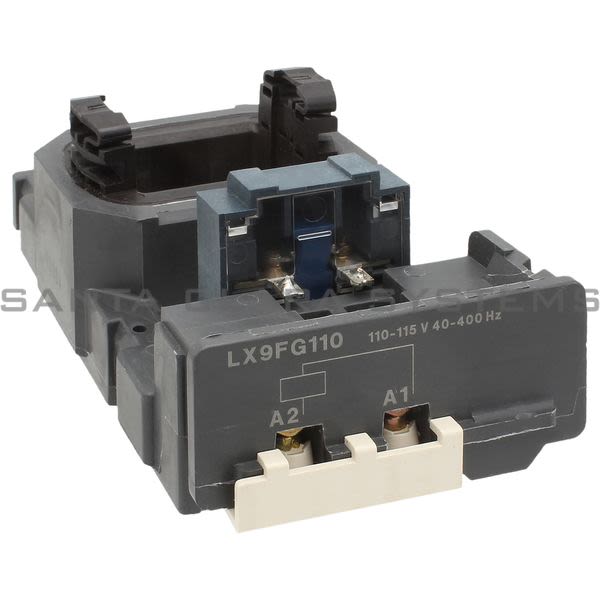

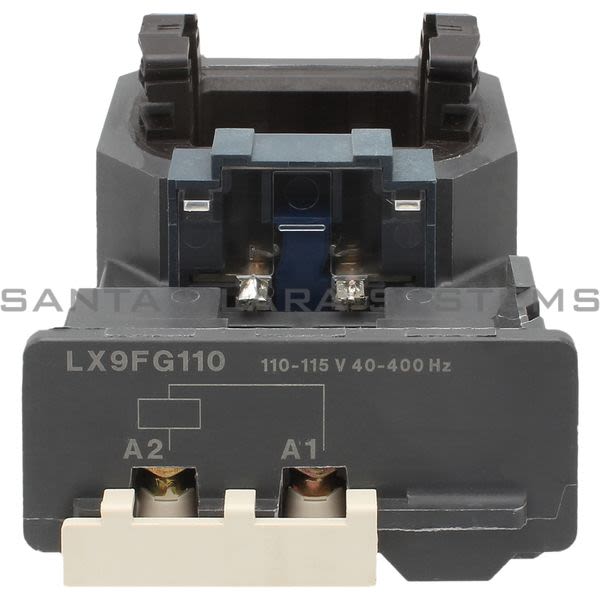

- Description: TeSys F - specific contactor coil - 110...115 V AC 40...400 Hz low consumption
- Mechanical durability: 10 Mcycles
- Range: TeSys
- [Uc] control circuit voltage: 110...115 V AC 40...400 Hz
- Operating time: 130 ms opening
- Product or component type: Specific contactor coil
- Average resistance: 10.4 Ohm inrush at 20 °C
- Inductance of closed circuit: 1.46 H
- Maximum operating rate: 2400 cyc/h 55 °C
- Coil technology: Without built-in suppressor module
- inrush power in VA: 950…1180 VA 40...400 Hz (at 20 °C)
- hold-in power consumption in VA: 8.9…10.9 VA 40...400 Hz (at 20 °C)
- Heat dissipation: 8…9.8 W
- Ambient air temperature for operation: -5…55 °C
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LX9FG110 . Santa Clara Systems carries 10,460 items from Telemecanique.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
