LX9FK925

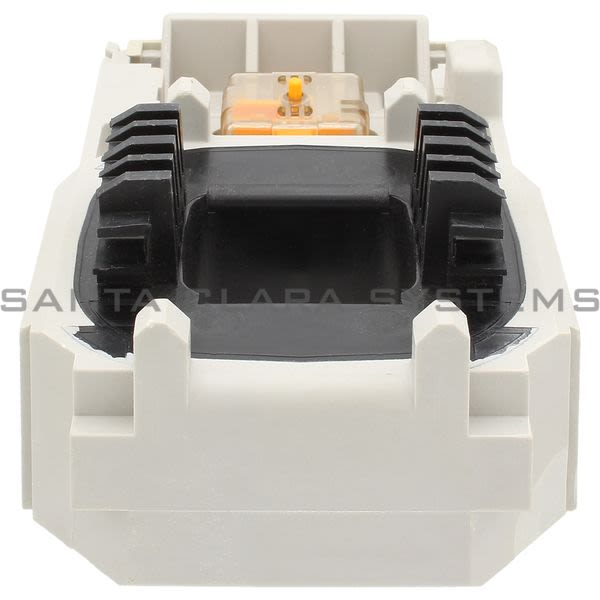

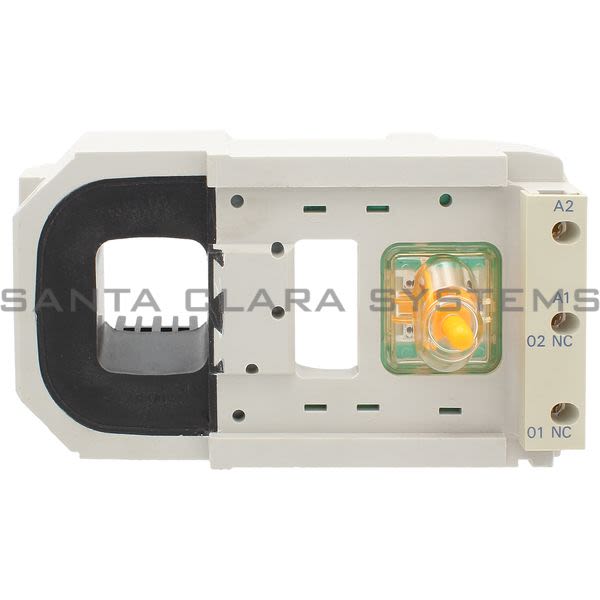

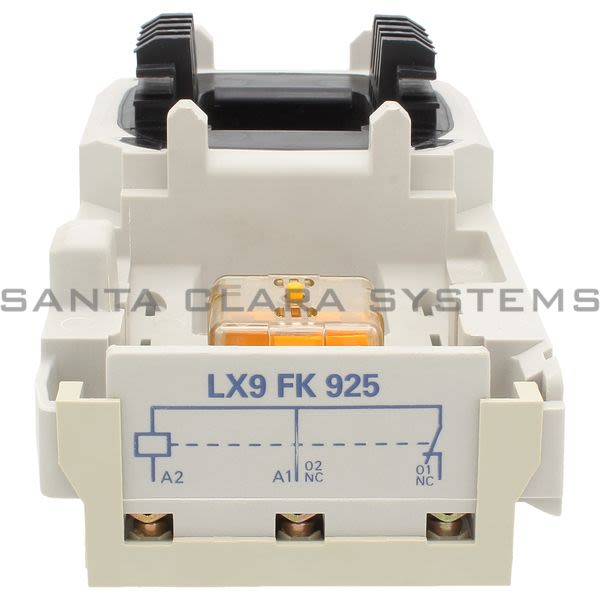

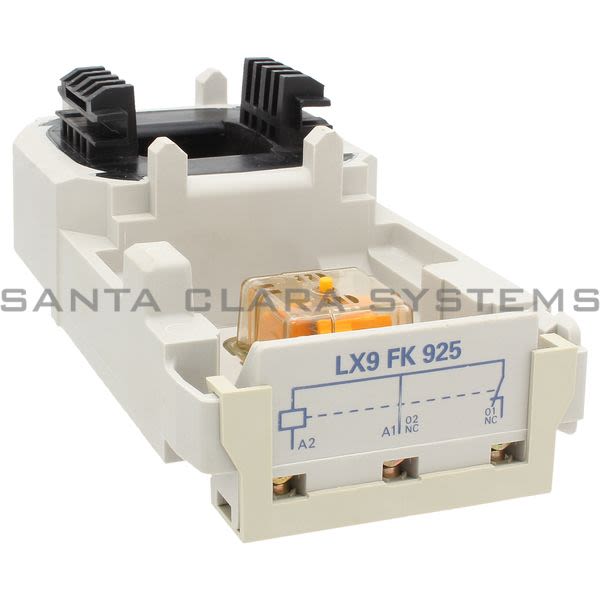

Telemecanique - TeSys F - specific contactor coil - 110 V AC 40...400 Hz low consumption

Product Summary:

Product weight: 2.38 lb(US) (1.08 kg)
Device short name: LX9FK
Mechanical durability: 10 Mcycles
Range: TeSys
Operating rate: <= 3600 cyc/h at <= 70 °C

Current response time:

7 Minutes 43 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys F - specific contactor coil - 110 V AC 40...400 Hz low consumption
Product weight: 2.38 lb(US) (1.08 kg)
Device short name: LX9FK
Mechanical durability: 10 Mcycles
Range: TeSys
Operating rate: <= 3600 cyc/h at <= 70 °C
[Uc] control circuit voltage: 110 V AC 40...400 Hz110 V DC
Control circuit voltage limits: 0.3...0.5 Uc at 131 °F (55 °C) drop-out0.85...1.1 Uc at 131 °F (55 °C) operational
Operating time: 60 ms opening50 ms closing
Control circuit type: AC 40...400 Hz low consumption

Coil technology: Without built-in suppressor module
Ambient air temperature for operation: > 23...131 °F (> -5...55 °C)
Product or component type: Specific contactor coil
inrush power in VA: 550 VA at 68 °F (20 °C) 40...400 Hz
Range compatibility: TeSys F LC1F contactorTeSys F DR5TE rectifier
hold-in power consumption in VA: 31 VA at 68 °F (20 °C) 40...400 Hz
Product compatibility: LC1F500DR5TE
Heat dissipation: 15...18.3 W
Average resistance: 24 Ohm inrush at 68 °F (20 °C)204 Ohm holding at 68 °F (20 °C)
Inductance of closed circuit: 1.1 H
