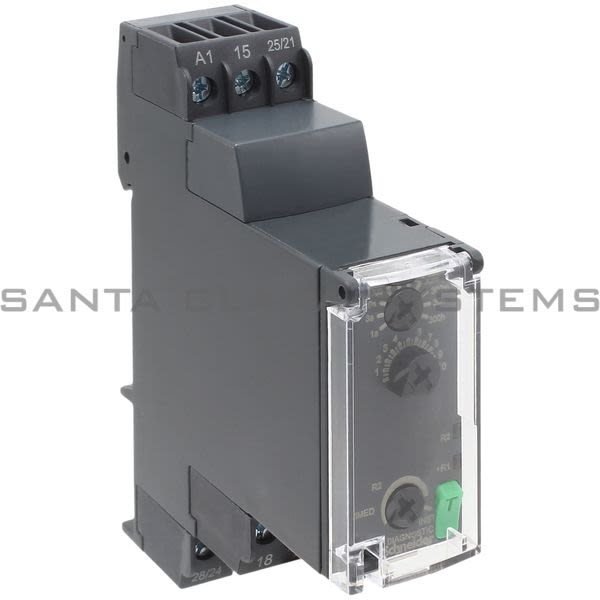

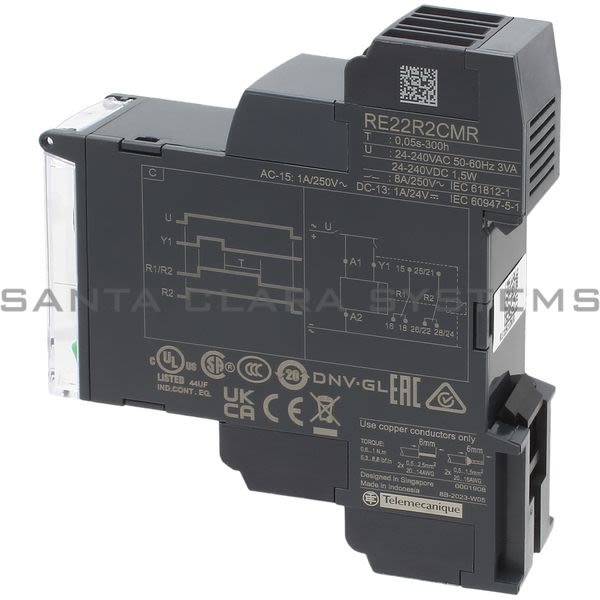

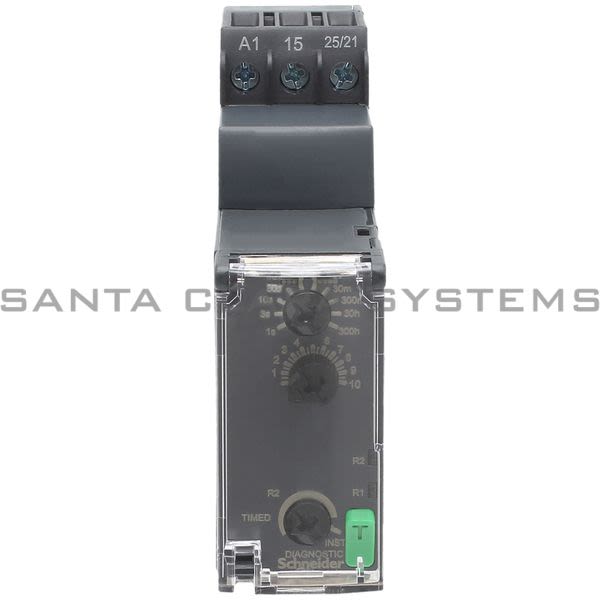

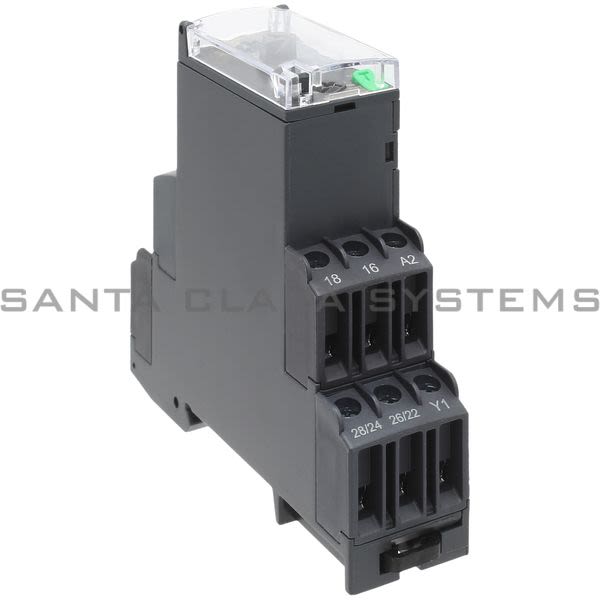

Telemecanique RE22R2CMR Off-delay Timing Relay - 0.05s?300h - 24?240V AC/DC - 2C/O Product Image

RE22R2CMR

Telemecanique - Off-delay Timing Relay - 0.05s?300h - 24?240V AC/DC - 2C/O

Current response time:

By 5AM PT on Friday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Off-delay Timing Relay - 0.05s?300h - 24?240V AC/DC - 2C/O
Product weight: 0.23 lb(US) (0.105 kg)
Range of product: Zelio Time
IP degree of protection: IP20(terminals) conforming to IEC 60529, IP40 (housing) conforming to IEC 60529, IP50 (front panel) conforming to IEC 60529
Standards: IEC 61812-1, UL 508
Device short name: RE22
Width: 0.89 in (22.5 mm)
[Uimp] rated impulse withstand voltage: 5 kV 1.2...50 s conforming to IEC 60664-1
Mechanical durability: 10000000 cycles
Tightening torque: 5.31...8.85 lbf.in (0.6...1 N.m) conforming to IEC 60947-1
Connections - terminals: Screw terminals : 1 x 0.5...1 x 3.3 mm, AWG 20...AWG 12 solid cable without cable end, Screw terminals : 2 x 0.5...2 x 2.5 mm, AWG 20...AWG 14 solid cable without cable end, Screw terminals : 1 x 0.2...1 x 2.5 mm, AWG 24...AWG 14 flexible cable with cable end, Screw terminals : 2 x 0.2...2 x 1.5 mm, AWG 24...AWG 16 flexible cable with cable end
Mounting support: 35 mm DIN rail conforming to EN/IEC 60715
Vibration resistance: 20 m/s (f = 10...150 Hz) conforming to IEC 60068-2-6
Shock resistance: 15 gn (not operating) (duration = 11 ms) conforming to IEC 60068-2-27, 5 gn (in operation) (duration = 11 ms) conforming to IEC 60068-2-27
Electrical durability: 100000 cycles for 8 A at 250 V AC-1, 100000 cycles for 2 A at 24 V DC-1
Insulation resistance: 100 MOhm at 500 V DC conforming to IEC 60664-1
[Us] rated supply voltage: 24...240 V AC/DC at 50/60 Hz
Overvoltage category: III conforming to IEC 60664-1
Relative humidity: 95 % at 25...55 C
Control type: Rotary knob, Diagnostic button
Mounting position: Any position
Input voltage: <= 2.4 V
Housing material: Self-extinguishing
Contacts type and composition: 1 C/O timed or instantaneous contact, cadmium free, 2 C/O timed contact, cadmium free
Dielectric strength: 2.5 kV for 1 mA/1 minute at 50 Hz between relay output and power supply with basic insulation conforming to IEC 61812-1
Product or component type: Modular timing relay
Time delay type: C
Discrete output type: Relay

Time delay range: 30...300 h, 3...30 min, 0.3...3 s, 3...30 s, 0.05...1 s, 3...30 h, 30...300 s, 1...10 s, 10...100 s, 30...300 min
Directives: 2006/95/EC - low voltage directive, 2004/108/EC - electromagnetic compatibility
Product certifications: EAC, UL, GL, CSA, CE, China RoHS, CCC, RCM
Nominal output current: 8:00 AM
Ambient air temperature for operation: -4...140 F (-20...60 C)
Ambient air temperature for storage: -40...158 F (-40...70 C)
Voltage range: 0.85...1.1 Us
Supply frequency: 50...60 Hz (+/- 5 %)
Pollution degree: 3 conforming to IEC 60664-1
Repeat accuracy: +/- 0.5 % conforming to IEC 61812-1
Electromagnetic compatibility: Fast transients immunity test (test level: 1 kV, level 3 - capacitive connecting clip) conforming to IEC 61000-4-4, Surge immunity test (test level: 1 kV, level 3 - differential mode) conforming to IEC 61000-4-5, Surge immunity test (test level: 2 kV, level 3 - common mode) conforming to IEC 61000-4-5, Electrostatic discharge (test level: 6 kV, level 3 - contact discharge) conforming to IEC 61000-4-2, Electrostatic discharge (test level: 8 kV, level 3 - air discharge) conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test (test level: 10 V/m, level 3 - 80 MHz...1 GHz) conforming to IEC 61000-4-3, Conducted RF disturbances (test level: 10 V, level 3 - 0.15...80 MHz) conforming to IEC 61000-4-6, Fast transient bursts (test level: 2 kV, level 3 - direct contact) conforming to IEC 61000-4-4, Immunity to micro breaks and voltage drops (test level: 30 % - 500 ms) conforming to IEC 61000-4-11, Immunity to micro breaks and voltage drops (test level: 100 % - 20 ms) conforming to IEC 61000-4-11
Temperature drift: +/- 0.05 %/C
Voltage drift: +/- 0.2 %/V
Setting accuracy of time delay: +/- 10 % of full scale at 25 C conforming to IEC 61812-1
Minimum pulse duration: 100 ms (with load in parallel), 30 ms
Reset time: 120 ms (on de-energisation)
Immunity to micro breaks: <= 10 ms
power consumption in VA: 3 VA at 240 V AC
power consumption in W: 1.5 W at 240 V
switching capacity in VA: 2000 VA
Minimum switching current: 10 mA 5 V DC
Maximum switching current: 8:00 AM
Maximum switching voltage: 250 V AC
Delay response: < 100 ms
Creepage distance: 4 kV/3 conforming to IEC 60664-1
Safety reliability data: MTTFd = 251.1 years, B10d = 230000
status LED: Green LED backlight (steady) dial pointer indication, Yellow LED (steady) output relay energized, Yellow LED (fast flashing) timing in progress and output relay de-energized, Yellow LED (slow flashing) timing in progress and output relay energized
