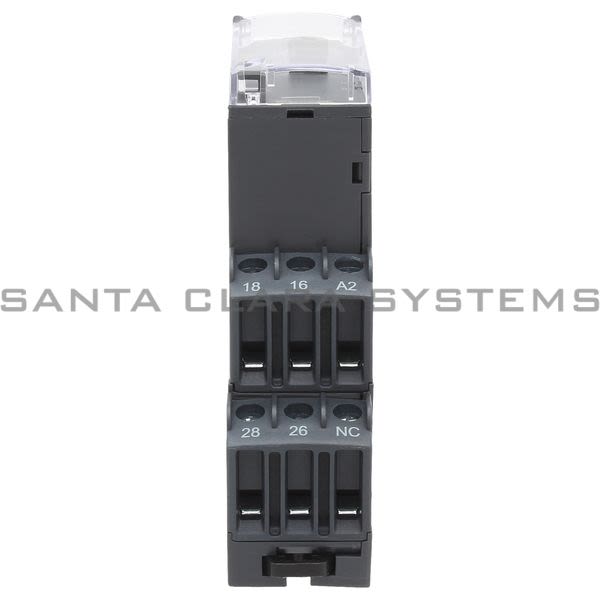

- Description: Timing Relay
- IP degree of protection: IP40 housing: conforming to IEC 60529
- Standards: IEC 61812-1
- Device short name: RE22
- Width: 22.5 mm
- Mechanical durability: 10000000 cycles
- Tightening torque: 0.61 N.m conforming to IEC 60947-1
- Connections - terminals: Screw terminals, 1 x 0.5...1 x 3.3 mm (AWG 20...AWG 12) solid without cable end
- Mounting support: 35 mm DIN rail conforming to EN/IEC 60715
- Vibration resistance: 20 m/s (f= 10150 Hz) conforming to IEC 60068-2-6
- Shock resistance: 15 gn not operating for 11 ms conforming to IEC 60068-2-27
- Insulation resistance: 100 MOhm at 500 V DC conforming to IEC 60664-1
- [Us] rated supply voltage: 24...240 V AC/DC 50/60 Hz
- Overvoltage category: III conforming to IEC 60664-1
- Relative humidity: 95 % at 2555 C
- Control type: Rotary knob
- Mounting position: Any position
- Housing material: Self-extinguishing
- Product or component type: Modular timing relay
- Discrete output type: Relay
- Nominal output current: 0.208333333333333
- Contacts type and composition: 2 C/O timed contact, cadmium free
- Time delay type: K
- Time delay range: 10...100 s
- Release input voltage: <= 2.4 V
- Voltage range: 0.85...1.1 Us
- Supply frequency: 50...60 Hz +/- 5 %
- Recovery time: 100 ms on de-energisation
- power consumption in VA: 3 VA at 240 V AC
- power consumption in W: 2 W at 240 V DC
- Minimum switching current: 10 mA at 5 V DC
- Maximum switching current: 0.208333333333333
- Maximum switching voltage: 250 V AC
- Rated impulse withstand voltage: 5 kV for 1.250 s conforming to IEC 60664-1
- Power on delay: 200 ms
- Creepage distance: 4 kV/3 conforming to IEC 60664-1
- status LED: LED backlight green (steady) for dial pointer indication
- Net weight: 0.1 kg
- Dielectric strength: 2.5 kV for 1 mA/1 minute at 50 Hz between relay output and power supply with basic insulation conforming to IEC 61812-1
- Directives: 2006/95/EC - low voltage directive
- Ambient air temperature for operation: -2060 C
- Ambient air temperature for storage: -4070 C
- Pollution degree: 3 conforming to IEC 60664-1
- RoHS exemption information: Yes
- Circularity Profile: End of Life Information
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on RE22R2KMR . Santa Clara Systems carries 10,300 items from Telemecanique.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
