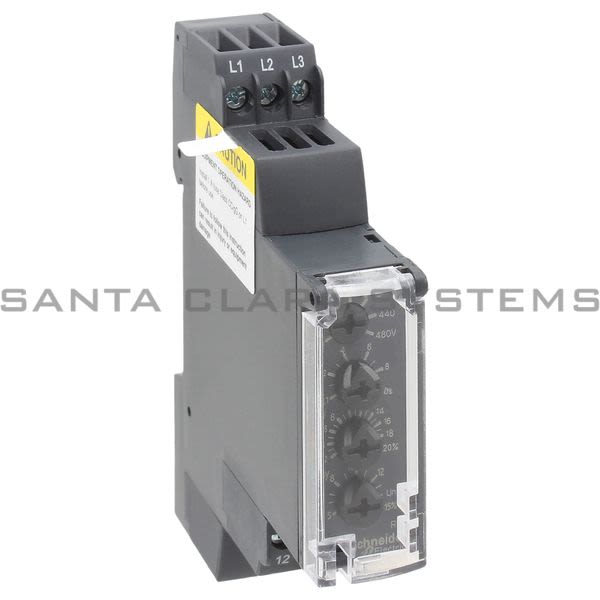

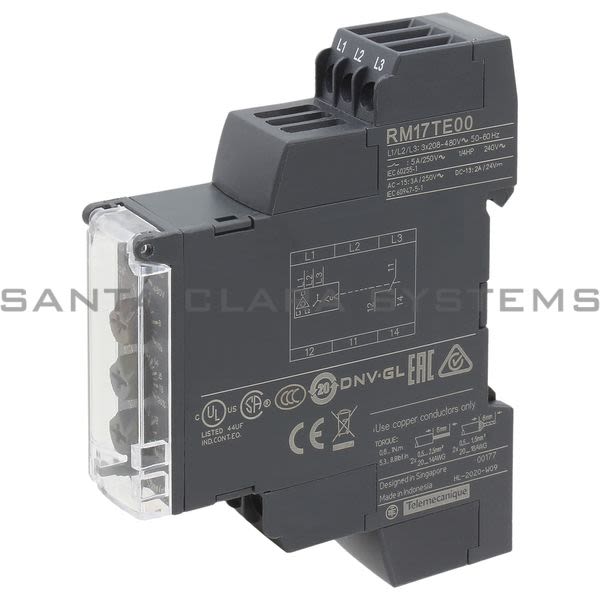

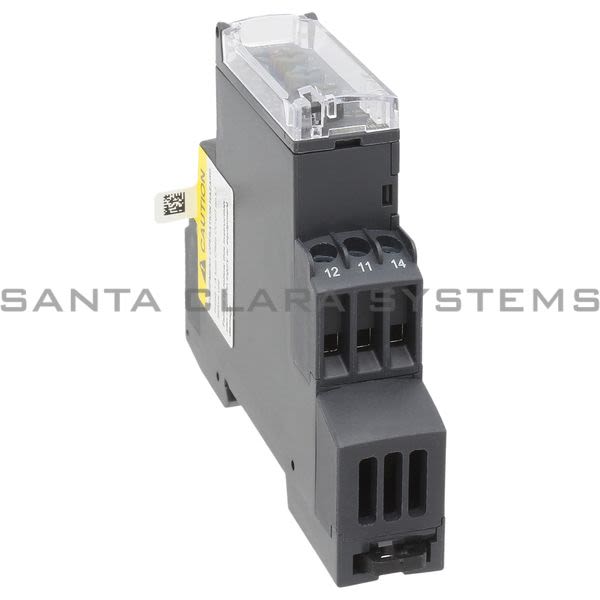

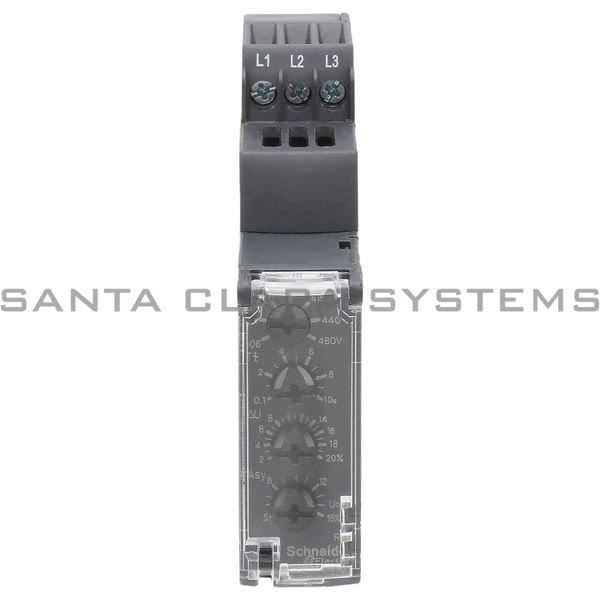

RM17TE00

Telemecanique - multifunction control relay RM17-TE - range 183..528 V AC

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: multifunction control relay RM17-TE - range 183..528 V AC
Product weight: 0.29 lb(US) (0.13 kg)
Range of product: Zelio Control
IP degree of protection: IP20(terminals) conforming to IEC 60529, IP30 (casing) conforming to IEC 60529
Standards: EN/IEC 60255-1
Width: 0.69 in (17.5 mm)
[Ui] rated insulation voltage: 400 V conforming to IEC 60664-1
Mechanical durability: <= 30000000 cycles
Tightening torque: 5.31...8.85 lbf.in (0.6...1 N.m) conforming to IEC 60947-1
Connections - terminals: Screw terminals 1 x 0.5...1 x 4 mm - AWG 20...AWG 11, solid cable without cable end, Screw terminals 2 x 0.5...2 x 2.5 mm - AWG 20...AWG 14, solid cable without cable end, Screw terminals 1 x 0.2...1 x 2.5 mm - AWG 24...AWG 12, flexible cable with cable end, Screw terminals 2 x 0.2...2 x 1.5 mm - AWG 24...AWG 16, flexible cable with cable end
Mounting support: 35 mm symmetrical DIN rail conforming to EN/IEC 60715
Operating rate: <= 360 operations/hour under full load
Vibration resistance: 0.35 mm (f = 5...57.6 Hz) conforming to IEC 60068-2-6, 1 gn (f = 57.6...150 Hz) conforming to IEC 60255-21-1
Shock resistance: 15 gn 11 ms conforming to IEC 60255-21-1
Electrical durability: 100000 cycles
Insulation resistance: > 500 MOhm at 500 V DC conforming to IEC 60255-5, > 500 MOhm at 500 V DC conforming to IEC 60664-1
Utilization category: AC-12 conforming to IEC 60947-5-1, AC-13 conforming to IEC 60947-5-1, AC-14 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1, DC-12 conforming to IEC 60947-5-1, DC-13 conforming to IEC 60947-5-1
Control circuit voltage limits: - 12 % + 10 % Un
Overvoltage category: III conforming to IEC 60664-1
Relative humidity: 95 % at 131 F (55 C) conforming to IEC 60068-2-30
Response time: < 200 ms in the event of a fault
Housing material: Self-extinguishing plastic
Dielectric test voltage: 2 kV 1 min AC 50 Hz conforming to IEC 60255-5, 2 kV 1 min AC 50 Hz conforming to IEC 60664-1
Reset time: 1500 ms time delay
Electromagnetic compatibility: Emission standard for industrial environments conforming to EN/IEC 61000-6-4, Emission standard for residential, commercial and light-industrial environments conforming to EN/IEC 61000-6-3, Immunity for industrial environments conforming to EN/IEC 61000-6-2
Product or component type: Modular measurement and control relays
Maximum switching voltage: 250 V AC, 250 V DC
Relay type: Multifunction control relay
Minimum switching current: 10 mA at 5 V DC
Product certifications: GL, CSA, UL, C-Tick, GOST
Product specific application: For 3-phase supply

Maximum switching current: 5 A AC, 5 A DC
Directives: 73/23/EEC - low voltage directive, 89/336/EEC - electromagnetic compatibility
Relay name: RM17TE
Supply voltage limits: 183...528 V AC
Ambient air temperature for storage: -40...158 F (-40...70 C)
Relay monitored parameters: Phase failure detection, Asymmetry, Undervoltage and overvoltage in window mode, Phase sequence
Ambient air temperature for operation: -4...122 F (-20...50 C)
Time delay type: Adjustable 0.1...10 s, +/- 10 % of the full scale value
power consumption in VA: 0...22 VA at 400 V AC 50 Hz
switching capacity in VA: 1250 VA
Control circuit frequency: 50...60 Hz +/- 10 %
Measurement range: 208...480 V voltage AC
Output contacts: 1 C/O
Nominal output current: 5:00 AM
Measurement voltage limits: 183...528 V AC
Pollution degree: 3 conforming to IEC 60664-1
Hysteresis: 2%
Run-up delay at power-up: <= 650 ms
Non-dissipating shock wave: 4 kV conforming to IEC 60255-5, 4 kV conforming to IEC 60664-1, 4 kV conforming to IEC 61000-4-5
Measuring cycle: <= 150 ms measurement cycle as true rms value
Threshold adjustment voltage: -2...-17 % in the range 220 V AC, -2...-12 % in the range 208 V AC, +2...+17 % in the range 480 V AC, 2...20 % of Un selected
Voltage range: 208...480 V phase to phase
Adjustment of asymmetry threshold: 5...15 % of Un selected
Repeat accuracy: 0.5 % input and measurement circuit, 3 % time delay
Measurement error: < 0.05 %/C with temperature variation, < 1 % over the whole range with voltage variation
Phase failure sensitivity: 0.7 Un
Marking: CE
Supply frequency: 50/60 Hz +/- 10 %
Operating position: Any position without
Local signaling: LED green power ON, LED yellow relay ON
Safety reliability data: MTTFd = 502.2 years, B10d = 470000
