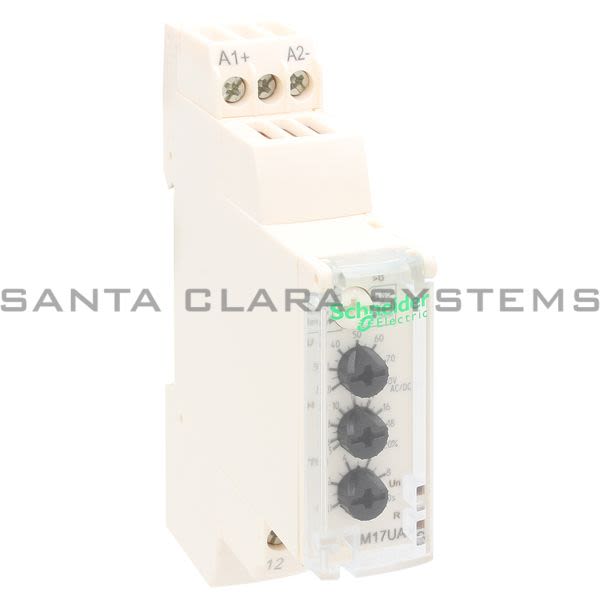

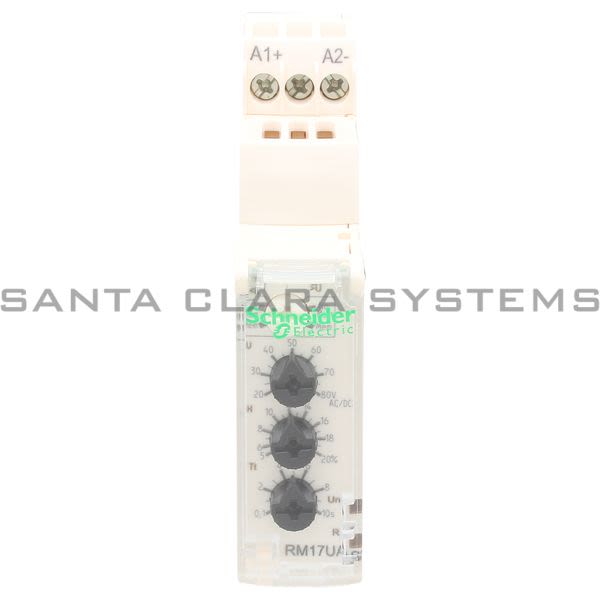

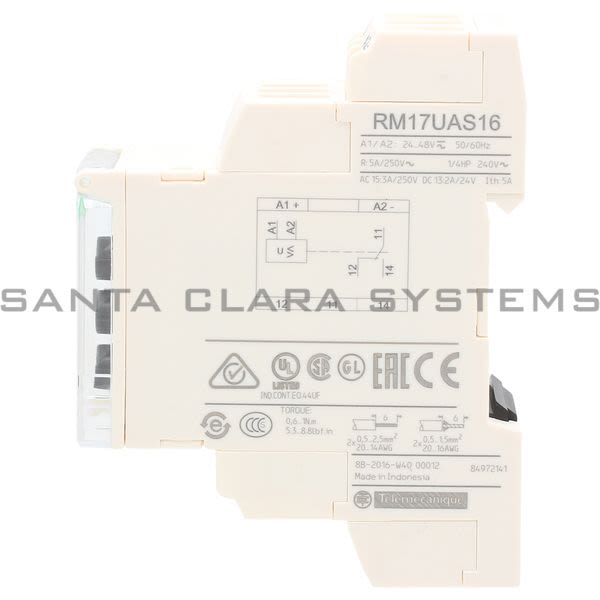

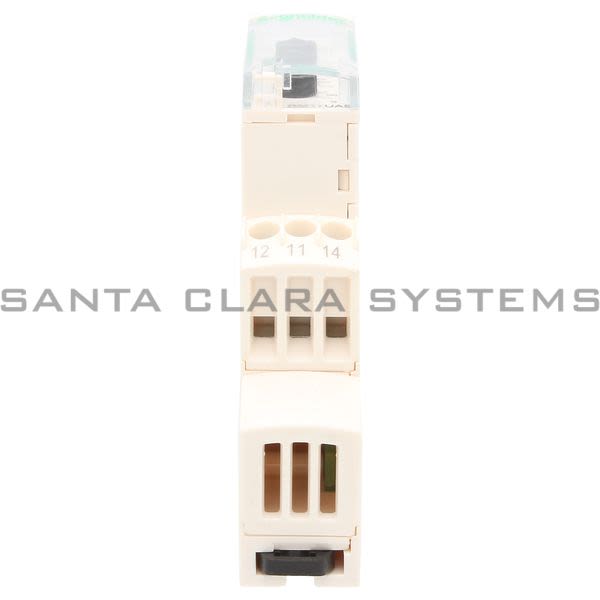

RM17UAS16

Telemecanique - voltage control relay RM17-U - range 20..80 V AC

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: voltage control relay RM17-U - range 20..80 V AC
Product weight: 0.18 lb(US) (0.08 kg)
Range of product: Zelio Control
IP degree of protection: IP20(terminals) conforming to IEC 60529, IP30 (casing) conforming to IEC 60529
Standards: EN/IEC 60255-6
Width: 0.69 in (17.5 mm)
[Ui] rated insulation voltage: 250 V conforming to IEC 60664-1, 400 V conforming to IEC 60664-1
Mechanical durability: <= 30000000 cycles
Tightening torque: 5.31...8.85 lbf.in (0.6...1 N.m) conforming to IEC 60947-1
Connections - terminals: Screw terminals 1 x 0.5...1 x 4 mm - AWG 20...AWG 11, solid cable without cable end, Screw terminals 2 x 0.5...2 x 2.5 mm - AWG 20...AWG 14, solid cable without cable end, Screw terminals 2 x 0.2...2 x 1.5 mm - AWG 24...AWG 16, flexible cable with cable end, Screw terminals 1 x 0.2...2 x 2.5 mm - AWG 24...AWG 12, flexible cable with cable end
Mounting support: 35 mm symmetrical DIN rail conforming to EN/IEC 60715
Operating rate: <= 360 operations/hour under full load
Vibration resistance: 0.35 mm (f = 5...57.6 Hz) conforming to IEC 60068-2-6, 1 gn (f = 57.6...150 Hz) conforming to IEC 60255-21-1
Shock resistance: 5 gn conforming to IEC 60068-2-27
Electrical durability: 100000 cycles
Insulation resistance: > 500 MOhm at 500 V DC conforming to IEC 60255-5, > 500 MOhm at 500 V DC conforming to IEC 60664-1
Utilization category: AC-12 conforming to IEC 60947-5-1, AC-13 conforming to IEC 60947-5-1, AC-14 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1, DC-12 conforming to IEC 60947-5-1, DC-13 conforming to IEC 60947-5-1, DC-14 conforming to IEC 60947-5-1
[Us] rated supply voltage: 24...48 V AC/DC, 50/60 Hz +/- 10 %
Overvoltage category: III conforming to IEC 60664-1
Relative humidity: 95 % at 131 F (55 C) conforming to IEC 60068-2-30
Housing material: Self-extinguishing plastic
Dielectric test voltage: 2 kV AC 50 Hz, 1 min conforming to IEC 60255-5, 2 kV AC 50 Hz, 1 min conforming to IEC 60664-1
Reset time: 1500 ms time delay
Electromagnetic compatibility: Emission standard for industrial environments conforming to EN/IEC 61000-6-4, Emission standard for residential, commercial and light-industrial environments conforming to EN/IEC 61000-6-3, Immunity for industrial environments conforming to NF EN/IEC 61000-6-2
Product or component type: Modular measurement and control relays
Maximum switching voltage: 250 V AC/DC
Relay type: Voltage control relay
Product certifications: UL, C-Tick, GL, GOST, CSA
Product specific application: For single-phase and DC supply

Supply voltage limits: 15...100 V AC/DC
Directives: 89/336/EEC - electromagnetic compatibility, 73/23/EEC - low voltage directive
Relay name: RM17UAS
power consumption in W: <= 1.6 W DC
Ambient air temperature for storage: -40...158 F (-40...70 C)
Relay monitored parameters: Overvoltage or undervoltage detection, Self-powered
Immunity to micro breaks: 20 ms
Ambient air temperature for operation: -4...122 F (-20...50 C)
Time delay type: Adjustable 0.1...10 s, 0 + 10 % on crossing the threshold
Control circuit frequency: 50...60 Hz +/- 10 %
switching capacity in VA: 1250 VA
Output contacts: 1 C/O
Minimum switching current: 10 mA at 5 V DC
Nominal output current: 5:00 AM
Maximum switching current: 5 A AC/DC
Measuring cycle: <= 150 ms measurement cycle as true rms value
power consumption in VA: 0...3.9 VA AC
Hysteresis: 5...20 % of threshold setting
Pollution degree: 3 conforming to IEC 60664-1
Measurement range: 20...80 V voltage AC 50/60 Hz, 20...80 V voltage DC
Run-up delay at power-up: <= 100 ms DC, <= 500 ms AC
Measurement accuracy: +/- 10 % of the full scale value
Non-dissipating shock wave: 4 kV conforming to IEC 60255-5, 4 kV conforming to IEC 60664-1, 4 kV conforming to IEC 61000-4-5
Repeat accuracy: +/- 0.5 % input and measurement circuit, +/- 1 % time delay
Measurement error: < 1 % over the whole range with voltage variation, 0.2 %/C with temperature variation
Polarity: Non reversible polarity on DC supply
Quality labels: CE
Operating position: Any position without derating
Local signaling: LED green power ON, LED yellow relay ON

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on RM17UAS16 . Santa Clara Systems carries 10,301 items from Telemecanique.
