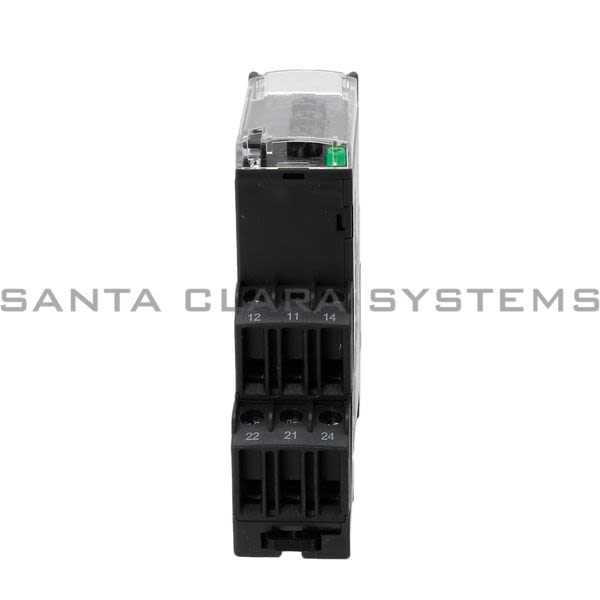

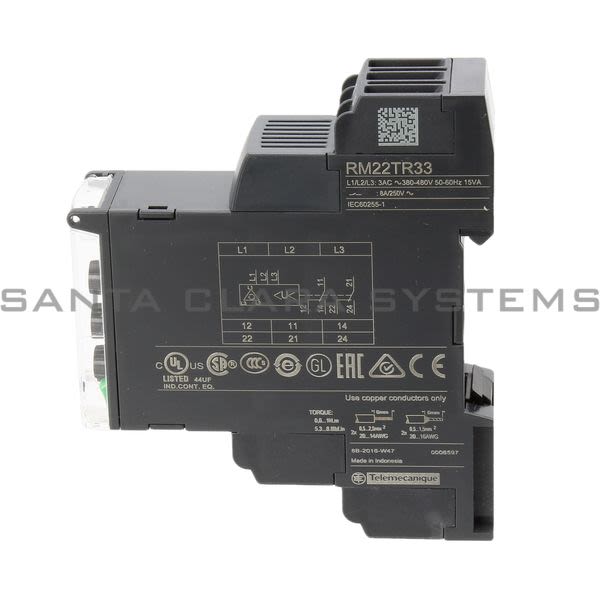

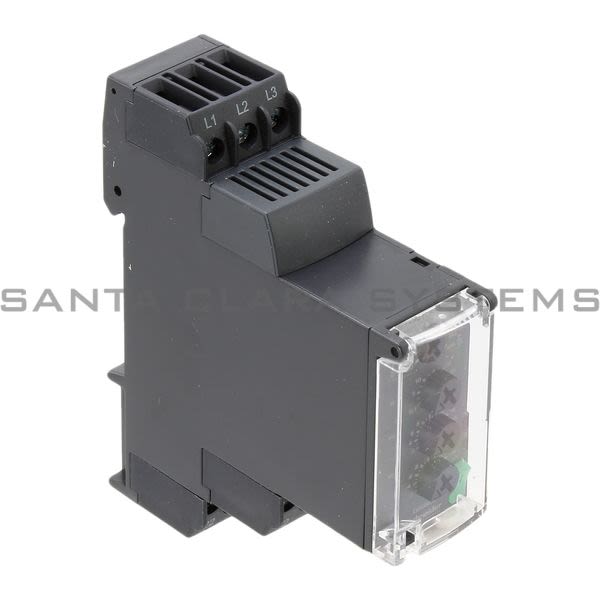

RM22TR33

Telemecanique - three-Phase Voltage control relay 380?480Vac, 2 C/O

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: three-Phase Voltage control relay 380?480Vac, 2 C/O
Product weight: 0.2 lb(US) (0.09 kg)
Range of product: Zelio Control
IP degree of protection: IP20 on terminals conforming to IEC 60529, IP40 on housing conforming to IEC 60529, IP50 on front panel conforming to IEC 60529
Standards: EN/IEC 60255-1
Width: 0.89 in (22.5 mm)
Mechanical durability: 10000000 cycles
Tightening torque: 5.31...8.85 lbf.in (0.6...1 N.m) conforming to IEC 60947-1
Connections - terminals: Screw terminals 2 x 0.5...2 x 2.5 mm - AWG 20...AWG 14, solid cable without cable end, Screw terminals 2 x 0.2...2 x 1.5 mm - AWG 24...AWG 16, flexible cable with cable end, Screw terminals 1 x 0.5...1 x 3.3 mm - AWG 20...AWG 12, solid cable without cable end, Screw terminals 1 x 0.2...1 x 2.5 mm - AWG 24...AWG 14, flexible cable with cable end
Mounting support: 35 mm DIN rail conforming to EN/IEC 60715
Vibration resistance: 0.075 mm (f = 10...58.1 Hz) (not in operation) conforming to IEC 60068-2-6, 1 gn (f = 10...58.1 Hz) (not in operation) conforming to IEC 60068-2-6, 0.035 mm (f = 58.1...150 Hz) (in operation) conforming to IEC 60068-2-6, 0.5 gn (f = 58.1...150 Hz) (in operation) conforming to IEC 60068-2-6
Shock resistance: 15 gn for 11 ms (not in operation) conforming to IEC 60068-2-27, 5 gn for 11 ms (in operation) conforming to IEC 60068-2-27
Electrical durability: 100000 cycles
Insulation resistance: > 100 MOhm at 500 V DC conforming to IEC 60255-27
Utilization category: AC-1 conforming to IEC 60947-4-1, DC-1 conforming to IEC 60947-4-1, AC-15 conforming to IEC 60947-5-1, DC-13 conforming to IEC 60947-5-1
Control circuit voltage limits: - 20 % + 20 % Un
[Us] rated supply voltage: 380...480 V AC
Overvoltage category: III conforming to UL 508, III conforming to IEC 60664-1
Relative humidity: 93...97 % at 25...55 C conforming to IEC 60068-2-30
Response time: <= 300 ms
Mounting position: Any position
Housing material: Self-extinguishing plastic
Dielectric test voltage: 2.5 kV for 1 min AC 50 Hz conforming to IEC 60255-27
Reset time: <= 1500 ms at maximum voltage
Immunity to micro breaks: <= 10 ms
Product or component type: Modular measurement and control relays
Maximum switching voltage: 250 V AC
Electromagnetic compatibility: Conducted and radiated emissions class B conforming to CISPR 22, Immunity for residential, commercial and light-industrial environments conforming to EN/IEC 61000-6-1, Electrostatic discharge 6 kV level 3 contact discharge conforming to IEC 61000-4-2, Electrostatic discharge 8 kV level 3 air discharge conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test 10 V/m level 3 conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test 4 kV level 4 direct conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test 2 kV level 4 capacitive coupling conforming to IEC 61000-4-4, Surge immunity test 4 kV level 4 common mode conforming to IEC 61000-4-5, Surge immunity test 2 kV level 4 differential mode conforming to IEC 61000-4-5, Conducted and radiated emissions class B group 1 conforming to CISPR 11, Emission standard for industrial environments conforming to EN/IEC 61000-6-4, Emission standard for residential, commercial and light-industrial environments conforming to EN/IEC 61000-6-3, Immunity for industrial environments conforming to EN/IEC 61000-6-2
Relay type: Control relay
Minimum switching current: 10 mA at 5 V DC
Phase: 3 phases

Maximum switching current: 8 A AC
Product certifications: EAC, CE, GL, CCC, RCM, CSA, UL, China RoHS
Relay name: RM22TR
Ambient air temperature for storage: -40...158 F (-40...70 C)
Relay monitored parameters: Phase sequence, Overvoltage and undervoltage detection, Phase failure detection
Supply voltage limits: 304...576 V AC
Ambient air temperature for operation: -20...50 C at 60 Hz, -20...60 C at 50 Hz AC/DC
Time delay type: Adjustable 0.1...30 s, +/- 10 % of the full scale value on crossing the threshold Tt
switching capacity in VA: 2000 VA
power consumption in VA: 15 VA at 480 V AC 60 Hz
Measurement range: 380...480 V voltage AC
Voltage detection threshold: < 100 V AC
Supply frequency: 50...60 Hz +/- 10 %
Output contacts: 2 C/O
Pollution degree: 3 conforming to IEC 60664-1, 3 conforming to UL 508
Nominal output current: 8:00 AM
Setting accuracy of the switching threshold: +/- 10 % of the full scale
Switching threshold drift: <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range
Setting accuracy of time delay: 10:00 PM
Time delay drift: <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range
Hysteresis: 2 % fixed of selectable
Run-up delay at power-up: <= 650 ms
Measuring cycle: 150 ms measurement cycle as true rms value
Threshold adjustment voltage: 2...20 % of Un selected
Voltage range: 380...480 V phase to phase
Repeat accuracy: +/- 0.5 % input and measurement circuit, +/- 3 % time delay
Measurement error: < 0.05 %/C with temperature variation, < 1 % over the whole range with voltage variation
status LED: LED yellow relay ON, LED green power ON
Safety reliability data: MTTFd = 388.1 years, B10d = 350000
Contacts material: Cadmium free
