RSZE1S48M

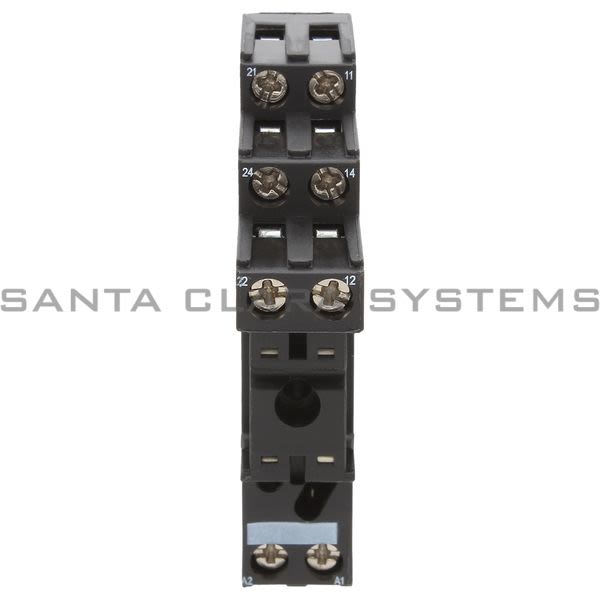

Telemecanique - socket RSZ - separate contact - < 250 V AC - screw connector

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: socket RSZ - separate contact - < 250 V AC - screw connector
Product weight: 0.11 lb(US) (0.05 kg)
Range of product: Zelio Relay
IP degree of protection: IP20 conforming to EN/IEC 60529
Standards: IEC 61984
Device short name: RSZ
Width: 0.61 in (15.5 mm)
Tightening torque: <= 7.08 lbf.in (0.8 N.m) (M3 screw(s))
Connections - terminals: Screw connectors, flexible cable with cable end 1 x 0.25...1 x 2.5 mm² / AWG 22...AWG 14Screw connectors, flexible cable with cable end 2 x 0.25...2 x 1 mm² / AWG 22...AWG 17Screw connectors, solid cable without cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14Screw connectors, solid cable without cable end 2 x 0.5...2 x 1.5 mm² / AWG 20...AWG 16
[Ith] conventional free air thermal current: 10:00 AM
System Voltage: < 250 V AC

Product or component type: Socket
Contact terminal arrangement: Separate
Product certifications: ULCSA
Product compatibility: Plug-in relay RSB (1 C/O)Plug-in relay RSB (2 C/O)
Fixing mode: By screw mounting on panelClip-on mounting on 35 mm symmetrical DIN rail
Ambient air temperature for storage: -40...185 °F (-40...85 °C)
Shape of pin: Flat
Marking: CE
Ambient air temperature for operation: -13...185 °F (-25...85 °C)
Sale per indivisible quantity: 10
Dielectric strength: 2500 V

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on RSZE1S48M . Santa Clara Systems carries 10,460 items from Telemecanique.
