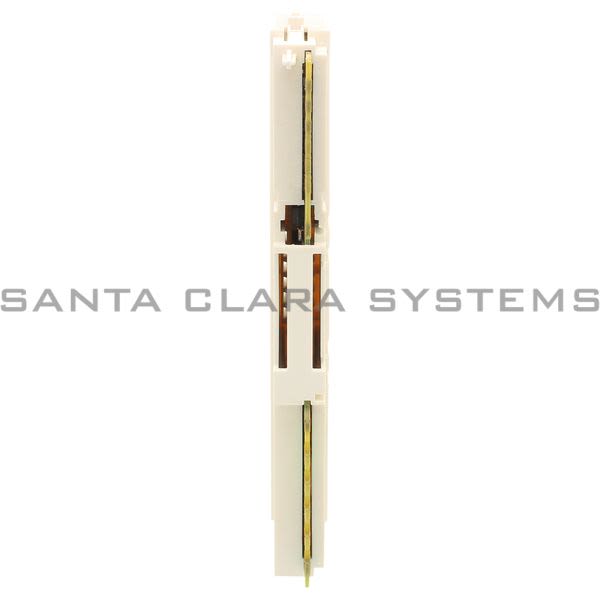

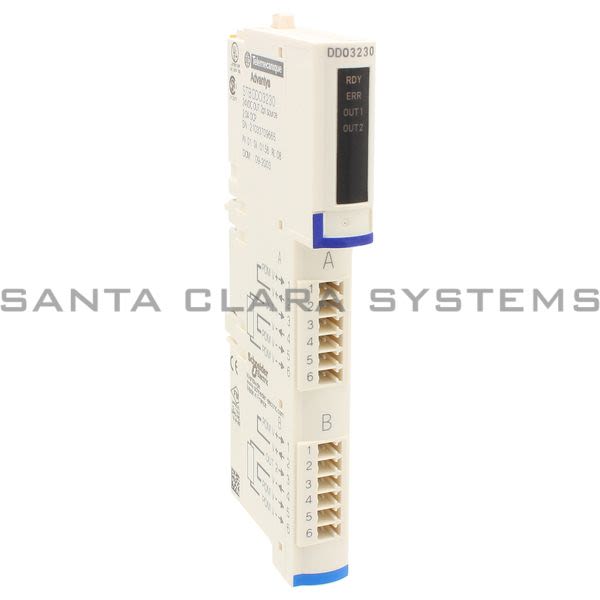

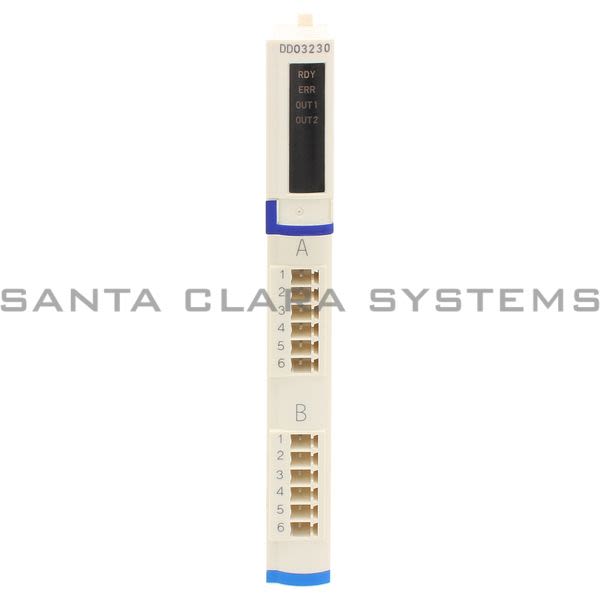

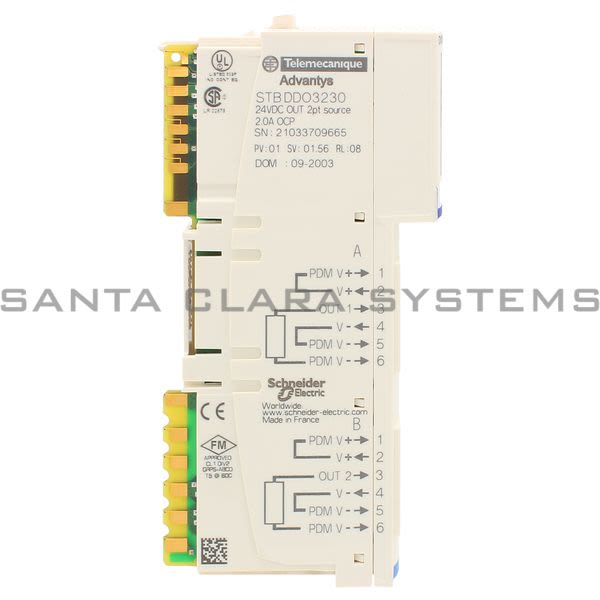

STBDDO3230

Telemecanique - standard digital output module STB - 24 V DC - 2 mA min load - 2 O

Current response time:

By 5AM PT on Wednesday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: standard digital output module STB - 24 V DC - 2 mA min load - 2 O
Product weight: 0.19 lb(US) (0.086 kg)
Range of product: Modicon STB distributed I/O solution
IP degree of protection: IP20 EN 61131-2 class 1
Standards: EN/IEC 61131-2 type 3
Width: 4.92 in (125 mm)
Height: 0.72 in (18.4 mm)
Depth: 2.56 in (65.1 mm)
Operating altitude: <= 6561.68 ft. (2000 m)
Vibration resistance: +/-0.35 mm 10...58 Hz, 3 gn 58...150 Hz 35 x 7.5 mm symmetrical DIN rail, 5 gn 58...150 Hz 35 x 15 mm symmetrical DIN rail
Shock resistance: 30 gn 11 ms IEC 88 reference 2-27
[Us] rated supply voltage: 24 V DC
Overvoltage category: II
Relative humidity: 95 % 140 F (60 C) without condensation
Protection type: Reverse polarity protection, Input protection resistor-limited, Power protection integrated fuse on PDM time lag 5 A
Response time: 2 ms off-to-on, 2 ms on-to-off
Input voltage limits: 11...30 V at state 1, -3...5 V at state 0
Product or component type: Basic digital input module
Permissible voltage: 30 V

Product certifications: UL, FM Class 1 Division 2, CSA
Discrete input number: 16
Discrete input current: 4.5 mA
Pollution degree: 2 IEC 60664-1
Discrete input voltage: 24 V
Current state 0 guaranteed: <= 1.5 mA
Discrete input voltage type: DC
Current state 1 guaranteed: >= 2.5 mA
Discrete input logic: Positive
Ambient air temperature for operation: 32...140 F without
Ambient air temperature for storage: -40...185 F without
Insulation between channels and logic bus: 1500 V for 1 minute
Cold swapping: Yes
Hot swapping fallback: Yes for basic NIMs
Product compatibility: Power distribution module STBPDT3100/3105, I/O base STBXBA3000
Supply: Power distribution module
Current consumption: 100 mA 5 V DC logic bus
Marking: CE
status LED: 1 LED green module status (RDY), 1 LED per channel green channel status (IN1 to IN16)

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on STBDDO3230 . Santa Clara Systems carries 10,301 items from Telemecanique.
