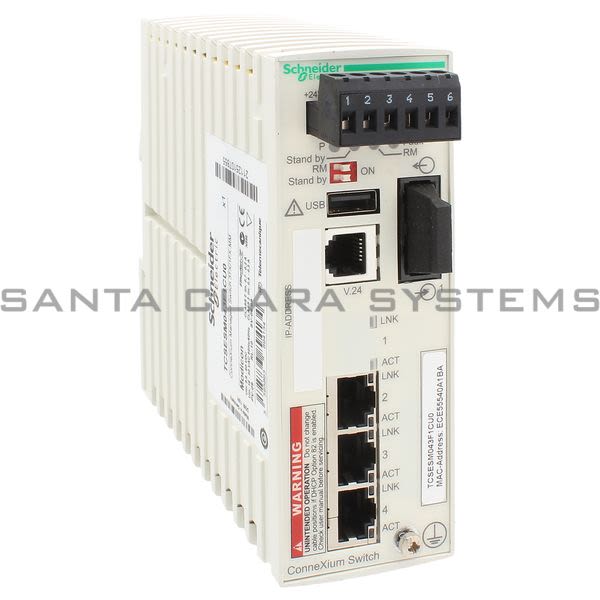

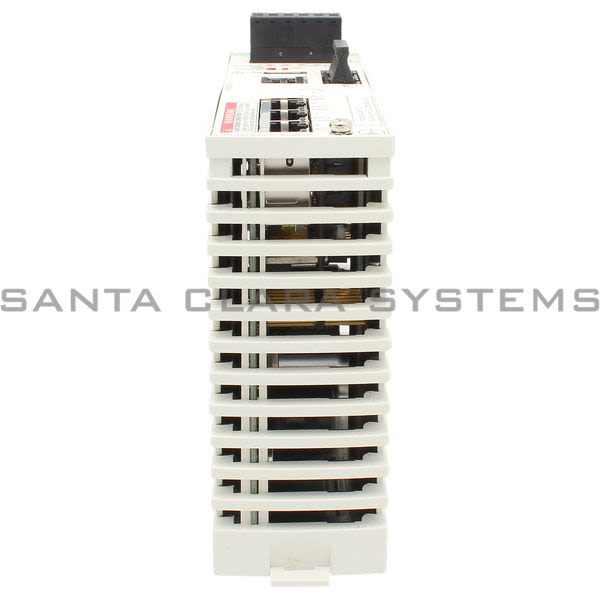

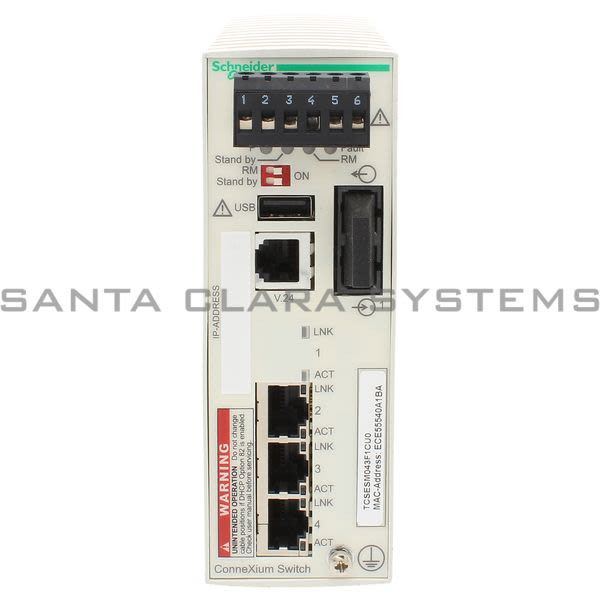

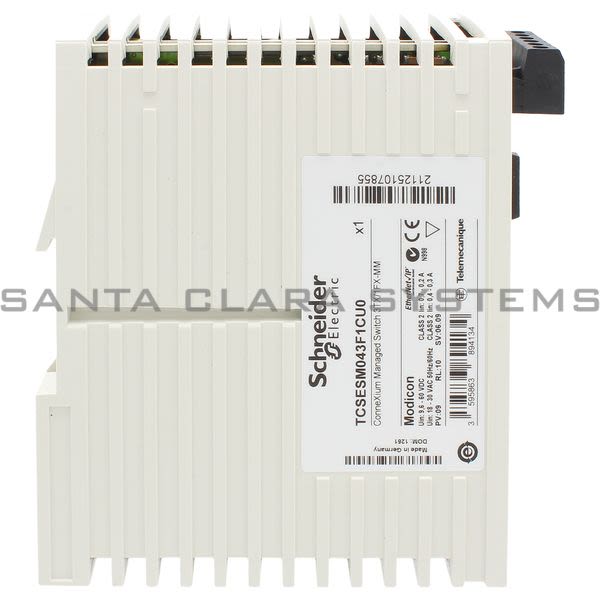

TCSESM043F1CU0

Telemecanique - Ethernet TCP/IP managed switch - ConneXium - 3TX/1FX - multimode

Current response time:

6 Minutes 40 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Ethernet TCP/IP managed switch - ConneXium - 3TX/1FX - multimode
Product weight: 0.88 lb(US) (0.4 kg)
Range of product: ConneXium
IP degree of protection: IP20
Standards: CSA C22.2 No 214, UL 1604 Class 1 Division 2, UL 508, EN/IEC 61131-2, CSA C22.2 No 213 Class I Division 2
Width: 1.85 in (47 mm)
Height: 5.16 in (131 mm)
Depth: 4.37 in (111 mm)
Mounting support: 35 mm symmetrical DIN rail
Electrical connection: Removable connector 6 ways power supply
[Us] rated supply voltage: 24 V
Relative humidity: 10...95 % without condensation
Integrated connection type: Duplex SC fiber optic, Shielded RJ45 copper cable
Ambient air temperature for operation: 32...140 F (0...60 C)
Product or component type: Ethernet TCP/IP managed switch
Transmission support medium: Twisted shielded pairs cable CAT 5E copper cable, Multimode optical fiber fiber optic
Concept: Transparent Ready

Max cable distance between devices: 100 m copper cable
Communication port protocol: Ethernet TCP/IP
Optic fiber length: 50/125 m, 62.2/125 m
port Ethernet: 100BASE-FX - 1 port(s) fiber optic, 10BASE-T/100BASE-TX - 3 port(s) copper cable
Attenuation: 11 dB 62.2/125 m, 8 dB 50/125 m
Product certifications: GL, C-Tick
Maximum number of switches in cascade: Unlimited
Ethernet service: SNTP client, FDR, SMTP V3, Data stream control, VLAN, Configuration via web server, IGMP Snooping, Priority port, Rapid Scanning Tree Protocol (RSTP), Secure port, Multicast filtering
Maximum number of switches in a ring: 50
Redundancy: Redundant single ring, Ring coupling, Redundant power supplies
Supply voltage limits: 18...30 V AC SELV, 9.6...60 V DC SELV
power consumption in W: 6.5 W
Marking: CE
Local signaling: 1 LED fault, 2 LEDs P1 P2 power supplies, 1 LED ring manager, 1 LED stand-by, 1 LED per channel copper port activity, 1 LED per channel copper port status
Alarm output: 1 contact <= 1 A
Alarm function: Data link status, Power supply fault, Switch fault, Redundancy ring fault
Ethernet cabling system: TF switches
