TCSESU043F1N0

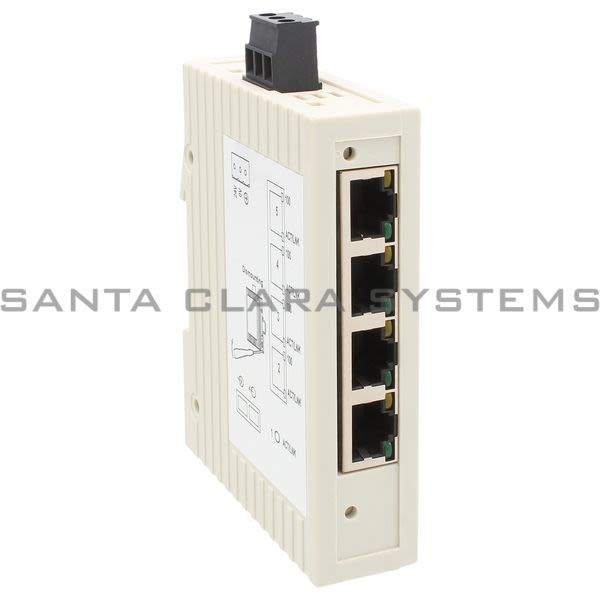

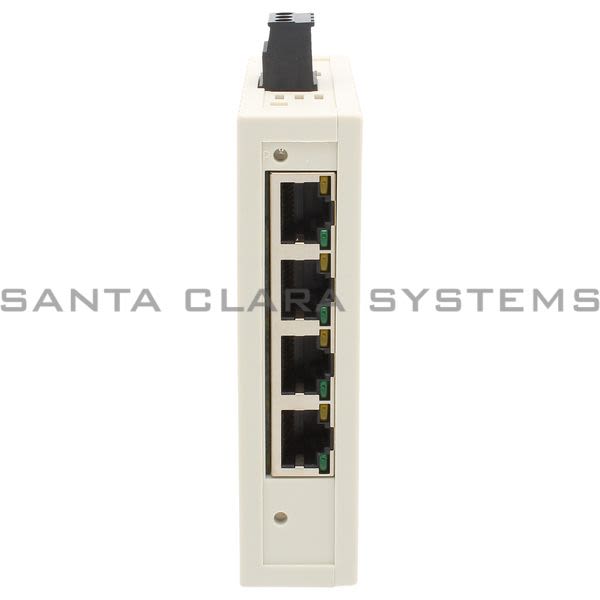

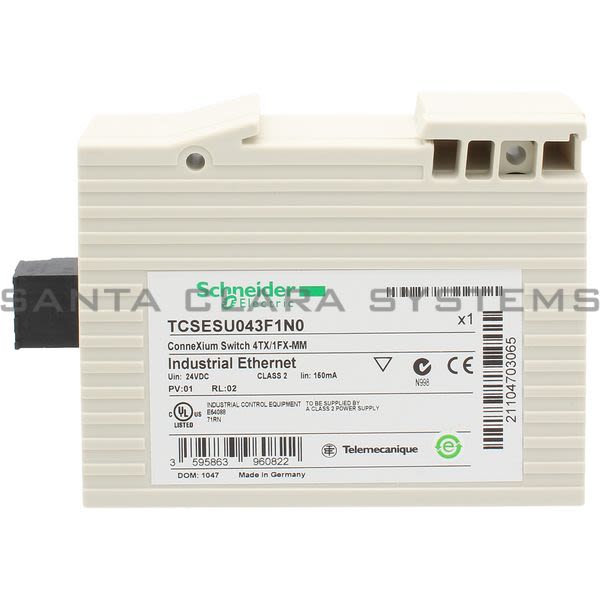

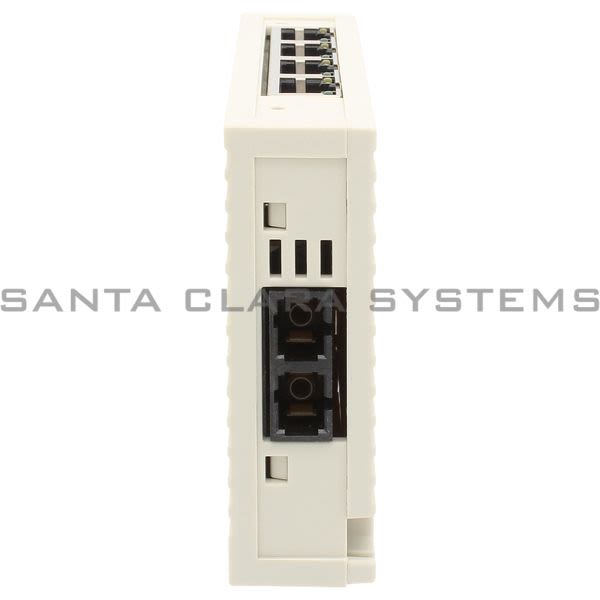

Telemecanique - Ethernet TCP/IP switch - ConneXium - 4 ports for copper + 1 for fiber optic

Product Summary:

Product weight: 0.26 lb(US) (0.12 kg)
Range of product: ConneXium
IP degree of protection: IP30
Standards: CUL 508CSA C22.2 No 142
Width: 0.98 in (25 mm)

Current response time:

By 5AM PT on Wednesday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Ethernet TCP/IP switch - ConneXium - 4 ports for copper + 1 for fiber optic
Product weight: 0.26 lb(US) (0.12 kg)
Range of product: ConneXium
IP degree of protection: IP30
Standards: CUL 508CSA C22.2 No 142
Width: 0.98 in (25 mm)
Height: 4.49 in (114 mm)
Depth: 3.11 in (79 mm)
Electrical connection: Removable connector 3 ways power supply
[Us] rated supply voltage: 24 V
Relative humidity: > 0...95 % without condensation
Integrated connection type: Duplex SC fiber opticShielded RJ45 copper cable
Ambient air temperature for operation: 32...140 °F (0...60 °C)
Product or component type: Ethernet TCP/IP unmanaged switch
Transmission support medium: Twisted shielded pairs cable CAT 5E copper cableMultimode optical fiber fiber optic

Concept: Transparent Ready
Max cable distance between devices: 100 m copper cable
Communication port protocol: Ethernet TCP/IP
Optic fiber length: 50/125 µm62.2/125 µm
port Ethernet: 100BASE-FX - 1 port(s) fiber optic10BASE-T/100BASE-TX - 4 port(s) copper cable
Attenuation: 11 dB 62.2/125 µm8 dB 50/125 µm
Product certifications: CE
Maximum number of switches in cascade: Unlimited
Ethernet service: Auto MDI/MDXAutomatic change of polarityAutomatic negotiation of 10/100 Mbit/s and duplex modeStorage and re-routing of received data
Supply voltage limits: 9.6...32 V DC SELV
power consumption in W: 3.9 W
Marking: CE
Local signaling: 1 LED fiber port state and activity1 LED power supply1 LED per channel copper port activity1 LED per channel 10 or 100 Mbit/s data rate
Ethernet cabling system: TF switches
