TM258LD42DT

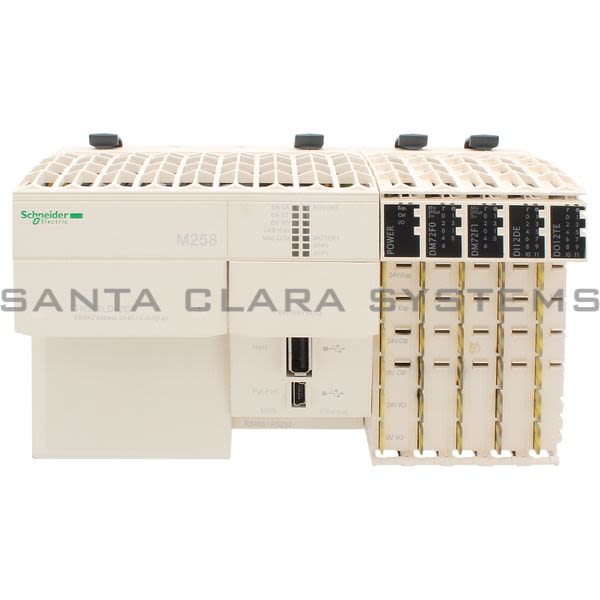

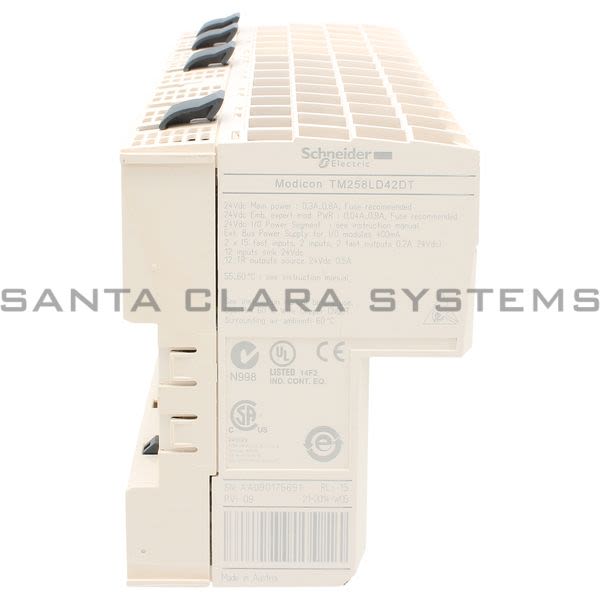

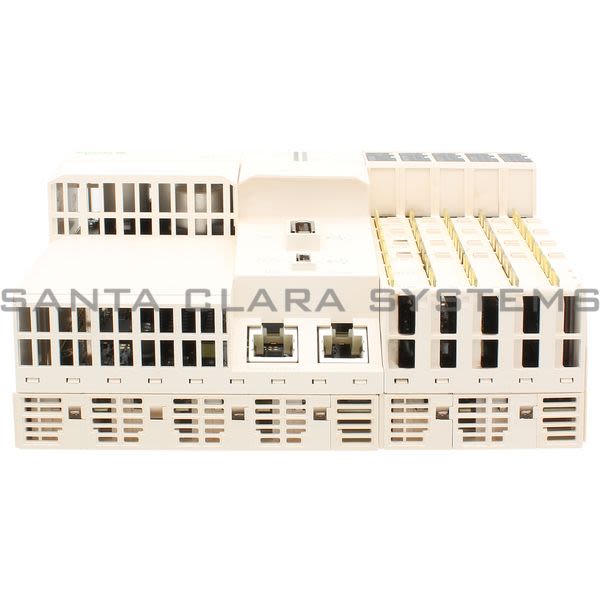

Telemecanique - compact base M258 - 42 I/O - 24 V DC

Current response time:

By 5AM PT on Wednesday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: compact base M258 - 42 I/O - 24 V DC
Product weight: 1.1 lb(US) (0.5 kg)
Range of product: Modicon M258
IP degree of protection: IP20 conforming to IEC 61131-2
Standards: IEC 61131-2CSA C22.2 No 142CSA C22.2 No 213UL 508
Width: 6.89 in (175 mm)
Height: 3.9 in (99 mm)
Depth: 3.35 in (85 mm)
Operating altitude: 0...6561.68 ft. (0...2000 m)
Mounting support: Symmetrical DIN rail
Vibration resistance: 1 gn 8.4...150 Hz DIN rail3.5 mm 5...8.4 Hz DIN rail
Shock resistance: 15 gn 11 ms
[Us] rated supply voltage: 24 V DC embedded expert modules power24 V DC I/O power segment24 V DC main supply
Relative humidity: 5...95 % without condensation
Discrete input number: 10 fast input12 input4 regular input
Product or component type: Logic controller
Discrete input logic: Sink fast inputSink regular inputSource input
Product certifications: CSAcULusGOST-RC-Tick
Product specific application: -
Discrete input voltage: 24 V
Ambient air temperature for operation: 32...131 °F (0...55 °C) without derating factor horizontal installation32...140 °F (0...60 °C) with derating factor horizontal installation32...122 °F (0...50 °C) vertical installation
discrete I/O number: 42
Discrete input voltage type: DC
Ambient air temperature for storage: -13...158 °F (-25...70 °C)
Discrete output number: 12 output4 fast output
Voltage state 1 guaranteed: >= 15 Vfor fast input>= 15 Vfor fast output>= 15 Vfor regular input
Voltage state 0 guaranteed: <= 5 Vfor fast input<= 5 Vfor fast output<= 5 Vfor regular input
Discrete input current: 4 mA for fast input4 mA for regular input
Pollution degree: 2 conforming to IEC 60664

Input impedance: 6 kOhm fast input6 kOhm regular input
Configurable filtering time: 0 ms fast input/regular input and fast output1.5 ms fast input/regular input and fast output12 ms fast input/regular input and fast output4 ms fast input/regular input and fast output
Storage altitude: 0...9842.52 ft. (0...3000 m)
Anti bounce filtering: 2 µs...4 ms (configurable) fast input/regular input and fast output
Max cable distance between devices: 30 m for fast input30 m for fast output30 m for regular input
Isolation between channels and internal logic: 500 Vrms AC
Resistance to electrostatic discharge: 4 kV on contact conforming to EN/IEC 61000-4-28 kV in air conforming to EN/IEC 61000-4-2
Isolation between channels: None
Resistance to electromagnetic fields: 0.91 V/yd (1 V/m) 2...2.7 GHz conforming to EN/IEC 61000-4-39.14 V/yd (10 V/m) 80...2000 MHz conforming to EN/IEC 61000-4-3
Discrete output logic: Source
Resistance to fast transients: 1 kV I/O conforming to EN/IEC 61000-4-41 kV shielded cable conforming to EN/IEC 61000-4-42 kV power lines conforming to EN/IEC 61000-4-4
Discrete output voltage: 24 V DC
Surge withstand: 0.5 kV differential mode conforming to EN/IEC 61000-4-51 kV common mode conforming to EN/IEC 61000-4-5
Output voltage limits: 19.2...28.8 V
Disturbance radiated/conducted: CISPR 11
Discrete output current: 4 mA for fast output
Supply voltage limits: 20.4...28.8 V
[In] rated current: 0.04 Afor embedded expert modules power0.25 Afor main supply10 Afor I/O power segment
Peak current: <= 100 kA during <= 70 s main supply<= 25 kA during <= 500 s I/O power segment<= 50 kA during <= 150 s embedded expert modules power1.2 A during > 70 s main supply
power consumption in W: <= 13.03 W
Execution time per instruction: 22 ns : Boolean
Memory description: Flash 128 MBInternal RAM 64 MB
Real-time clock: With user calibration real-time clock, drift: <= 6 s/monthWithout any user calibration real-time clock, drift: < 30 s/month at 77 °F (25 °C)
Data backed up: Variables of type retain and retain persistent CR2477M Renata, 1.5 years autonomy
Integrated connection type: 1 isolated serial link female RJ45, Ethernet Modbus TCP/IP slave (10BASE-T/100BASE-TX)1 isolated serial link female RJ45, Modbus master/slave RTU/ASCII or character mode ASCII (RS232/RS485), 300...115200 bps1 isolated serial link mini B USB, 480 Mbit/s1 isolated serial link USB type A, 480 Mbit/s
Counting input number: 8 counting input(s) 200 kHz
Local signaling: 1 LED per channel I/O state1 LED CAN0 STS1 LED MBS COM1 LED green/red APP01 LED green/red APP11 LED green/red Eth NS (Ethernet network status)1 LED green/red Eth ST (Ethernet status)1 LED green/red RUN/MS (module status)1 LED green/red USB host1 LED green/yellow Eth LA (Ethernet activity)1 LED red BATT (battery status)
Marking: CE
