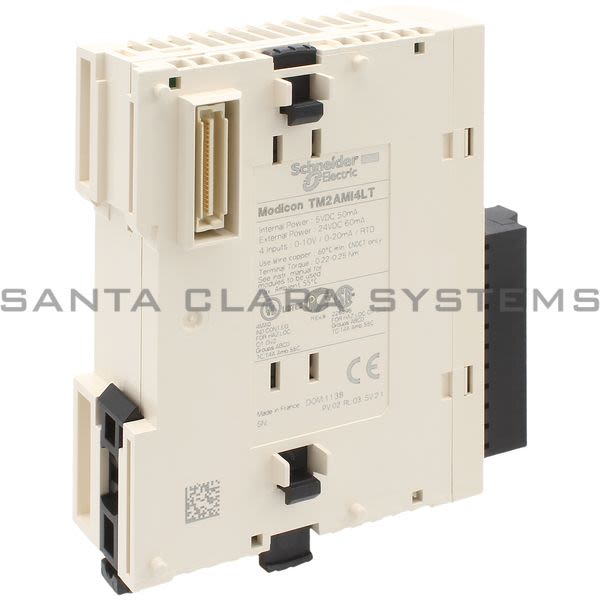

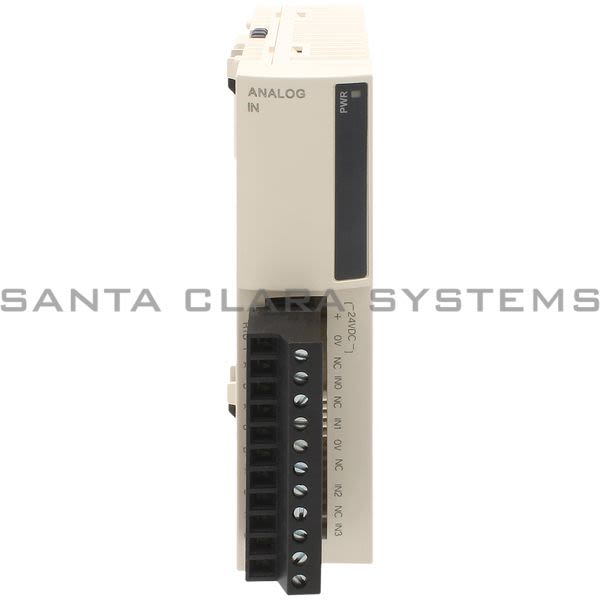

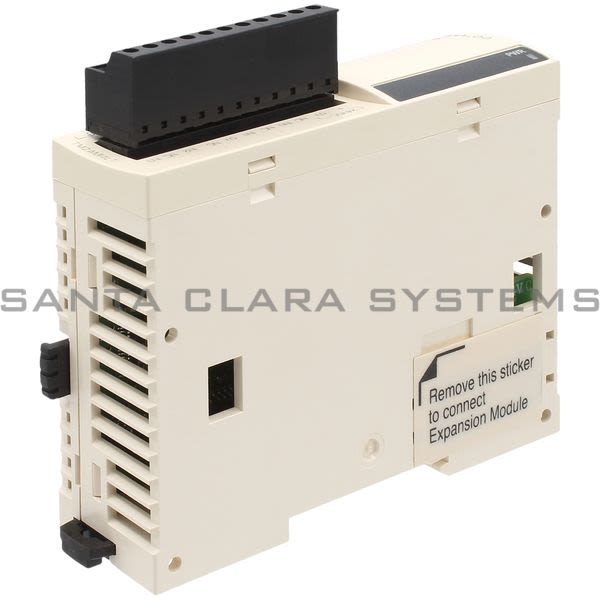

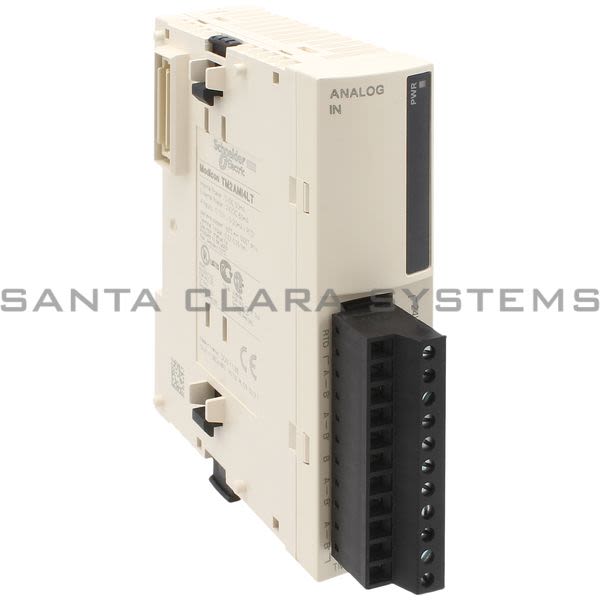

TM2AMI4LT

Telemecanique - analog input module M238- 4 inputs voltage/current/temperature- non differential

Current response time:

19 Minutes 35 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: analog input module M238- 4 inputs voltage/current/temperature- non differential
Product weight: 0.19 lb(US) (0.085 kg)
Range of product: Modicon M238 logic controller
Width: 0.93 in (23.5 mm)
Height: 3.54 in (90 mm)
Depth: 2.76 in (70 mm)
Electrical connection: 1 removable screw terminal block
[Us] rated supply voltage: 24 V DC
Range compatibility: Twido, Advantys OTB
Dielectric strength: 2500 V between the I/O and internal logic
Product or component type: Analog input module
Analogue input resolution: 12 bits
Analogue input number: 4
LSB value: 0.2 C temperature probe Pt 100/Pt 1000, 0.05 C temperature probe Ni 100/Ni 1000, 2.5 mV voltage voltage, 4.8 A current current
Analogue input type: Current 0...20 mA non differential, Voltage 0...10 V non differential, Temperature probe - 200...600 C Pt 100/Pt 1000 non differential, Temperature probe - 50...150 C Ni 100/Ni 1000 non differential

Permissible continuous overload: 40 mA current, 13 V voltage
Cross talk: <= 1 LSB
Input impedance: 10 kOhm voltage, 470 Ohm current, >= 10 kOhm temperature probe
Sampling duration: <= 160 ms
Acquisition period: 320 ms per channel + 1 controller cycle time temperature probe, 160 ms per channel + 1 controller cycle time voltage/current
Measurement error: +/- 0.4 % of full scale Pt 100/Pt 1000, Ni 100/ Ni 1000 25 C, +/- 0.2 % of full scale 0...10 V 0...10 V 25 C, +/- 0.2 % of full scale 4...20 mA 4...20 mA 25 C
Temperature coefficient: +/- 0.004 %FS/C temperature probe, +/- 0.009 %FS/C current, +/- 0.009 %FS/C voltage
Repeat accuracy: +/-0.1 %FS
Non-linearity: +/- 0.02 %FS
Total error: +/-0.5 %FS
Type of cable: Shielded cable
Insulation between channel and internal logic: Photocoupler
Supply: External supply
Supply voltage limits: 20.4...28.8 V
Current consumption: 60 mA 24 V DC external, 50 mA 5 V DC internal
