TM2AMM3HT

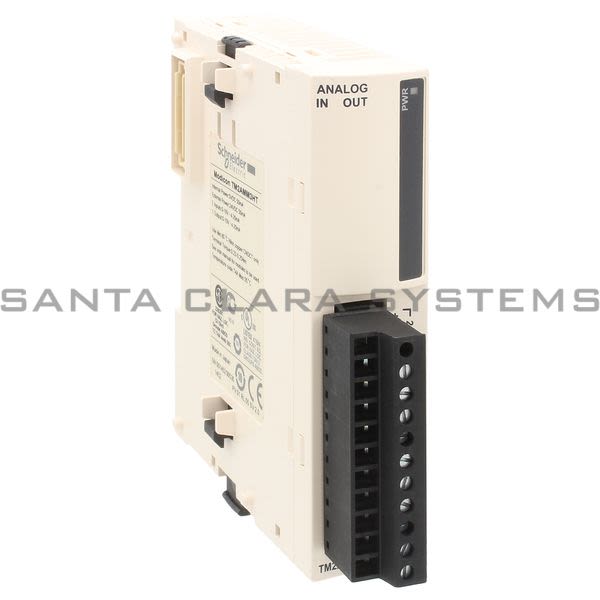

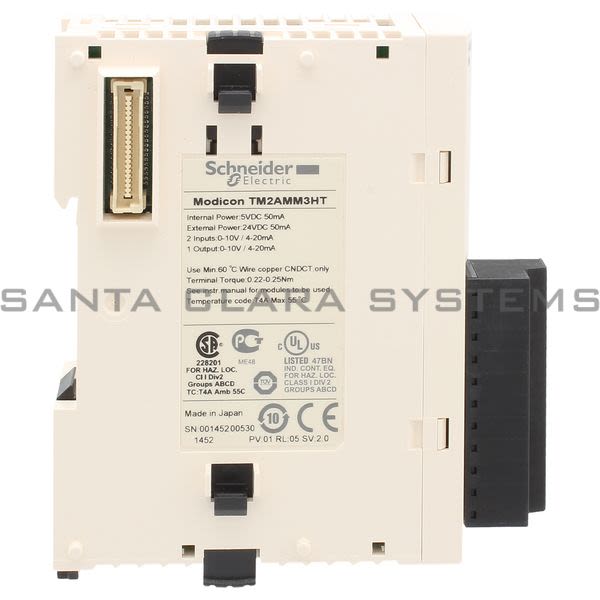

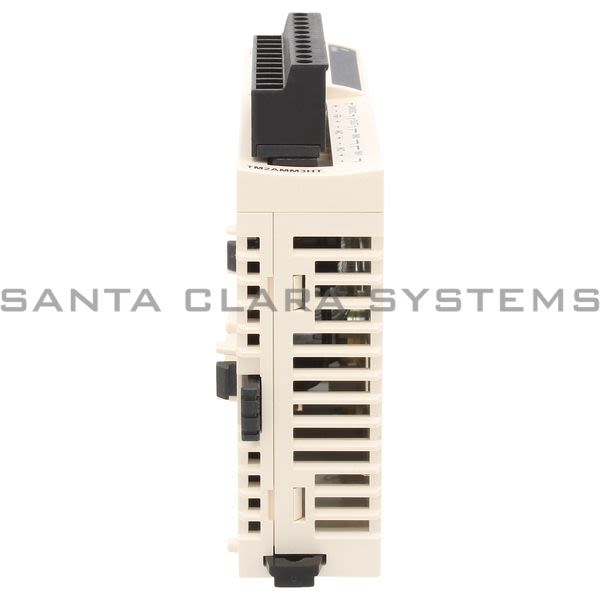

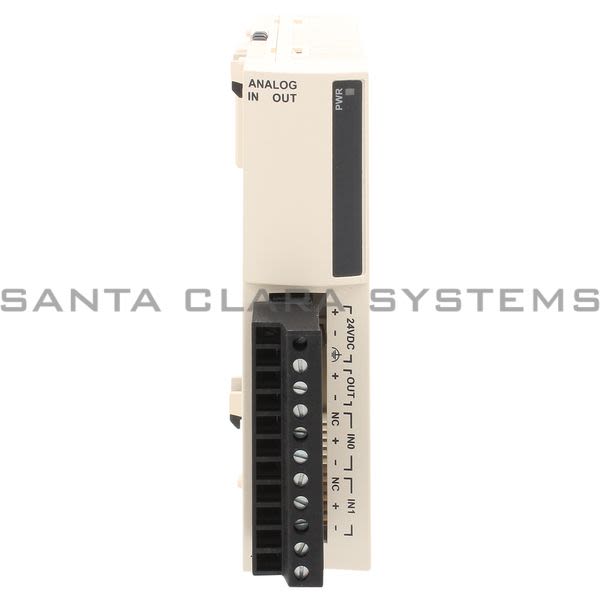

Telemecanique - analog input/output module M238 - 2 inputs voltage/current high level - 1 output

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: analog input/output module M238 - 2 inputs voltage/current high level - 1 output
Product weight: 0.19 lb(US) (0.085 kg)
Range of product: Modicon M238 logic controller
Width: 0.93 in (23.5 mm)
Height: 3.54 in (90 mm)
Depth: 2.76 in (70 mm)
Electrical connection: 1 removable screw terminal block
[Us] rated supply voltage: 24 V DC
Range compatibility: Advantys OTB, Twido
Dielectric strength: 500 V between the I/O and the external supply circuit, 500 V between the I/O and internal logic, 500 V between I/O channel
Product or component type: Input/output analog module
Analogue input resolution: 12 bits
Analogue input number: 2
Analogue output resolution: 12 bits
Input level: High level
LSB value: 2.5 mV voltage voltage, 4.8 A current current
Analogue input type: Current 4...20 mA non differential, Voltage 0...10 V non differential
Permissible continuous overload: 40 mA current, 13 V voltage
Analogue output number: 1
Input impedance: >= 1 MOhm voltage, >= 10 Ohm current

Analogue output type: Voltage 0...10 V, Current 4...20 mA
Load type: Resistive
Cross talk: <= 2 LSB
Load impedance ohmic: <= 300 Ohm current, >= 2000 Ohm voltage
Stabilization time: 20 ms
Conversion time: 20 ms + 1 controller cycle time
Sampling duration: <= 10 ms
Acquisition period: 60 ms per channel + 1 controller cycle time
Measurement error: +/- 0.2 % of full scale 0...10 V 0...10 V 25 C, +/- 0.2 % of full scale 4...20 mA 4...20 mA 25 C
Temperature coefficient: +/-0.006 %FS/C 0...10 V, +/-0.006 %FS/C 4...20 mA, +/-0.015 %FS/C 0...10 V 0...10 V, +/-0.015 %FS/C 4...20 mA 4...20 mA
Repeat accuracy: +/-0.5 %FS input/output
Non-linearity: +/- 0.2 %FS current current, +/- 0.2 %FS voltage voltage
Output error: +/- 1 %FS
Output ripple: <= 1 LSB
Total error: +/-1 %FS current current, +/-1 %FS voltage voltage
Type of cable: Shielded cable
Insulation between channel and internal logic: Photocoupler
Supply: External supply
Supply voltage limits: 19.2...30 V
Current consumption: 50 mA 5 V DC internal, 50 mA 24 V DC external

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on TM2AMM3HT . Santa Clara Systems carries 10,300 items from Telemecanique.
