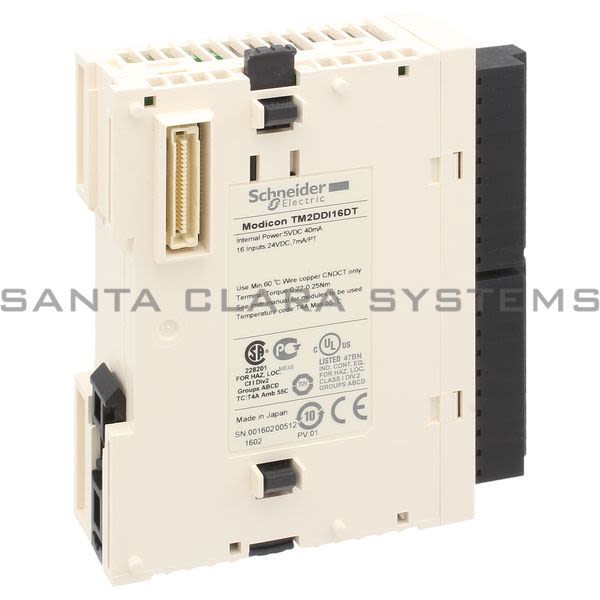

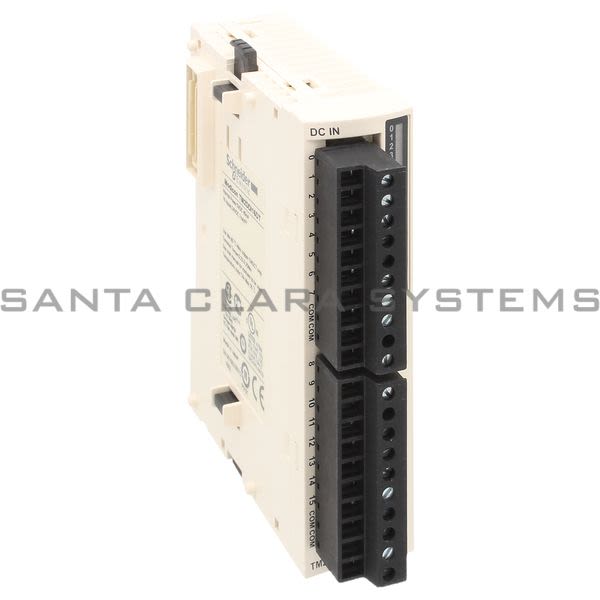

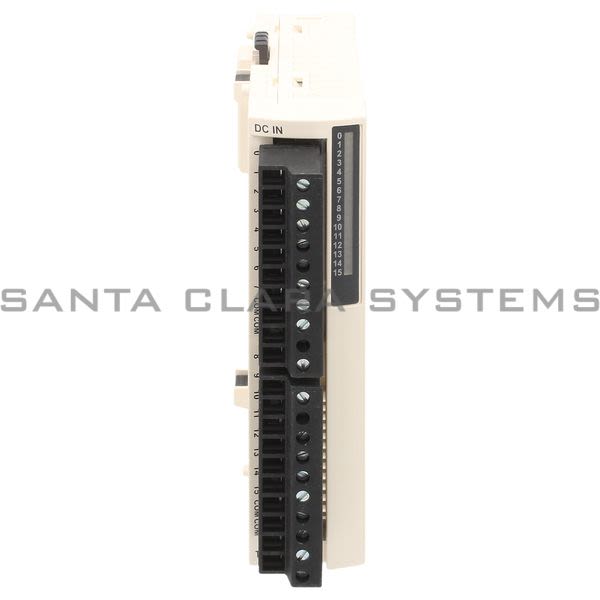

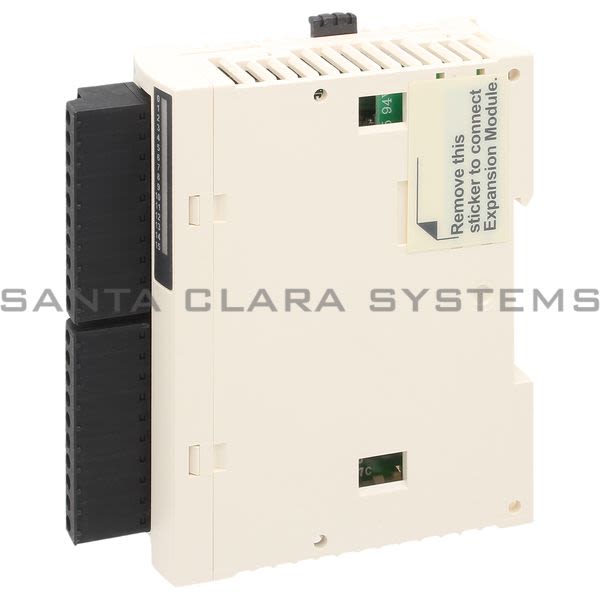

TM2DDI16DT

Telemecanique - discrete input module M238 - 16 inputs 24V DC - 1 removable screw terminal block

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: discrete input module M238 - 16 inputs 24V DC - 1 removable screw terminal block
Product weight: 0.14 lb(US) (0.065 kg)
Range of product: Modicon M238 logic controller
Width: 0.93 in (23.5 mm)
Height: 3.54 in (90 mm)
Depth: 3.33 in (84.6 mm)
Mounting support: 35 mm symmetrical DIN rail
Electrical connection: 1 removable screw terminal block
Response time: 4 ms at state 0, 4 ms at state 1
Range compatibility: Advantys OTB, Twido
Product or component type: Discrete input module
Input voltage limits: 20.4...28.8 V

Discrete input number: 16
Discrete input logic: Sink or source
Discrete input voltage: 24 V
Discrete input current: 7 mA
Discrete input voltage type: DC
Input impedance: 3.4 kOhm
Number of common point: 1
Isolation between channels: None
Isolation between channels and internal logic: 500 V for 1 minute
Current consumption: 40 mA 5 V DC at state 1 for all input
Local signaling: 1 display block

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on TM2DDI16DT . Santa Clara Systems carries 10,300 items from Telemecanique.
