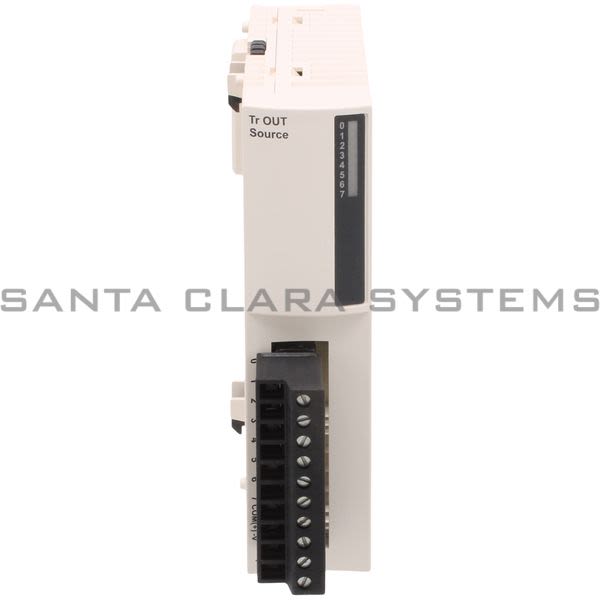

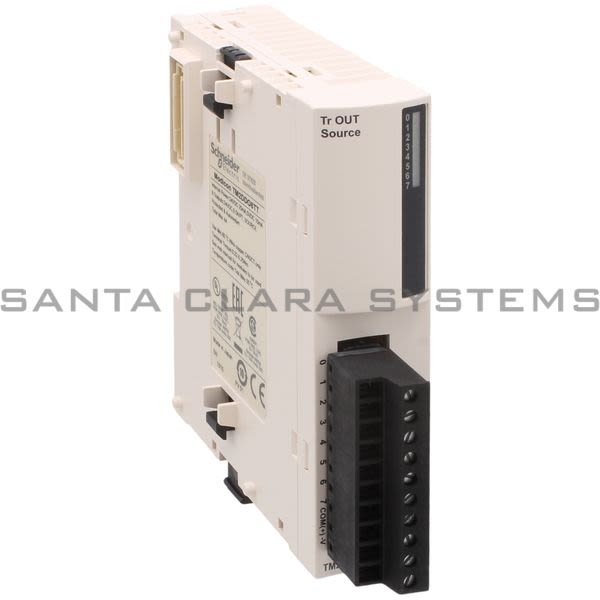

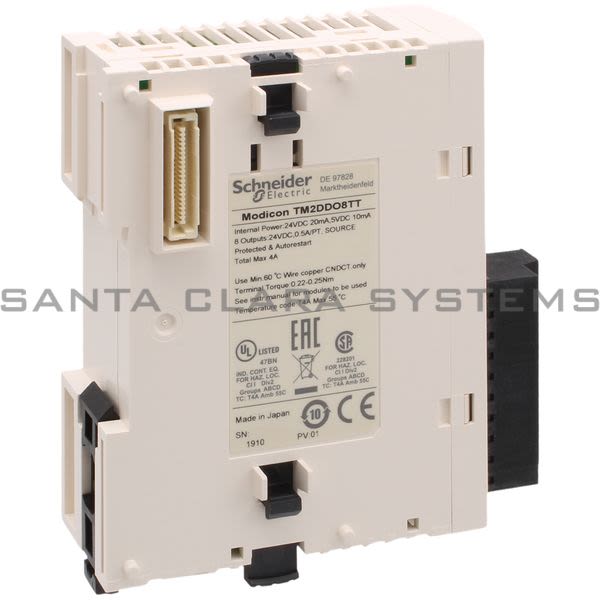

TM2DDO8TT

Telemecanique - discrete output module M238 - 8 outputs 24 V transistor - 1 screw terminal block

Product Summary:

Product weight: 0.19 lb(US) (0.085 kg)
Range of product: Modicon M238 logic controller
Width: 1.07 in (27.3 mm)
Height: 3.54 in (90 mm)
Depth: 3.33 in (84.6 mm)

Current response time:

12 Minutes 26 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: discrete output module M238 - 8 outputs 24 V transistor - 1 screw terminal block
Product weight: 0.19 lb(US) (0.085 kg)
Range of product: Modicon M238 logic controller
Width: 1.07 in (27.3 mm)
Height: 3.54 in (90 mm)
Depth: 3.33 in (84.6 mm)
Mounting support: 35 mm symmetrical DIN rail
Electrical connection: 1 removable screw terminal block
Response time: 450 µs from state 0 to state 1450 µs from state 1 to state 0
Range compatibility: Advantys OTBTwido
Product or component type: Discrete output module
Output voltage limits: 20.4...28.8 V
Discrete output number: 8
Current per channel: 0.6 A
Discrete output type: Transistor

Current per output common: 4:00 AM
Discrete output voltage: 24 V
Number of common point: 1
Discrete output logic: Source
Discrete output current: 0.5 A
[Ures] residual voltage: <= 0.4 V at state 1
Leakage current: 0.1 mA
Inductive load: <= 10 mH
Tungsten load: <= 12 W
Short-circuit protection: With automatic reactivation
Overload protection: With automatic reactivation
Isolation between channels: None
Isolation between channels and internal logic: 500 V for 1 minute
Current consumption: 10 mA 5 V DC at state 1 for all output20 mA 24 V DC at state 1 for all output
Local signaling: 1 display block
