TM2DRA8RT

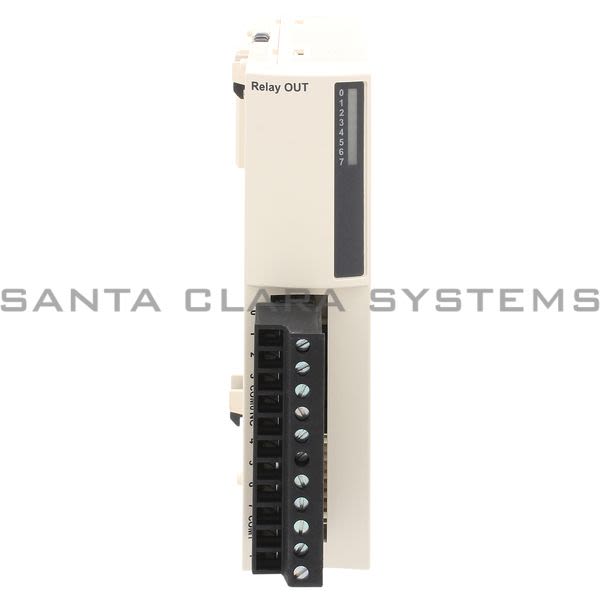

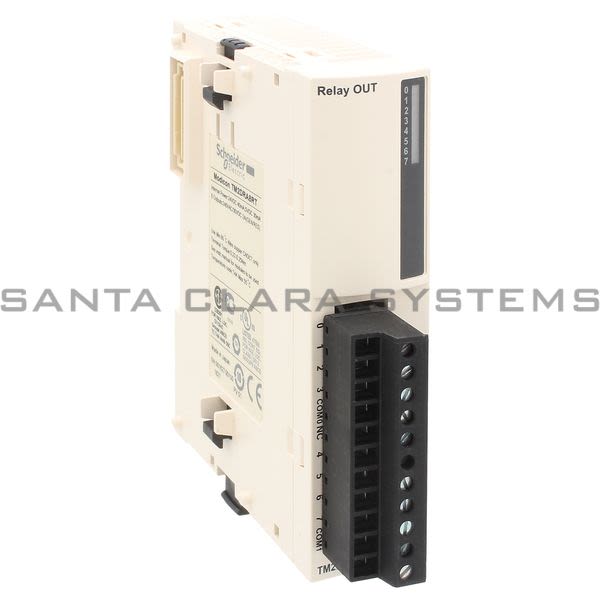

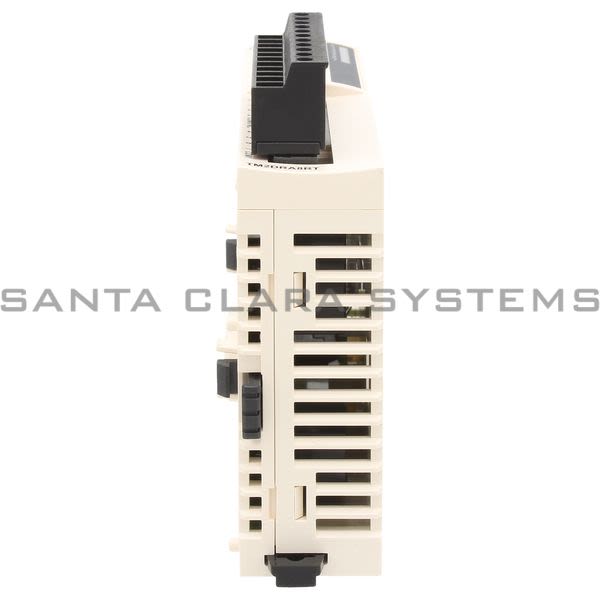

Telemecanique - discrete output module M238 - 8 outputs relay - 1 removable screw terminal block

Product Summary:

Product weight: 0.24 lb(US) (0.11 kg)
Range of product: Modicon M238 logic controller
Width: 1.07 in (27.3 mm)
Height: 3.54 in (90 mm)
Depth: 3.33 in (84.6 mm)

Current response time:

5 Minutes 26 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: discrete output module M238 - 8 outputs relay - 1 removable screw terminal block
Product weight: 0.24 lb(US) (0.11 kg)
Range of product: Modicon M238 logic controller
Width: 1.07 in (27.3 mm)
Height: 3.54 in (90 mm)
Depth: 3.33 in (84.6 mm)
Mechanical durability: 20000000 cycles
Mounting support: 35 mm symmetrical DIN rail
Electrical durability: 100000 cycles 0.5 A AC-15 240 V AC cos phi = 0.35 inductive100000 cycles 1 A AC-15 240 V AC cos phi = 0.7 inductive100000 cycles 1 A DC-13 24 V DC inductive (L/R = 7 ms)100000 cycles 2 A 240 V AC resistive100000 cycles 2 A 30 V DC resistive
Electrical connection: 1 removable screw terminal block
Response time: <= 10 ms from state 0 to state 1 input<= 5 ms from state 1 to state 0 input
Range compatibility: TwidoAdvantys OTB
Product or component type: Discrete output module

Discrete output function: 1 NO
Discrete output number: 8
Current per channel: 2:00 AM
Discrete output type: Relay
Current per output common: 7:00 AM
Number of common point: 2
Contact resistance: <= 45 mOhm
Minimum switching current: 0.1 mA 0.1 V DC
Isolation between channels: 1500 V for 1 minute
Isolation between channels and internal logic: 2300 V for 1 minute
Isolation between output channels group: 1500 V for 1 minute
Current consumption: 30 mA 5 V DC at state 1 for all output40 mA 24 V DC at state 1 for all output
Local signaling: 1 display block

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on TM2DRA8RT . Santa Clara Systems carries 10,643 items from Telemecanique.
