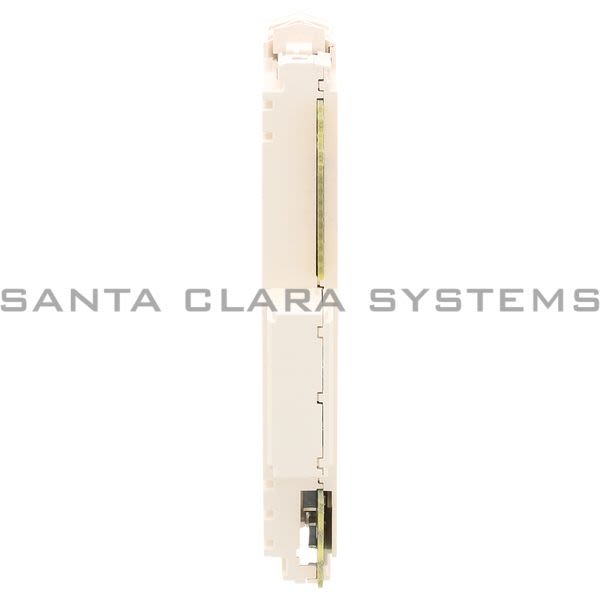

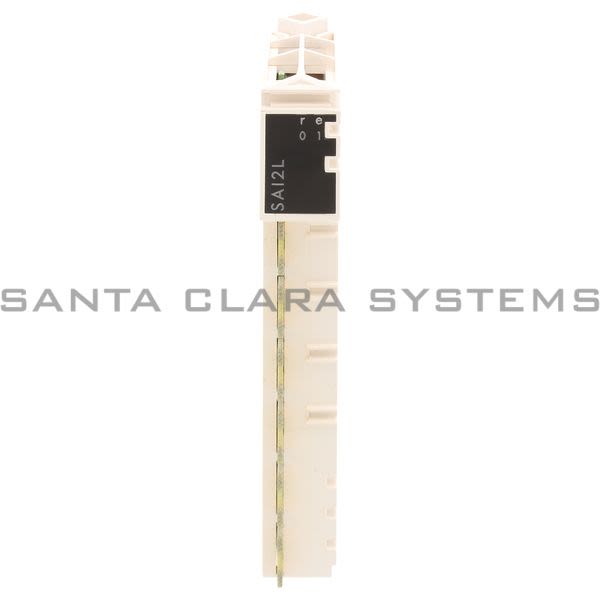

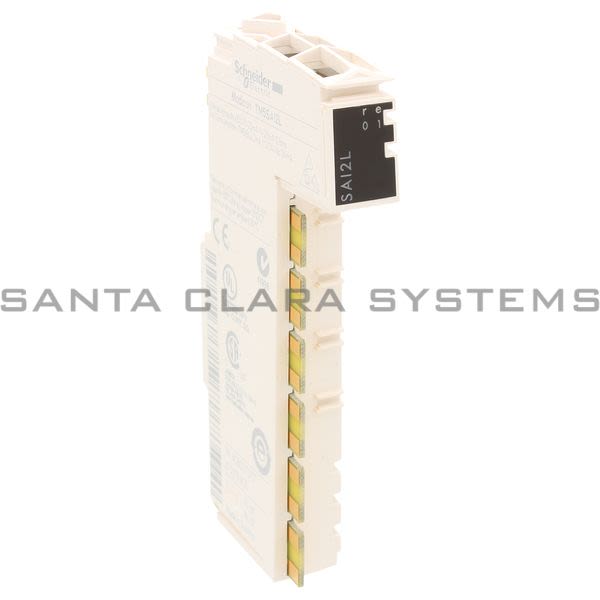

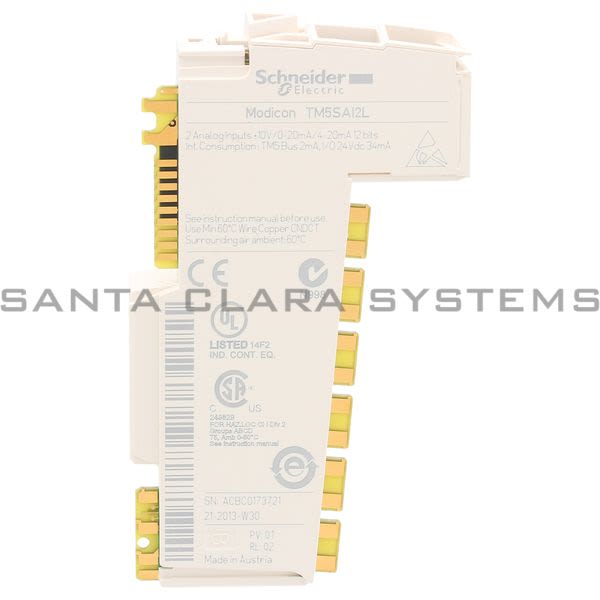

TM5SAI2L

Telemecanique - analog input module - 2I - +/-10 V/0..20 mA/4..20 mA - 12 bits

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: analog input module - 2I - +/-10 V/0..20 mA/4..20 mA - 12 bits
Product weight: 0.06 lb(US) (0.025 kg)
Range of product: Modicon TM5
IP degree of protection: IP20 conforming to IEC 61131-2
Standards: CSA C22.2 No 142, CSA C22.2 No 213, IEC 61131-2, UL 508
Operating altitude: 0...6561.68 ft. (0...2000 m)
Vibration resistance: 1 gn (f= 8.4...150 Hz) DIN rail, 3.5 mm (f= 5...8.4 Hz) DIN rail
Shock resistance: 15 gn 11 ms
[Us] rated supply voltage: 24 V DC -15...20 %
Relative humidity: 5...95 % without condensation
Color: White
Range compatibility: Modicon M258, Modicon LMC058
Product or component type: Analog input module
Product compatibility: Logic controller, Motion controller
Product certifications: GOST-R, C-Tick, CSA, cULus
Analogue input number: 2
Measurement resolution: 2.441 mV, +/- 10 V, 4.883 A, 0...20 mA/4...20 mA
Ambient air temperature for operation: 32...131 F (0...55 C) without derating factor (horizontal installation), 32...140 F (0...60 C) with derating factor (horizontal installation), 32...122 F (0...50 C) (vertical installation)
Analogue input type: Current 0...20 mA/4...20 mA, differential, Voltage +/- 10 V, differential
Ambient air temperature for storage: -13...158 F (-25...70 C)
Analogue input resolution: 12 bits + sign +/- 10 V, 12 bits 0...20 mA/4...20 mA
Input impedance: >= 20 mOhm voltage

Load impedance ohmic: <= 300 Ohm (current)
Sampling duration: 1 ms, analogue input type: all inputs with filtering, 300 s, analogue input type: all inputs without filtering
Pollution degree: 2 conforming to IEC 60664
Measurement error: < 0.08 % of full scale, 0...20 mA/4...20 mA at 25 C, < 0.08 % of full scale, +/- 10 V, +/- 10 V at 25 C
Temperature coefficient: +/- 0.009 %FS/C, analogue input type: current, +/- 0.006 %FS/C, analogue input type: voltage
Storage altitude: 0...9842.52 ft. (0...3000 m)
Non-linearity: < 0.025 %FS, analogue input type: voltage, < 0.05 %FS, analogue input type: current
Type of cable: Shielded cable
Isolation: No insulation between channels, 500 Vrms AC insulation between channel and bus
Resistance to electrostatic discharge: 4 kV on contact conforming to EN/IEC 61000-4-2, 8 kV in air conforming to EN/IEC 61000-4-2
Supply: Internal
Resistance to electromagnetic fields: 0.91 V/yd (1 V/m) 2...2.7 GHz conforming to EN/IEC 61000-4-3, 9.14 V/yd (10 V/m) 80...2000 MHz conforming to EN/IEC 61000-4-3
Resistance to fast transients: 1 kV I/O conforming to EN/IEC 61000-4-4, 1 kV shielded cable conforming to EN/IEC 61000-4-4, 2 kV power lines conforming to EN/IEC 61000-4-4
Common mode rejection: >= 70 dB
Surge withstand: 0.5 kV differential mode conforming to EN/IEC 61000-4-5, 1 kV common mode conforming to EN/IEC 61000-4-5
Local signaling: 1 LED green power supply, 1 LED red power supply, 2 LEDs green input status
Electromagnetic compatibility: EN/IEC 61000-4-6
Current consumption: 2 mA 5 V DC bus, 33 mA 24 V DC input/output
Disturbance radiated/conducted: CISPR 11
power dissipation in W: <= 0.81 W
Marking: CE
