TSX3705028DR1

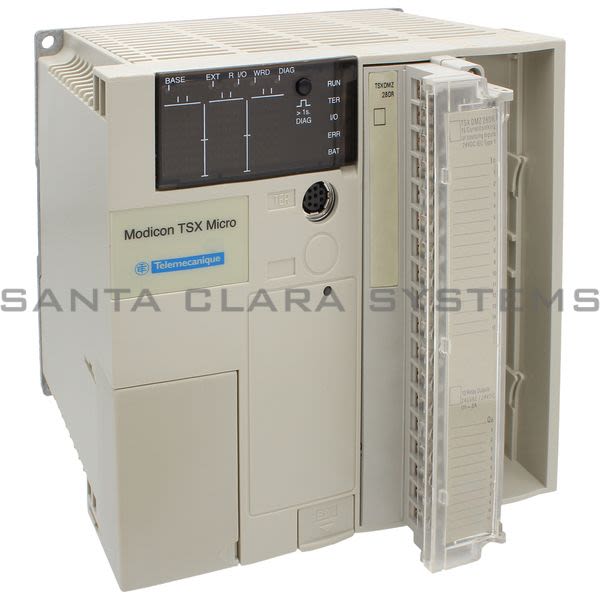

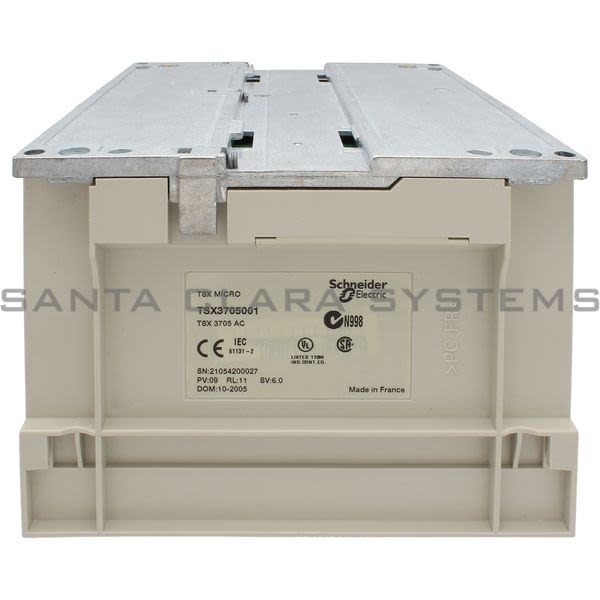

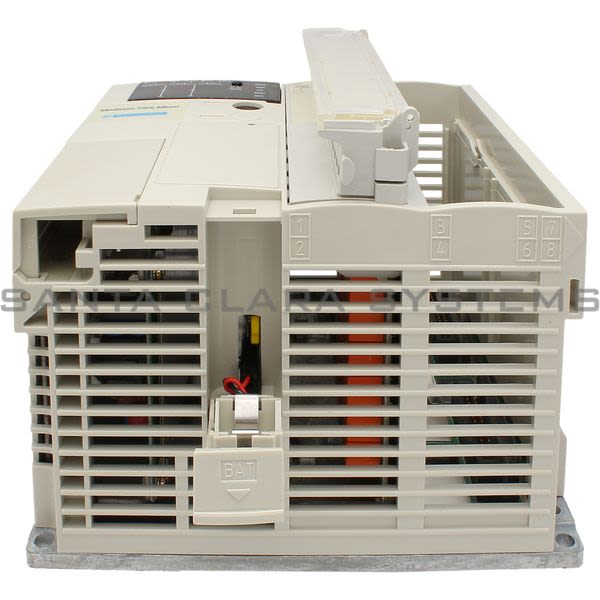

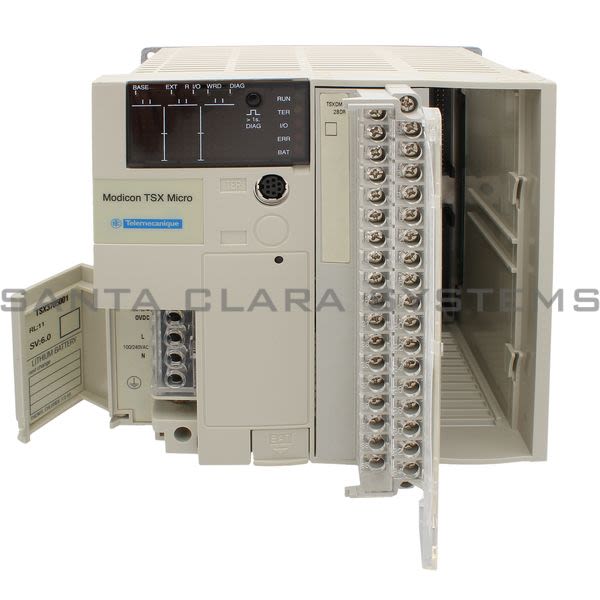

Telemecanique - TSX Micro 37 05/08 PLC configurations

Current response time:

10 Minutes 15 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TSX Micro 37 05/08 PLC configurations
Product weight: 5.22 lb(US) (2.37 kg)
Range of product: Modicon TSX Micro automation platform
Width: 7.37 in (187.3 mm)
Height: 5.94 in (151 mm)
Depth: 5.98 in (152 mm)
Operating altitude: 0...6561.68 ft. (0...2000 m)
Relative humidity: 5...95 % without condensation for operation, 10...95 % without condensation for operation
Protection type: Overload protection, Short-circuit
Output current: 0.5 A
Module type: Screw terminal discrete I/O
Number of slots: 2
Ambient air temperature for operation: 32...140 F (0...60 C)
Product or component type: Modular base controller
Ambient air temperature for storage: -13...158 F (-25...70 C)

Primary voltage: 100...240 V 90...264 V AC
Discrete output number: 12 relay
Input current: 2 mA < 60 A
Integrated connection type: 1 serial link Uni-Telway 19.2 kbit/s, 1 Modbus Modbus RTU 19.2 kbit/s
Immunity to micro breaks: < 20 ms
Memory description: Flash 12 Kwords data, Internal RAM 11 Kwords data
Maximum size of object areas: 1 %MWi internal words, 256 %Mi, 128 %KWi constant words
Execution time per instruction: 0.25 s Boolean without PCMCIA card, 4.81 s arithmetic REAL floating without PCMCIA card
execution time for 1 K instruction: 3.03 100 % Boolean without PCMCIA card, 0.25 65 % Boolean and 35 % numerical without PCMCIA card
Application structure: 1 master task, 1 fast task, 8 event tasks
System overhead: 1.9 ms master task
Network frequency: 50...60 Hz
Total useful secondary power: 24 W
Electromagnetic compatibility: Electrostatic discharge IEC 1000-4-2 level 3, Electromagnetic field immunity test IEC 1000-4-3 level 3, Resistance to fast transient IEC 1000-4-4 level 3, Immunity to impulse waves IEC 1000-4-5, Damped oscillatory wave IEC 1000-4-12, Immunity to electromagnetic interference IEC 61131-2
