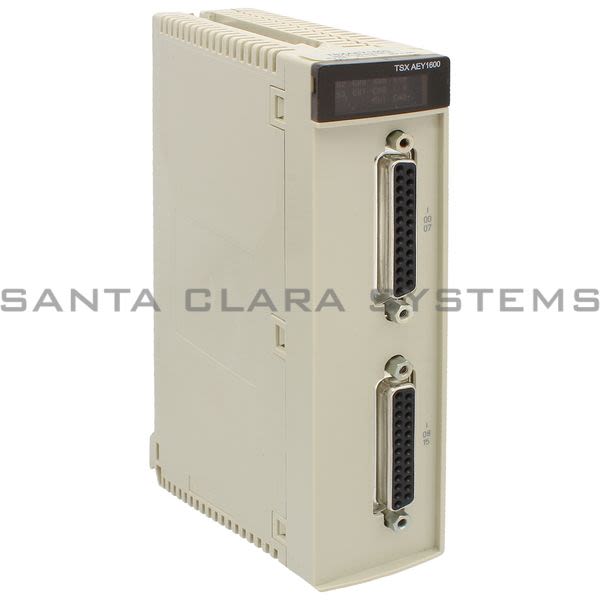

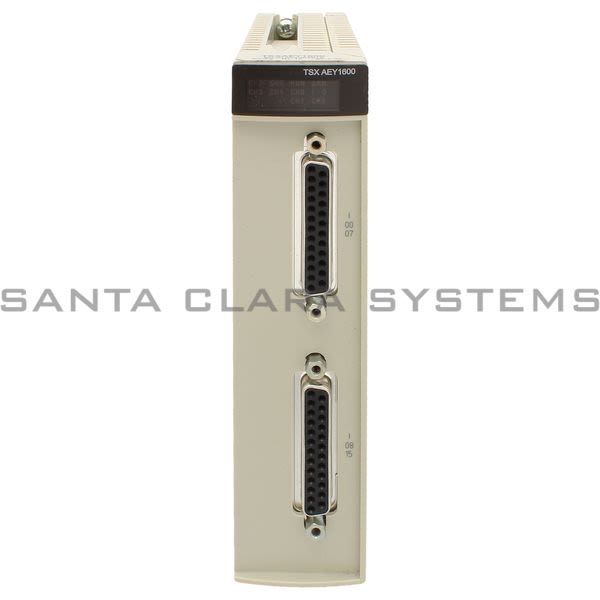

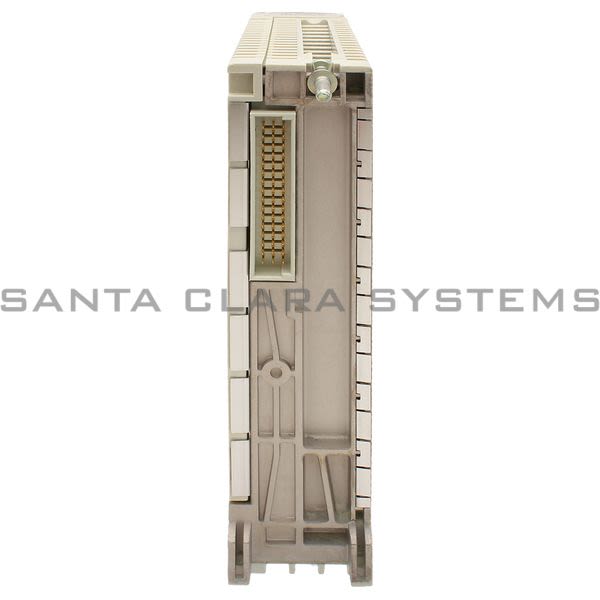

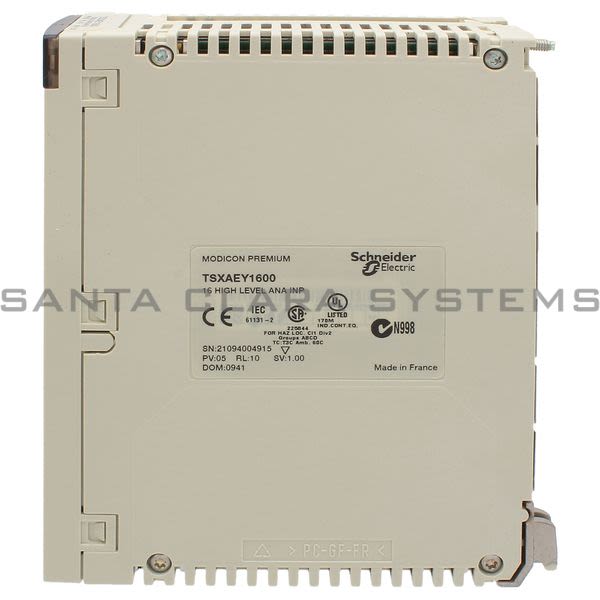

TSXAEY1600

Telemecanique - analog input module Modicon Premium - 16 I multirange

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: analog input module Modicon Premium - 16 I multirange
Product weight: 0.75 lb(US) (0.34 kg)
Range of product: Modicon Premium Automation platform
IP degree of protection: IP20
Standards: IEC 1131
Protective treatment: TC
Operating altitude: 0...6561.68 ft. (0...2000 m)
Electrical connection: 2 connectors SUB-D 25
Relative humidity: 10...95 % without condensation for operation, 5...95 % without condensation for storage
Nominal read cycle time: 51 ms
Product or component type: Analog input module
Fast read cycle time: 3 ms + 3 ms x number of channels used
Product certifications: ABS, RINA, BV, DNV, GL, RMRS, LR
Input level: High level
Measurement error: 0.1 % of full scale +/- 10 V 25 C, 0.1 % of full scale 0...10 V 25 C, 0.1 % of full scale 0...5 V 25 C, 0.1 % of full scale 1...5 V 25 C, 0.13 % of full scale +/- 10 V 0...60 C, 0.13 % of full scale 0...10 V 0...60 C, 0.13 % of full scale 0...5 V 0...60 C, 0.13 % of full scale 1...5 V 0...60 C, 0.16 % of full scale 0...20 mA 25 C, 0.16 % of full scale 4...20 mA 25 C, 0.32 % of full scale 0...20 mA 0...60 C, 0.32 % of full scale 4...20 mA 0...60 C

Ambient air temperature for operation: 32...140 F (0...60 C)
Analogue input number: 16
Isolation between channels and bus: 1000 Vrms
Ambient air temperature for storage: -13...158 F (-25...70 C)
Analogue input type: Current 0...20 mA, Current 4...20 mA, Voltage +/- 10 V, Voltage 0...10 V, Voltage 0...5 V, Voltage 1...5 V
Isolation between channels and ground: 1000 Vrms
Analog/digital conversion: 12 bits
Isolation between channels: Common point
Common mode between channels: None
Input overvoltage protection: -15...15 V at state 0 250 kOhm, -30...30 V at state 1 250 kOhm
Pollution degree: 2
Overcurrent: -30...30 mA at state 1 250 kOhm
Marking: CE
Current consumption: 270 mA 5 V DC
Module format: Standard
