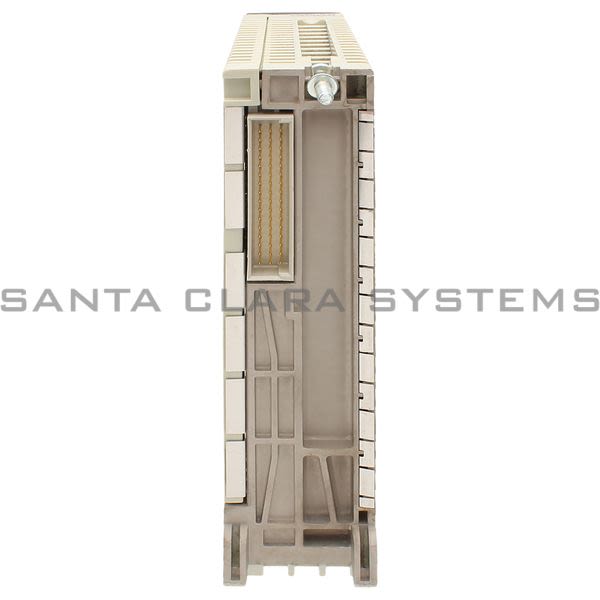

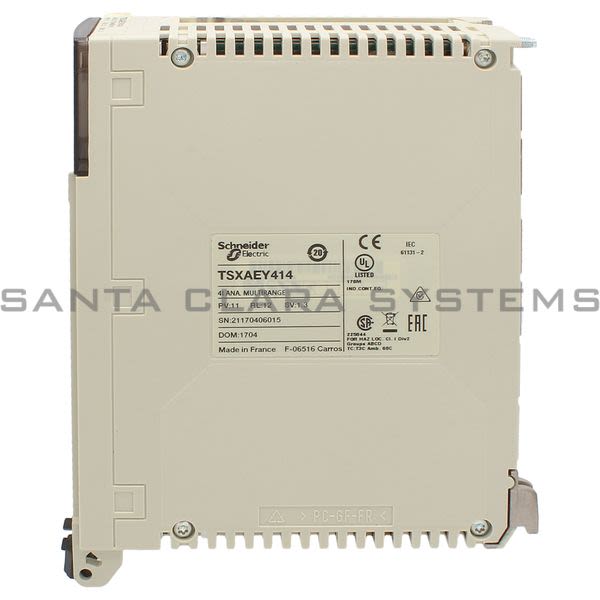

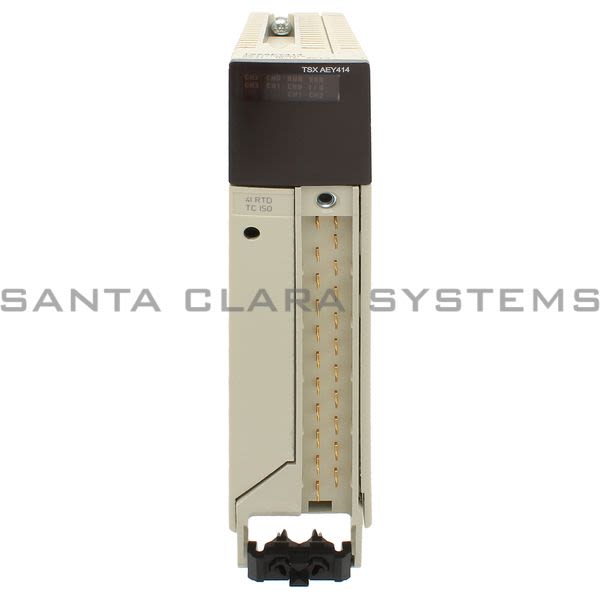

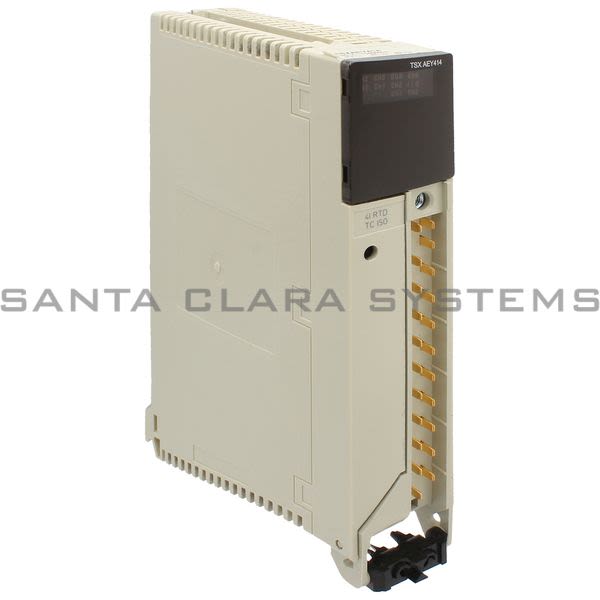

Telemecanique TSX AEY414 analog input module Modicon Premium - 4 I multirange Product Image

TSXAEY414

Telemecanique - analog input module Modicon Premium - 4 I multirange

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: analog input module Modicon Premium - 4 I multirange
Product weight: 0.71 lb(US) (0.32 kg)
Range of product: Modicon Premium Automation platform
IP degree of protection: IP20
Standards: DIN 43760, IEC 584, IEC 1131, IEC 751, NFC 42-330, DIN 43710
Protective treatment: TC
Operating altitude: 0...6561.68 ft. (0...2000 m)
Electrical connection: Screw terminal block
Relative humidity: 10...95 % without condensation for operation, 5...95 % without condensation for storage
Nominal read cycle time: 550 ms
Product or component type: Analog input module
Measurement error: 0.13 % of full scale 0...400 Ohm 25 C, 0.16 % of full scale 0...10 V 25 C, 0.19 % of full scale - 13...63 mV 25 C, 0.22 % of full scale 0...3850 Ohm 25 C, 0.22 % of full scale 0...5 V 25 C, 0.27 % of full scale +/- 10 V 25 C, 0.27 % of full scale +/- 5 V 25 C, 0.27 % of full scale 0...400 Ohm 0...60 C, 0.27 % of full scale 1...5 V 25 C, 0.39 % of full scale 0...10 V 0...60 C, 0.44 % of full scale - 13...63 mV 0...60 C, 0.45 % of full scale 0...5 V 0...60 C, 0.45 % of full scale 4...20 mA 25 C, 0.48 % of full scale 0...3850 Ohm 0...60 C, 0.5 % of full scale +/- 10 V 0...60 C, 0.5 % of full scale +/- 5 V 0...60 C, 0.56 % of full scale 1...5 V 0...60 C, 0.86 % of full scale 4...20 mA 0...60 C, 1.5 C thermocouple B external 25 C, 1.5 C thermocouple E external 25 C, 1.5 C thermocouple T external 25 C, 1.5 C thermocouple U external 25 C, 1.8 C thermocouple J external 25 C, 10.5 C thermocouple K internal 0...60 C, 11 C thermocouple R internal 0...60 C, 12 C thermocouple S internal 0...60 C, 2 C thermocouple L external 25 C, 2 C thermocouple N external 25 C, 2.3 C thermocouple K external 25 C, 3.1 C thermocouple U external 0...60 C, 3.2 C thermocouple E external 0...60 C, 3.2 C thermocouple R external 25 C, 3.2 C thermocouple T external 0...60 C, 3.4 C thermocouple S external 25 C, 3.5 C thermocouple B external 0...60 C, 3.5 C thermocouple B internal 25 C, 3.8 C thermocouple J external 0...60 C, 4.1 C thermocouple L external 0...60 C, 4.3 C thermocouple N external 0...60 C, 4.7 C thermocouple K external 0...60 C, 5.4 C thermocouple U internal 25 C, 6 C thermocouple N internal 25 C, 6 C thermocouple R internal 25 C, 6.1 C thermocouple E internal 25 C, 6.6 C thermocouple S internal 25 C, 6.6 C thermocouple T internal 25 C, 7.3 C thermocouple J internal 25 C, 7.3 C thermocouple U internal 0...60 C, 7.5 C thermocouple L internal 25 C, 7.7 C thermocouple R external 0...60 C, 7.8 C thermocouple K internal 25 C, 8.1 C thermocouple B internal 0...60 C, 8.1 C thermocouple E internal 0...60 C, 8.5 C thermocouple S external 0...60 C, 8.7 C thermocouple N internal 0...60 C, 8.8 C thermocouple T internal 0...60 C, 9.5 C thermocouple J internal 0...60 C, 9.8 C thermocouple L internal 0...60 C, 1 C Ni 1000 25 C, 1.2 C Pt 100 25 C, 2 C Ni 1000 0...60 C, 2.4 C Pt 100 0...60 C, 2.5 C Pt 1000 25 C, 5 C Pt 1000 0...60 C
Product certifications: DNV, RINA, LR, GL, ABS, BV, RMRS
Input level: Low level
Isolation between channels and bus: 1780 Vrms

Ambient air temperature for operation: 32...140 F (0...60 C)
Analogue input number: 4
Isolation between channels and ground: 1780 Vrms
Ambient air temperature for storage: -13...158 F (-25...70 C)
Analogue input type: Current 4...20 mA, Resistor 0...3850 Ohm, Resistor 0...400 Ohm, Temperature probe Ni 1000 2 wires, Temperature probe Ni 1000 4 wires, Temperature probe Pt 100 2 wires, Temperature probe Pt 100 4 wires, Temperature probe Pt 1000 2 wires, Temperature probe Pt 1000 4 wires, Thermocouple thermocouple B, Thermocouple thermocouple E, Thermocouple thermocouple J, Thermocouple thermocouple K, Thermocouple thermocouple L, Thermocouple thermocouple N, Thermocouple thermocouple R, Thermocouple thermocouple S, Thermocouple thermocouple T, Thermocouple thermocouple U, Voltage - 13...63 mV, Voltage +/- 10 V, Voltage +/- 5 V, Voltage 0...10 V, Voltage 0...5 V, Voltage 1...5 V
Isolation between channels: 2830 Vrms
Analog/digital conversion: 16 bits
Common mode between channels: 415 V AC or 200 V DC
Common mode between channels and earth: 240 V AC or 110 V DC
Input overvoltage protection: -15...15 V at state 0 250 Ohm, -30...30 V at state 1 250 Ohm
Pollution degree: 2
Overcurrent: -30...30 mA at state 1 250 kOhm
Marking: CE
Current consumption: 660 mA 5 V DC
Module format: Standard
