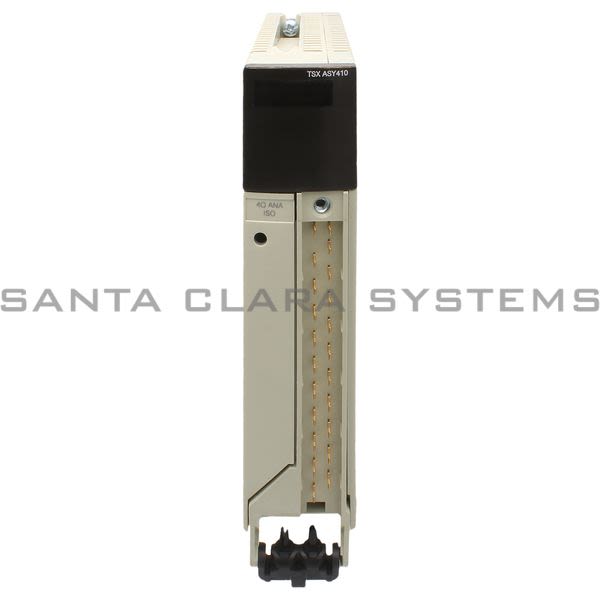

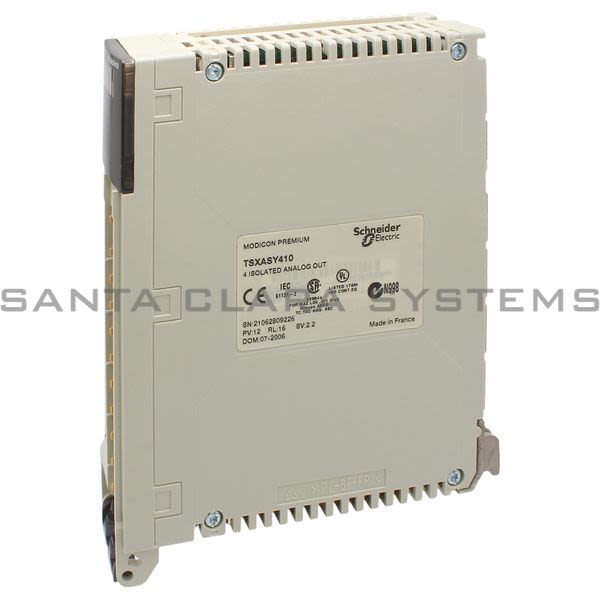

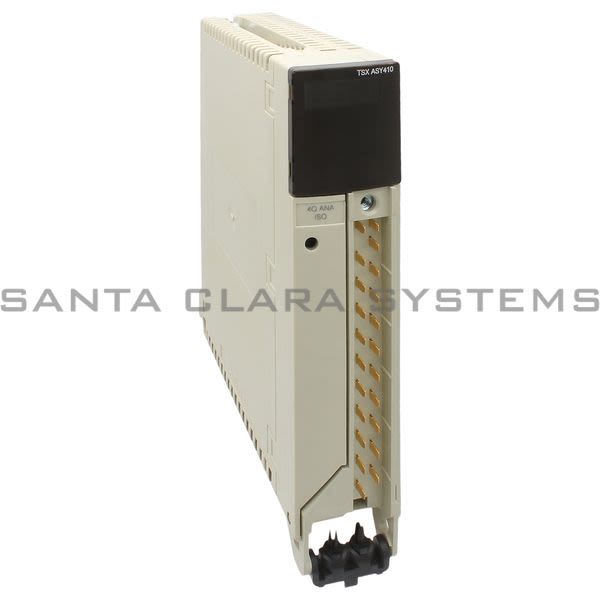

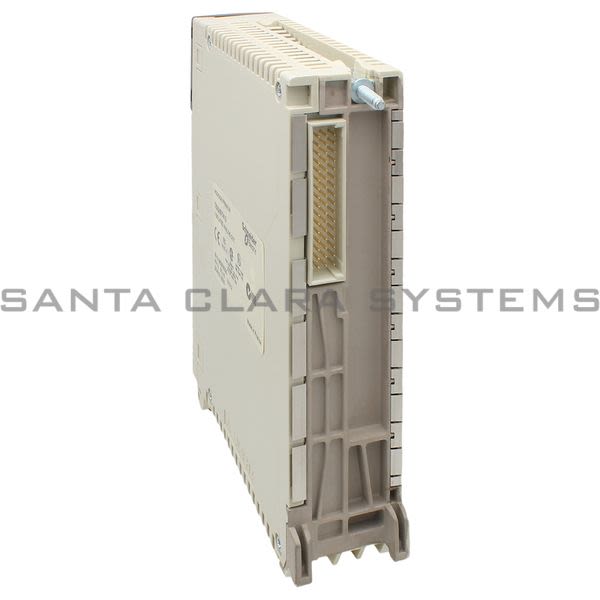

Telemecanique TSX ASY410 analog output module Modicon Premium - 4 O multirange Product Image

TSXASY410

Telemecanique - analog output module Modicon Premium - 4 O multirange

Current response time:

16 Minutes 59 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: analog output module Modicon Premium - 4 O multirange
Product weight: 0.77 lb(US) (0.35 kg)
Range of product: Modicon Premium Automation platform
IP degree of protection: IP20
Standards: UL 508, CSA C22.2 No 213 Class I Division 2 Group C, 93/68/EEC, 89/336/EEC, CSA C22.2 No 213 Class I Division 2 Group D, 92/31/EEC, CSA C22.2 No 213 Class I Division 2 Group B, CSA C22.2 No 142, IEC 61131-2, CSA C22.2 No 213 Class I Division 2 Group A, 73/23/EEC
Protective treatment: TC
Operating altitude: 0...6561.68 ft. (0...2000 m)
Electrical connection: Screw terminal block
Relative humidity: 10...95 % without condensation for operation, 5...95 % without condensation for storage
Protection type: Short-circuit protection, Overload protection
Conversion time: 2.5 ms
Product or component type: Analog output module
Measurement resolution: 10.25 A 0...20 mA, 10.25 A 4...20 mA, 5.12 mV +/- 10 V
Product certifications: DNV, LR, RMRS, BV, RINA, GL, ABS
Analogue output number: 4
Ambient air temperature for operation: 32...140 F (0...60 C)

Analogue output type: Current 0...20 mA, Current 4...20 mA, Voltage +/- 10 V
Measurement error: 0.45 % of full scale +/- 10 V 25 C, 0.52 % of full scale 0...20 mA 25 C, 0.52 % of full scale 4...20 mA 25 C, 0.75 % of full scale +/- 10 V 0...60 C, 0.98 % of full scale 0...20 mA 0...60 C, 0.98 % of full scale 4...20 mA 0...60 C
Ambient air temperature for storage: -13...158 F (-25...70 C)
Analog/digital conversion: 11 bits + sign
Isolation between channels: 1500 Vrms
Isolation between channels and bus: 1500 Vrms
Isolation between channels and ground: 500 V
Output voltage limits: <= 30 V
Pollution degree: 2
Load impedance ohmic: < 600 Ohm 0...20 mA, < 600 Ohm 4...20 mA, > 1000 Ohm +/- 10 V
Load inductance: < 300 H
Load capacitance: < 0.1 F
Marking: CE
Current consumption: 900 mA 5 V DC
Module format: Standard
terminals description PLC n1: (12)OUT_ANA_COM#2, (16)OUT_ANA_VOLT#3, (9)OUT_ANA_SHIELD#, (8)OUT_ANA_CUR#1, (19)OUT_ANA_SHIELD#, (20)OUT_ANA_SHIELD#, (15)OUT_ANA_SHIELD#, (3)OUT_ANA_CUR#0, (5)OUT_ANA_SHIELD#, (11)OUT_ANA_VOLT#2, 1OUT_ANA_VOLT#0, (6)OUT_ANA_VOLT#1, (7)OUT_ANA_COM#1, (4)OUT_ANA_SHIELD#, (13)OUT_ANA_CUR#2, (14)OUT_ANA_SHIELD#, (17)OUT_ANA_COM#3, (18)OUT_ANA_CUR#3, (2)OUT_ANA_COM#0, (10)OUT_ANA_SHIELD#
