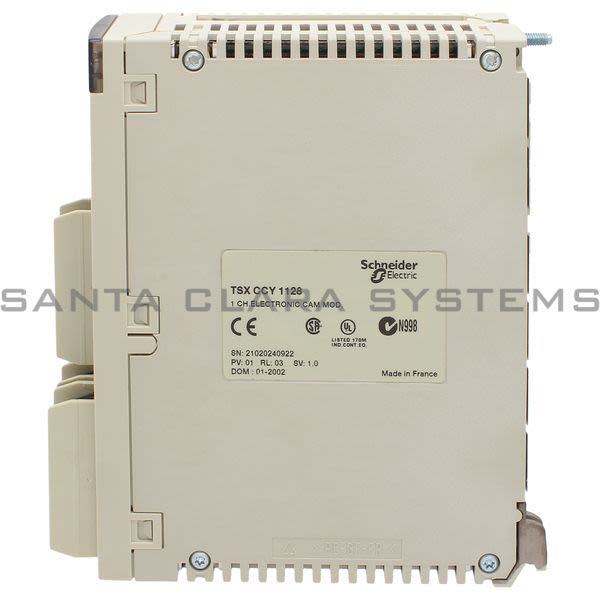

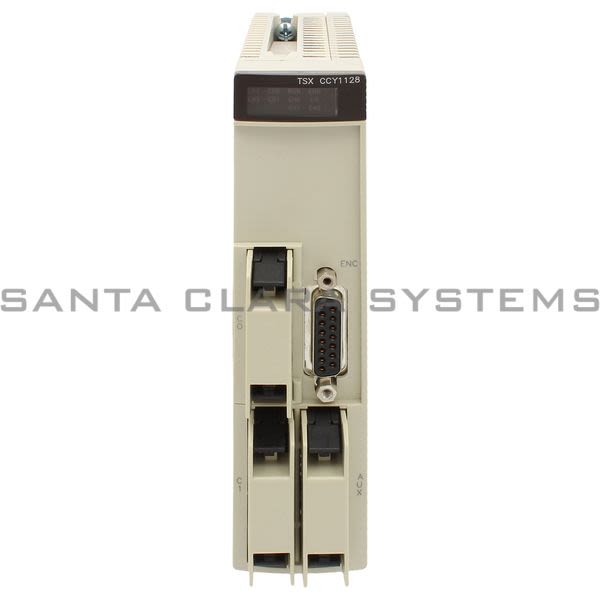

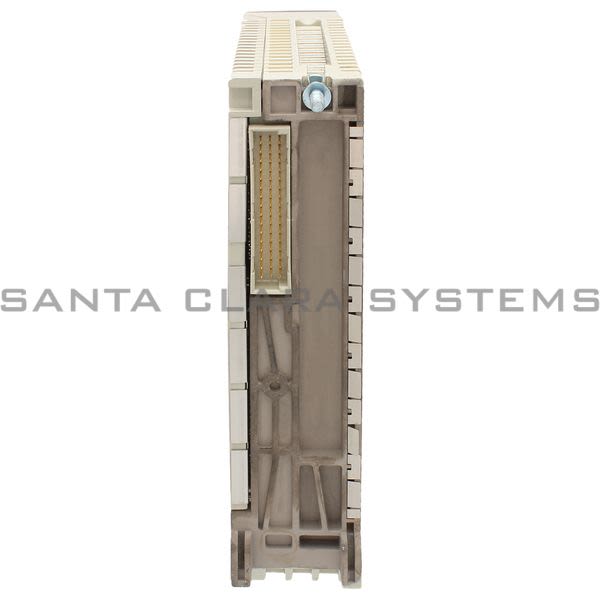

TSXCCY1128

Telemecanique - electronic cam module - 128 cams - 1 axis - 7 W

Product Summary:

Product weight: 1.06 lb(US) (0.48 kg)
Range of product: Modicon Premium Automation platform
Protective treatment: TC
Operating altitude: 0...6561.68 ft. (0...2000 m)
Response time: < 100 µs auxiliary input

Current response time:

7 Minutes 25 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: electronic cam module - 128 cams - 1 axis - 7 W
Product weight: 1.06 lb(US) (0.48 kg)
Range of product: Modicon Premium Automation platform
Protective treatment: TC
Operating altitude: 0...6561.68 ft. (0...2000 m)
Electrical connection: 1 connector HE-10 20 pins for connecting the auxiliary inputs and the encoder power supply1 connector HE-10 20 pins for connecting the track outputs on group 0 and 11 connector HE-10 20 pins for connecting the track outputs on group 2 and 31 connector SUB-D 15 for connecting incremental or absolute encoder
Relative humidity: 10...95 % without condensation for operation5...95 % without condensation for storage
Response time: < 100 µs auxiliary input
Switching frequency: < 0.6/LI² inductive
Output type: Track output conforming to EN/IEC 61131-2
Input voltage: 24 V auxiliary input24 V encoder with 10...30 V
Clock frequency: 200 kHz SSI absolute encoder
Electromagnetic discharge time: < L/R s
Product or component type: Electronic cam module
Incremental encoder frequency x1: 500 kHz
Number of cams: 128
Incremental encoder frequency x 4: 250 kHz
Ambient air temperature for operation: 32...140 °F (0...60 °C)
Number of tracks: 32
power dissipation in W: 7 W
Ambient air temperature for storage: -13...158 °F (-25...70 °C)
Function of module: Parts counterElimination of axis backflashPosition, monostable, brakePosition recalibrationSwitching feedforwardMeasurement captureGeneration of events
Output refresh cycle: <= 100 µs 32<= 200 µs 128<= 50 µs 16
I/O modularity: 1 axis

Input compatibility: Absolute encoder SSI serial outputIncremental encoder 10...30 V totem poleIncremental encoder 5 V DC RS422/485 line emitterAbsolute encoder parallel output ABE7CPA11
Electrical circuit type: Auxiliary input positive conforming to EN/IEC 61131 type 1Incremental encoder with 10...30 V positive or negativeIncremental encoder with RS422 differential
Input current: 8 mA auxiliary input10 mA RS42215.5 mA encoder with 10...30 V
Input voltage limits: <= 5.5 V RS42219...30 V auxiliary input19...30 V encoder with 10...30 V
Voltage state 1 guaranteed: > 3 V RS422>= 11 V auxiliary input>= 11 V encoder with 10...30 V
Current state 1 guaranteed: >= 5 mA encoder with 10...30 V>= 5.8 mA RS422>= 3 mA auxiliary input
Voltage state 0 guaranteed: < 5 V auxiliary input< 5 V encoder with 10...30 V<= -3 V RS422
Current state 0 guaranteed: <= 1.5 mA auxiliary input<= 2 mA encoder with 10...30 V<= -5.8 mA RS422
Input impedance: 3000 Ohm for nominal U auxiliary input1500 Ohm for nominal U encoder with 10...30 V
Output voltage: 24 V DC
Nominal output current: 0.5 A
Rated current: <= 12 A per module<= 6 A per connector<= 0.6 A per output
Output voltage limits: 19...30 V
Output compatibility: Positive logic DC inputs (resistance <= 15 kOhm)
Tungsten load: 10 W
Preactuator voltage detection threshold: < 14 V fault state> 18 V OK state
Output overload protection: Current limiterThermal circuit breaker
Output short-circuit protection: Thermal circuit breakerCurrent limiter
Output overvoltage protection: Zener diode
Reverse polarity protection: Reverse diode on power supply
Checks: Monitoring peactuator power supply
Local signaling: 1 LED green channel diagnostics operative (CH0)1 LED green processor running (RUN)1 LED red I/O module or configuration fault (I/O)1 LED red processor or system fault (ERR)
Current consumption: 660 mA 5 V DC15 mA 24 V DC
Module format: Standard
