TSXDEY64D2K
In stock and ready to ship
Product Summary:
- Product weight: 0.82 lb(US) (0.37 kg)
- Range of product: Modicon Premium Automation platform
- IP degree of protection: IP20
- Protective treatment: TC
- Operating altitude: 0...6561.68 ft. (0...2000 m)
Get a Quote
Current response time:
5 Minutes 18 Seconds

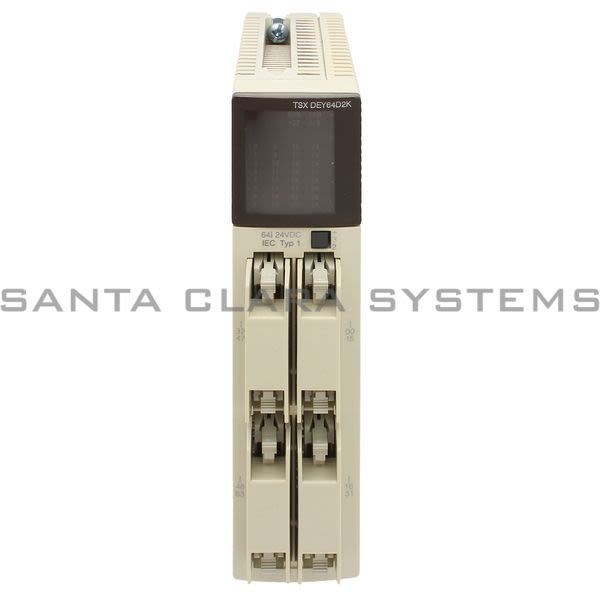

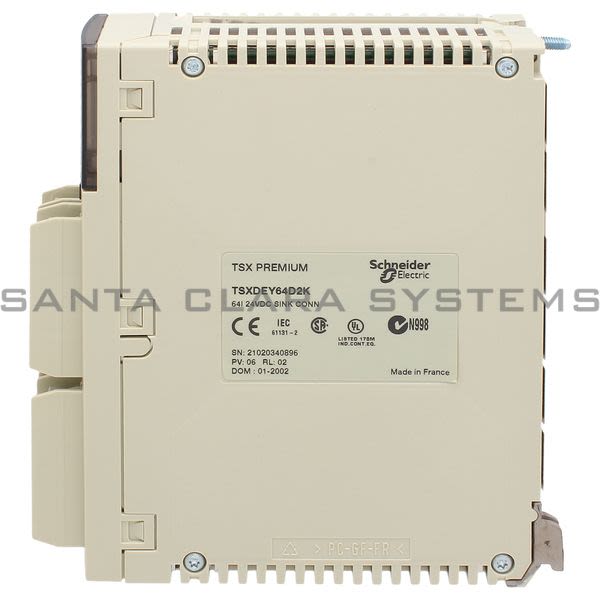

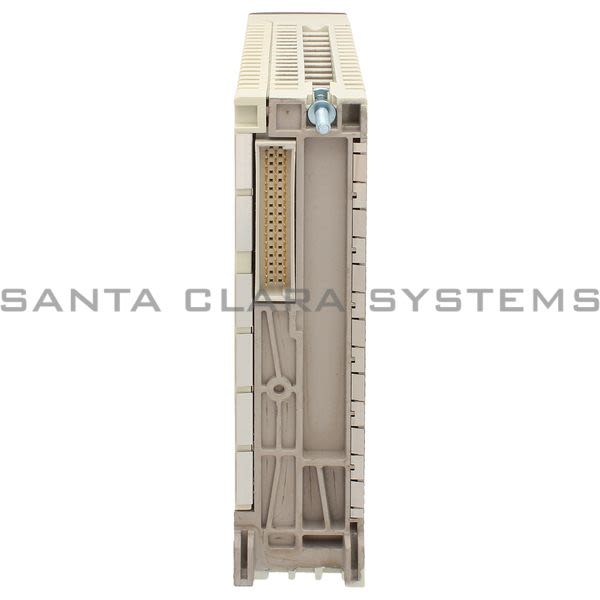

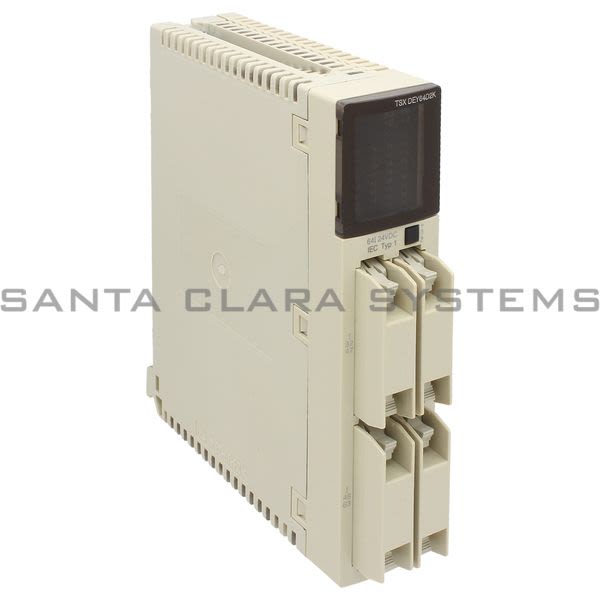

- Description: discrete input module Modicon Premium - 64 I 24 V DC
- Product weight: 0.82 lb(US) (0.37 kg)
- Range of product: Modicon Premium Automation platform
- IP degree of protection: IP20
- Standards: 93/68/EEC73/23/EECUL 508IEC 60664CSA C22.2 No 142CSA C22.2 No 213 Class I Division 2 Group ACSA C22.2 No 213 Class I Division 2 Group D92/31/EECEN/IEC 61131-2CSA C22.2 No 213 Class I Division 2 Group BCSA C22.2 No 213 Class I Division 2 Group C89/336/EEC
- Protective treatment: TC
- Operating altitude: 0...6561.68 ft. (0...2000 m)
- Electrical connection: HE-10 connector
- Insulation resistance: < 10 MOhm 500 V DC
- Relative humidity: 10...95 % without condensation for operation5...95 % without condensation for storage
- Response time: <= 7 ms4 ms
- Voltage state 1 guaranteed: >= 11 V
- Dielectric strength: 1500 V AC at 50/60 Hz
- Product or component type: Discrete input module
- Current state 1 guaranteed: >= 3 mA
- Discrete input number: 64 current sink isolated conforming to EN/IEC 61131-2 type 1
- Voltage state 0 guaranteed: <= 5 V
- Product certifications: RMRSLRGLBVABSRINADNV
- Discrete input voltage: 24 V DC positive
- Current state 0 guaranteed: <= 1.5 mA
- Ambient air temperature for operation: 32...140 °F (0...60 °C)
- Sensor power supply: 19...30 V
- Input impedance: 6300 Ohm at state 1
- Ambient air temperature for storage: -13...158 °F (-25...70 °C)
- Discrete input current: 3.5 mA
- Power dissipation: (1.5 W + 0.1 W x No of channels used)
- Marking: CE
- Pollution degree: 2
- Current consumption: 155 mA 5 V DC315 mA 24 V DC
- Module format: Standard
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on TSXDEY64D2K . Santa Clara Systems carries 10,643 items from Telemecanique.
- Discrete Input Module Modicon Premium - 64 I 24 V Dc
