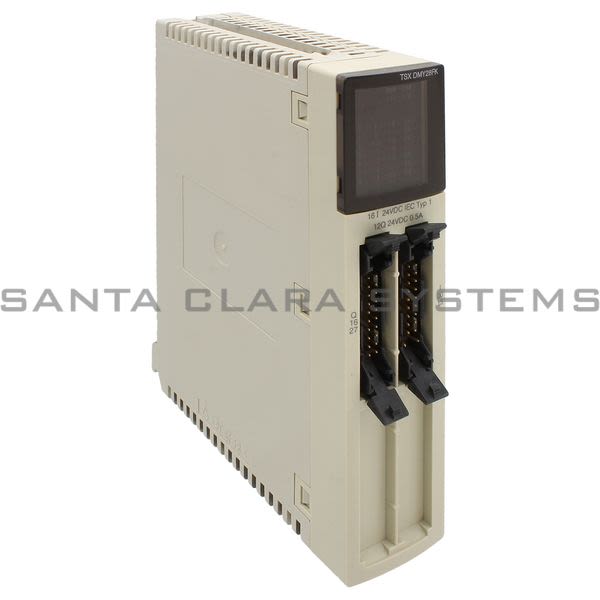

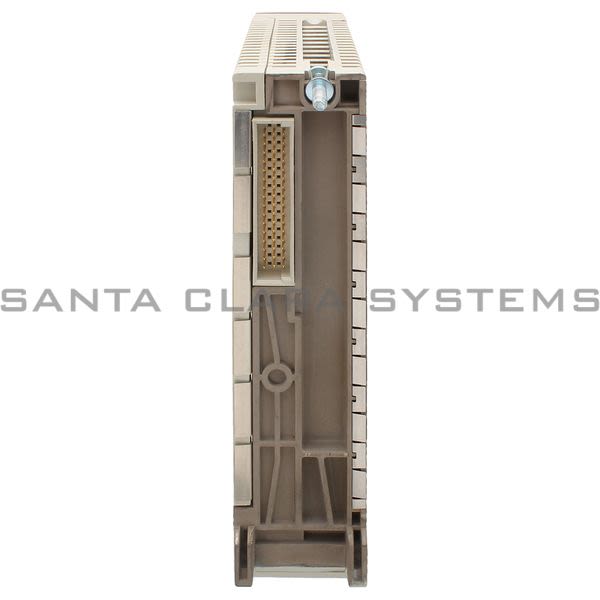

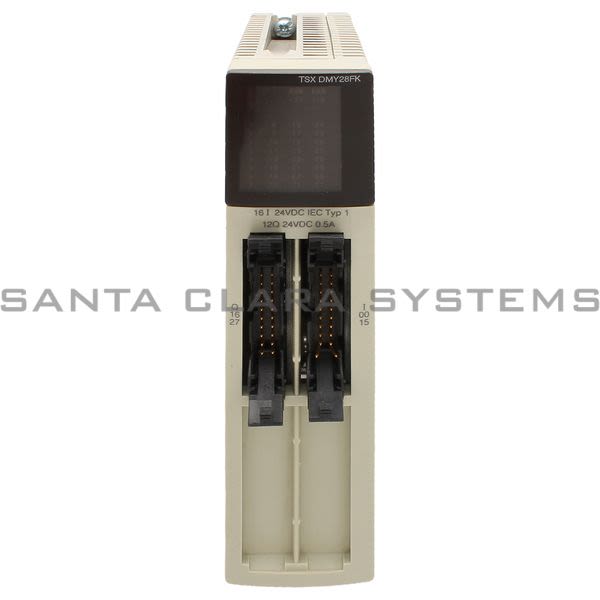

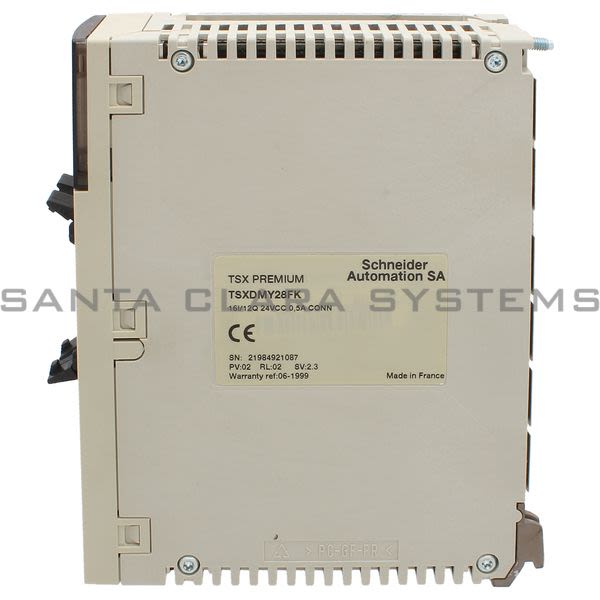

TSXDMY28FK

Telemecanique - discrete I/O module Modicon Premium - 16 I 24 V DC - 12 O solid state

Product Summary:

Product weight: 0.71 lb(US) (0.32 kg)
Range of product: Modicon Premium Automation platform
Operating altitude: <= 6561.68 ft. (2000 m)
Electrical connection: 2 connectors HE-10
Insulation resistance: > 10 MOhm 500 V DC

Current response time:

By 5AM PT on Wednesday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: discrete I/O module Modicon Premium - 16 I 24 V DC - 12 O solid state
Product weight: 0.71 lb(US) (0.32 kg)
Range of product: Modicon Premium Automation platform
Operating altitude: <= 6561.68 ft. (2000 m)
Electrical connection: 2 connectors HE-10
Insulation resistance: > 10 MOhm 500 V DC
Relative humidity: 5...95 % without condensation
Switching frequency: 0.5/LI² Hz
Input voltage: 24 V 3.5 mA DC
Voltage state 1 guaranteed: >= 11 V
Dielectric strength: 1500 V 50/60 Hz for 1 minute
Product or component type: Discrete I/O modules
Current state 1 guaranteed: >= 3 mA
Derating factor: 60 % of inputs at state 1 at 140 °F (60 °C) fast input60 % of the maximum current of the module at 140 °F (60 °C) solid state output
discrete I/O number: 28
Voltage state 0 guaranteed: <= 5 V
Ambient air temperature for operation: 32...140 °F (0...60 °C)
Discrete input number: 16 current sink fast input - conforming to IEC 1131-2 Type 1
Current state 0 guaranteed: <= 1.5 mA
Ambient air temperature for storage: -13...158 °F (-25...70 °C)
Input logic: Positive

Sensor power supply: 19...30 V
Filter time: 0.1 to 7.5 ms by configuration4 ms by default
Paralleling of inputs: Yes
Input compatibility: 2-wire/3-wire proximity sensor
Power dissipation: 1.2 W + 0.1 x number of input at 1
Discrete output number: 12
Tungsten load: 6 W solid state output
Output voltage: 24 V 0.5 A
Discrete output type: Solid state
Output voltage limits: 19...30 V
Output current limits: 4 A by module0.5 A by channel
Leakage current: < 1 mA at state 0
[Ures] residual voltage: < 1.2 V at state 1
Load impedance: >= 48 W
Response time on output: 0.6 ms
Output overvoltage protection: By transil diode
Reverse polarity protection: Reversed diode
Preactuator voltage detection threshold: 16 V
Current consumption: 300 mA 5 V DC75 mA 24 V DC
Module format: Standard
