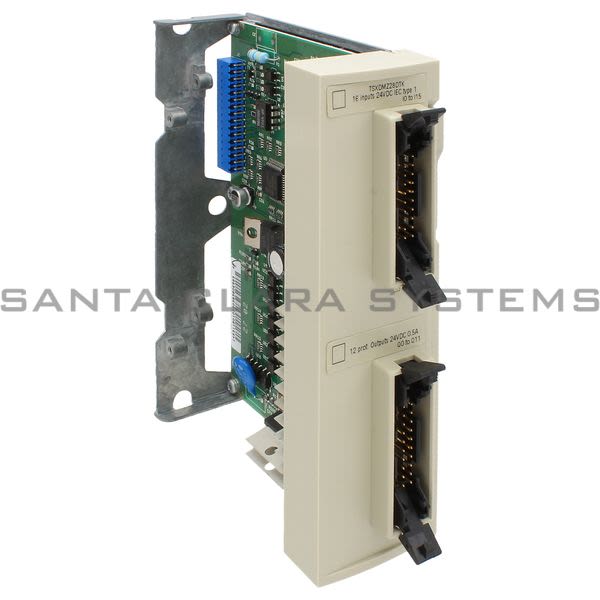

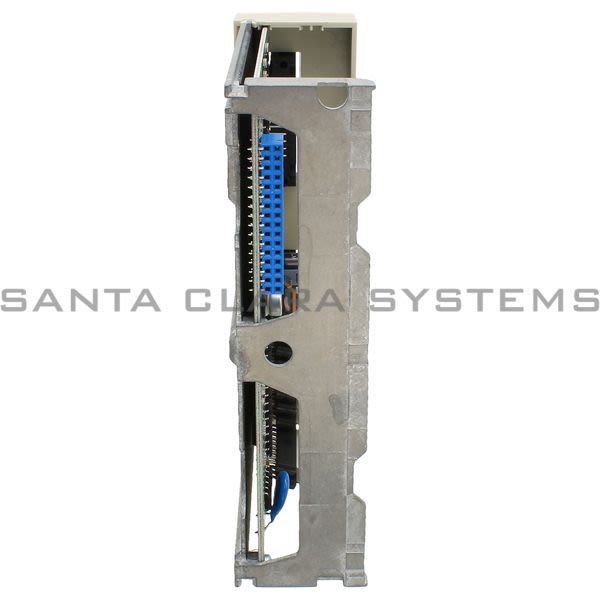

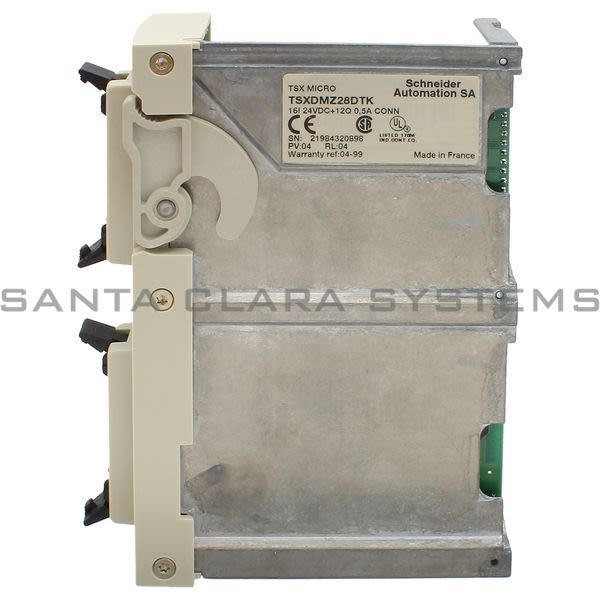

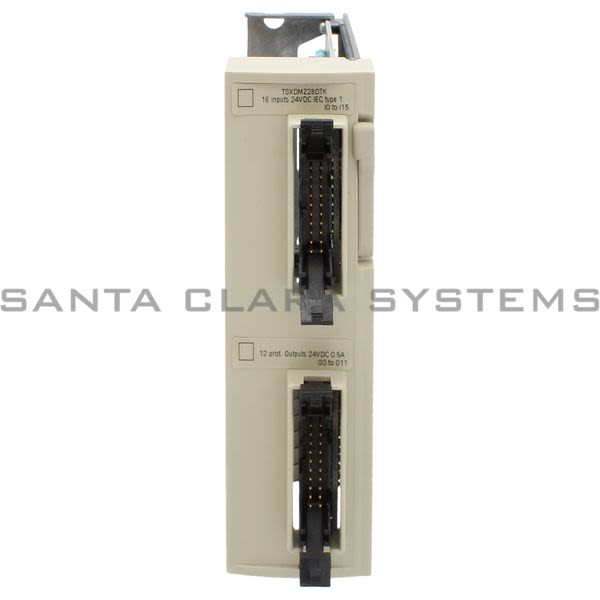

TSXDMZ28DTK

Telemecanique - TSX Micro - 28 I/O solid state

Current response time:

4 Minutes 36 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TSX Micro - 28 I/O solid state
Product weight: 0.73 lb(US) (0.33 kg)
Range of product: Modicon TSX Micro automation platform
Standards: IEC 1131-2 Type 1
Response time: <= 0.5 ms from state 1 to state 0 output<= 0.5 ms from state 0 to state 1 output0.1...7.5 ms from state 1 to state 0 input0.1...7.5 ms from state 0 to state 1 input
Switching frequency: < 0.6/LI² Hz
Input voltage limits: >= 11 V at state 1< 5 V at state 0
Product or component type: Discrete solid state I/O base DC
Current state 0 guaranteed: <= 1.5 mA
Discrete input number: 16 1 HE-10 connector
Current state 1 guaranteed: >= 2.5 mA
Discrete input voltage: 24 V DC positive
Input impedance: 3.4 Ohm
Discrete input current: 7 mA
Discrete input type: Resistive
Input compatibility: 2-wire/3-wire proximity sensor

Discrete output number: 12 1 HE-10 connector
Current consumption: 132 mA
Discrete output voltage: 24 V DC
power dissipation in W: 3.5 W by module output0.15 W by channel output5 W input
Discrete output current: 0.5 mA
Output voltage limits: 19...30 V
Discrete output logic: Positive
Output current limits: 0.625 A
Leakage current: <= 0.5 mA at state 0
[Ures] residual voltage: <= 0.3 V
Load impedance ohmic: 48 Ohm
Output overvoltage protection: By zener diode
Output short-circuit protection: By current limiter and electronic circuit breaker
Reverse polarity protection: Reverse diode on power supply
Paralleling of outputs: Yes : 2 maximum
Isolation voltage: 1500 V 1 s
