TSXDSY08T22

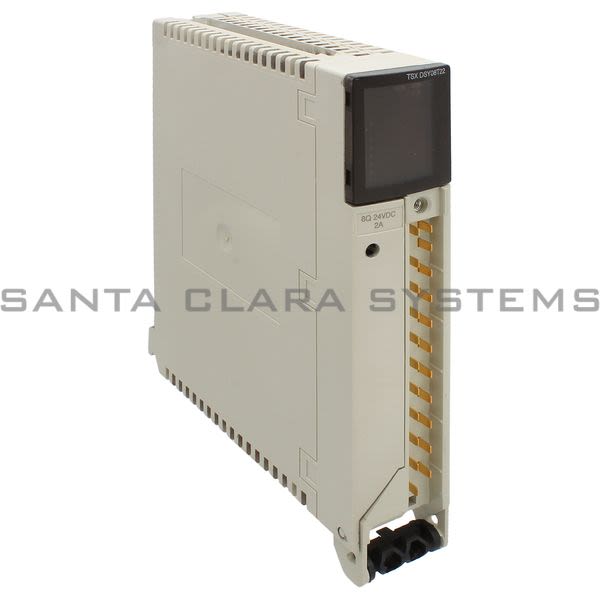

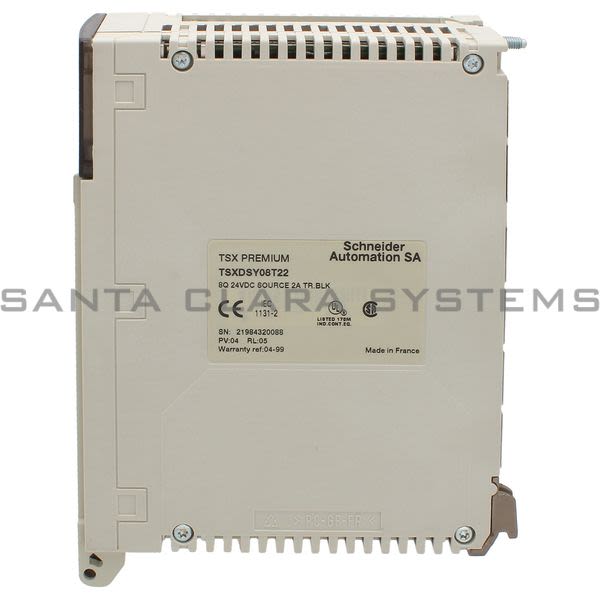

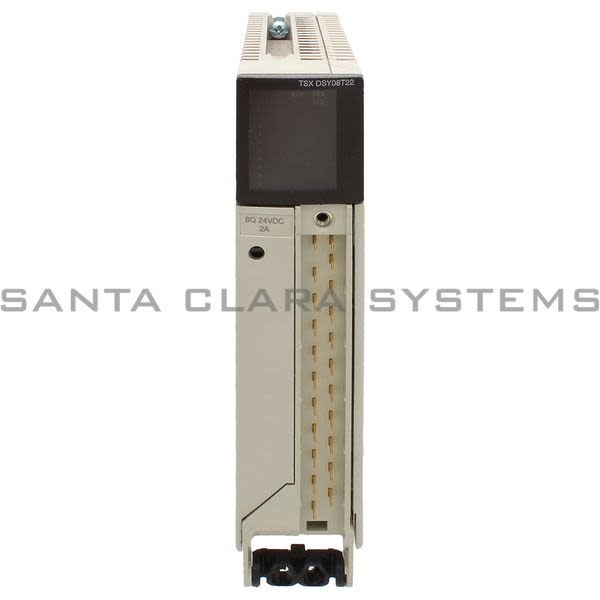

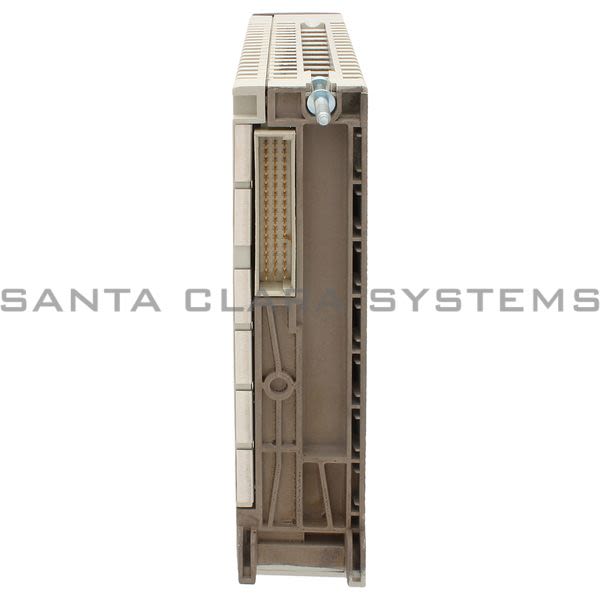

Telemecanique - discrete output module Modicon Premium - 8 O solid state

Product Summary:

Product weight: 0.9 lb(US) (0.41 kg)
Range of product: Modicon Premium Automation platform
IP degree of protection: IP20
Protective treatment: TC
Operating altitude: 0...6561.68 ft. (0...2000 m)

Current response time:

5 Minutes 15 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: discrete output module Modicon Premium - 8 O solid state
Product weight: 0.9 lb(US) (0.41 kg)
Range of product: Modicon Premium Automation platform
IP degree of protection: IP20
Standards: CSA C22.2 No 213 Class I Division 2 Group BCSA C22.2 No 213 Class I Division 2 Group ACSA C22.2 No 213 Class I Division 2 Group DIEC 61131-2UL 50873/23/EECCSA C22.2 No 14292/31/EEC89/336/EEC93/68/EECCSA C22.2 No 213 Class I Division 2 Group C
Protective treatment: TC
Operating altitude: 0...6561.68 ft. (0...2000 m)
Electrical connection: Screw terminal block
Insulation resistance: > 10 MOhm 500 V
Relative humidity: 10...95 % without condensation for operation5...95 % without condensation for storage
Response time: 0.2 ms
Switching frequency: 0.5/LI² Hz
Current per channel: <= 2.5 A
Dielectric strength: 1500 V 50/60 Hz 60 s
Product or component type: Discrete output module
Current per module: <= 14 A
Discrete output number: 8
Leakage current: < 1 mA at state 0

Product certifications: DNVABSBVLRRINARMRSGL
Discrete output type: Solid state protected
[Ures] residual voltage: < 0.5 V
Ambient air temperature for operation: 32...140 °F (0...60 °C)
Discrete output voltage: 24 V DC positive conforming to EN/IEC 61131-2 19...30 V
Ambient air temperature for storage: -13...158 °F (-25...70 °C)
Discrete output current: 2:00 AM
Output overvoltage protection: By transil diode
Reverse polarity protection: Reverse mounted diode
Output overload protection: Electronic tripping on reactivation
Short-circuit protection: Electronic tripping on reactivation
Pollution degree: 2
Preactuator voltage detection threshold: 16 V
Load impedance: >= 12 W
Power dissipation: (1.3 W + 0.2 W x No of outputs x current per module)
Marking: CE
Current consumption: 55 mA 5 V DC
Module format: Standard
