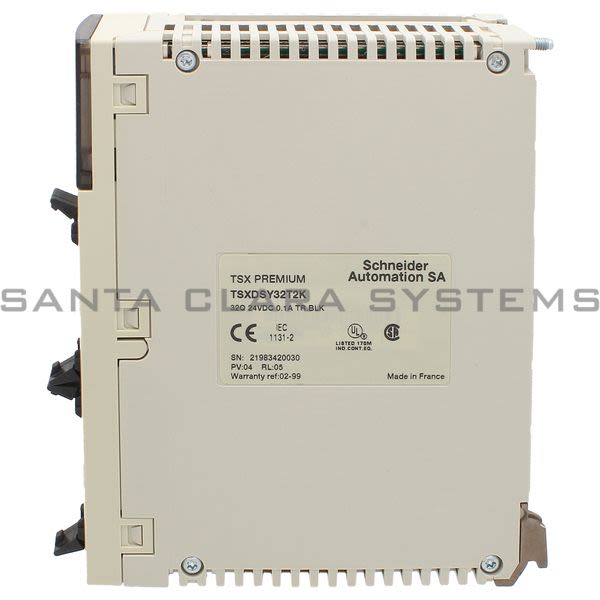

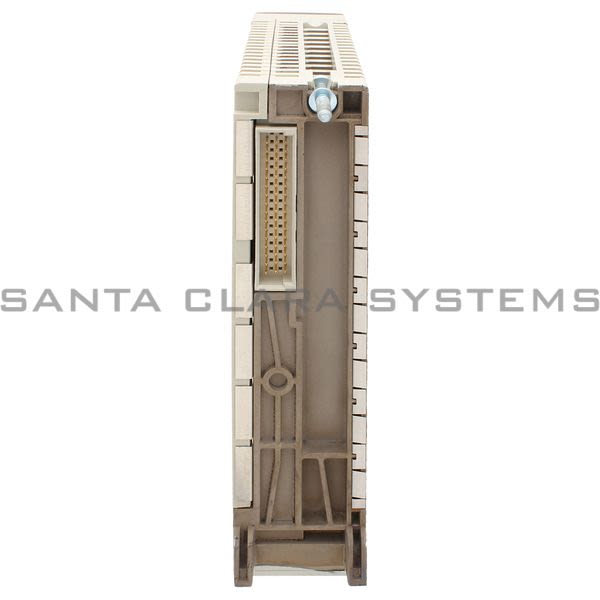

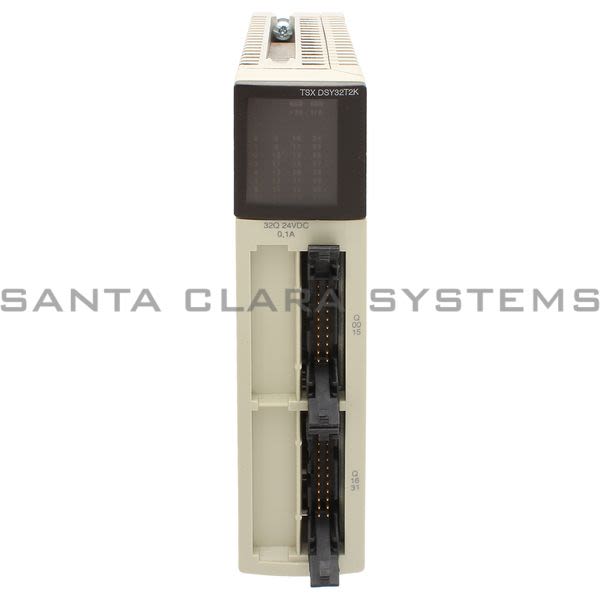

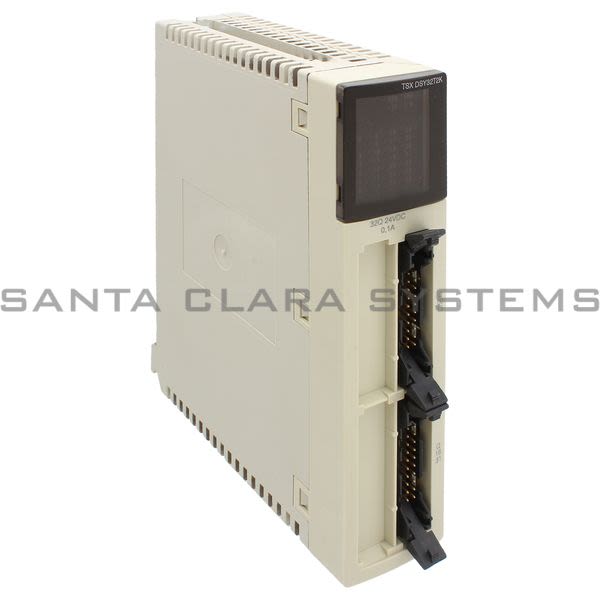

- Description: discrete output module Modicon Premium - 32 O solid state
- Product weight: 0.66 lb(US) (0.3 kg)
- Range of product: Modicon Premium Automation platform
- IP degree of protection: IP20
- Standards: IEC 61131-2CSA C22.2 No 213 Class I Division 2 Group BUL 508CSA C22.2 No 213 Class I Division 2 Group C93/68/EEC89/336/EECCSA C22.2 No 213 Class I Division 2 Group ACSA C22.2 No 142CSA C22.2 No 213 Class I Division 2 Group D92/31/EEC73/23/EEC
- Protective treatment: TC
- Operating altitude: 0...6561.68 ft. (0...2000 m)
- Electrical connection: 2 connectors HE-10
- Insulation resistance: > 10 MOhm 500 V
- Relative humidity: 10...95 % without condensation for operation5...95 % without condensation for storage
- Response time: 1.2 ms
- Current per channel: <= 0.1 A
- Dielectric strength: 1500 V 50/60 Hz 60 s
- Product or component type: Discrete output module
- Current per module: <= 3.2 A
- Discrete output number: 32
- Leakage current: < 0.1 mA 30 V
- Product certifications: DNVBVGLRMRSRINALRABS
- Discrete output type: Solid state protected
- Tungsten load: <= 1.2 W
- Ambient air temperature for operation: 32...140 °F (0...60 °C)
- Discrete output voltage: 24 V DC positive conforming to EN/IEC 61131-2 19...30 V
- [Ures] residual voltage: < 1.5 V
- Ambient air temperature for storage: -13...158 °F (-25...70 °C)
- Paralleling of outputs: Yes : 3 maximum
- Output overvoltage protection: By transil diode
- Reverse polarity protection: Reverse mounted diode
- Output overload protection: Automatic trip
- Pollution degree: 2
- Short-circuit protection: Automatic trip
- Load impedance: > 220 W at state 1
- Power dissipation: (1.6 W + 0.1 W x No of outputs)
- Product compatibility: Dial and Power
- Marking: CE
- Current consumption: 140 mA 5 V DC
- Module format: Standard
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on TSXDSY32T2K . Santa Clara Systems carries 10,460 items from Telemecanique.
- Discrete Output Module Modicon Premium - 32 O Solid State
