TSXDSZ32R5

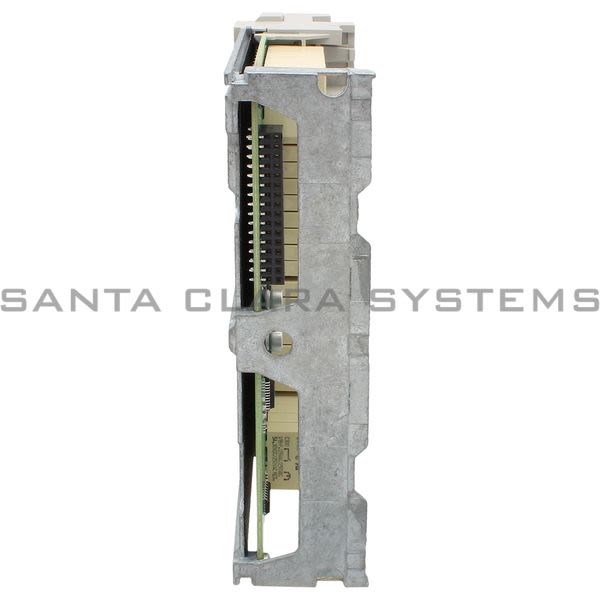

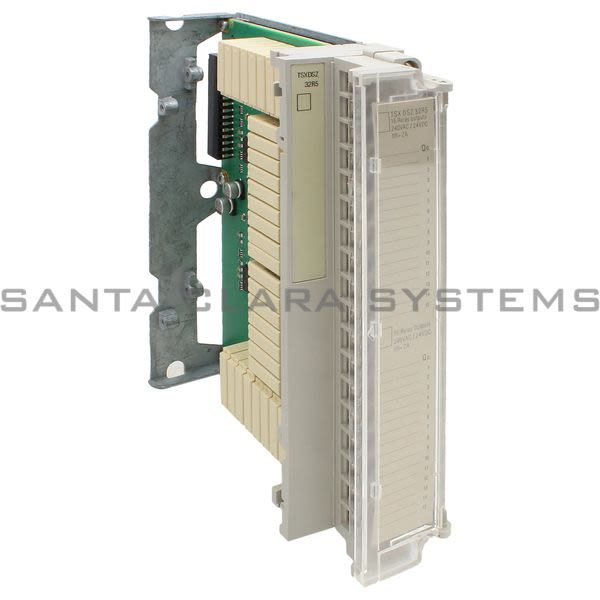

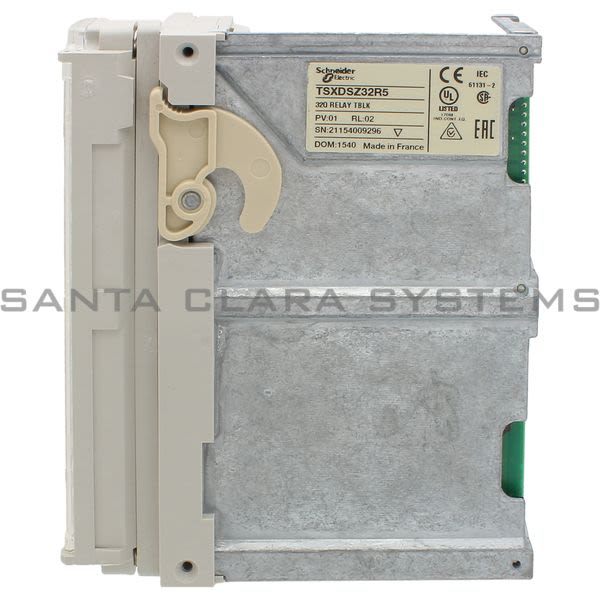

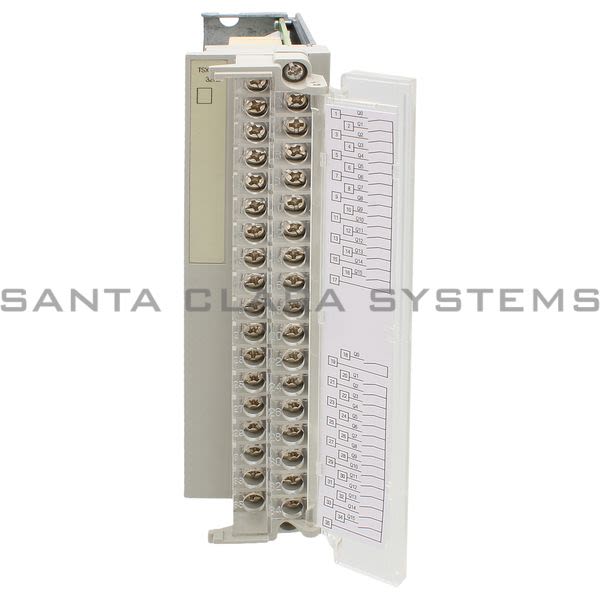

Telemecanique - TSX Micro - 32 output relay

Product Summary:

Range of product: Modicon TSX Micro automation platform
[Ith] conventional free air thermal current: 2:00 AM
Insulation resistance: >= 10 mOhm
Category: 22556 - TSX MICRO, PL7 MICRO & ACCESS
Returnability: N

Current response time:

13 Minutes 33 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TSX Micro - 32 output relay
Range of product: Modicon TSX Micro automation platform
[Ith] conventional free air thermal current: 2:00 AM
Insulation resistance: >= 10 mOhm
Category: 22556 - TSX MICRO, PL7 MICRO & ACCESS
Returnability: N
Country of origin: FR
Response time: < 10 ms
Output voltage limits: 19...264 V AC10...34 V DC
Product or component type: Relay discrete output module
Discount Schedule: PC14

Discrete output number: 32 screw terminal block
power consumption in VA: 50 VA 24 V AC-12 resistive24 VA 24 V AC-15 inductive100 VA 48 V AC-12 resistive200 VA 110...120 V AC-12 resistive200 VA 200...240 V AC-12 resistive50 VA 48 V AC-15 inductive50 VA 110...120 V AC-15 inductive50 VA 200...240 V AC-15 inductive
GTIN: 785901761570
Contacts type and composition: NO
power consumption in W: 24 V DC-12 resistive24 V DC-13 inductive
Nbr. of units in pkg.: 1
Package weight(Lbs): 2
Current consumption: 175 mA
power dissipation in W: 3.5 W
Isolation voltage: 1500 V 1 s

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on TSXDSZ32R5 . Santa Clara Systems carries 10,643 items from Telemecanique.
