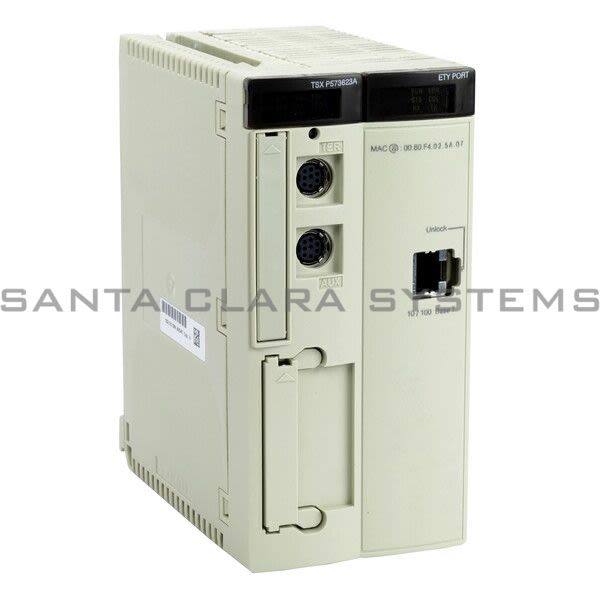

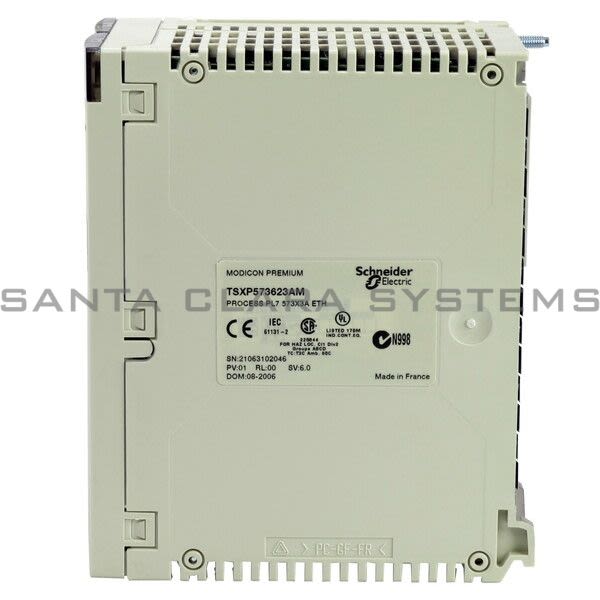

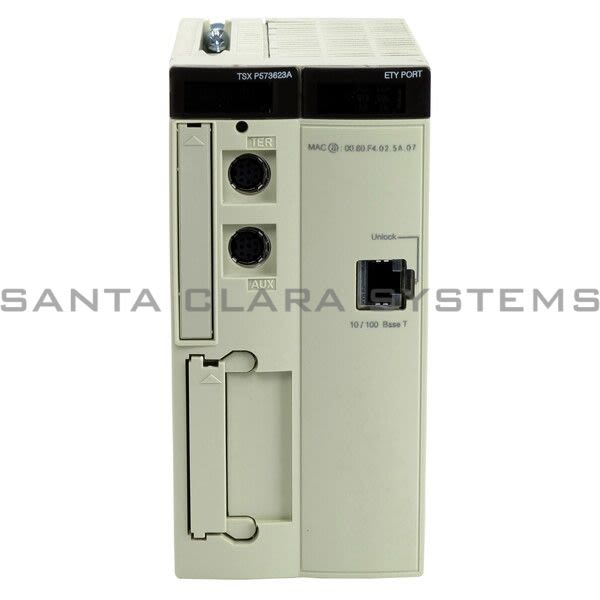

- Description: double-format PL7 processor - Transparent Ready - 1360 mA
- Range Of Product: Modicon Premium Automation platform
- IP degree of protection: IP20
- Standards: UL 508, CSA C22.2 No 142, 73/23/EEC, IEC 61131-2, CSA C22.2 No 213 Class I Division 2 Group D, 89/336/EEC, CSA C22.2 No 213 Class I Division 2 Group A, CSA C22.2 No 213 Class I Division 2 Group C, 93/68/EEC, 92/31/EEC, CSA C22.2 No 213 Class I Division 2 Group B
- Protective Treatment: TC
- Operating altitude: 0...6561.68 ft. (0...2000 m)
- Relative humidity: 10...95 % without condensation for operation, 5...95 % without condensation for storage
- Product Or Component Type D: Double-format PL7 processor
- Number Of Racks: 16 4/6/8 slots, 8 12 slots
- Discrete I/O Processor Capacity: 1024 I/O
- Analogue I/O Processor Capacity 1: 128 I/O
- Number Of Application Specific Channel: <= 32
- Number Of Process Control Channel: <= 15 up to 45 simple loops
- Integrated Connection Type: Ethernet TCP/IP RJ45 10/100 Mbit/s, Non isolated serial link 2 female mini DIN 19.2/115 kbit/s
- Communication Module Processor: 1 fieldbus modules (1 if CANopen used) 2 fieldbus modules 2 network modules 8 AS-Interface bus modules
- Memory Description: Internal RAM (with PCMCIA card) 80 Kwords data, Internal RAM (without PCMCIA card) 64 Kwords program and data, PCMCIA card 2688 Kwords additional data storage, PCMCIA card 384 Kwords program
- Software Designation: PL7 Junior/Pro
- Concept: Transparent Ready
- Product or component type: Double-format PL7 processor
- Product certifications: DNV, LR, RINA, RMRS, ABS, BV, GL
- Number of slots: 96, 128, 64
- Ambient air temperature for operation: 32...140 F (0...60 C)
- Ambient air temperature for storage: -13...158 F (-25...70 C)
- analogue I/O processor capacity: 128 I/O
- Communication module processor capacity: 2 fieldbus, 2 network module, 1 fieldbus modules (1 if CANopen used), 8 AS-Interface bus modules
- Pollution degree: 2
- Maximum size of object areas: 16384 %Mi located internal bits, 30.5 %MWi internal words located internal data, 32 %KWi constant words located internal data
- Application structure: 1 master task, 1 fast task, 64 event tasks
- Execution time per instruction: 0.12 s Boolean without PCMCIA card, 0.17 s Boolean with PCMCIA card, 0.17 s word or fixed-point arithmetic without PCMCIA card, 2.6 s floating points with PCMCIA card, 0.33 s word or fixed-point arithmetic with PCMCIA card, 2.5 s floating points without PCMCIA card
- Number of instructions per ms: 3.08 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card, 4.49 Kinst/ms 100 % Boolean with PCMCIA card, 4.7 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card, 6.57 Kinst/ms 100 % Boolean without PCMCIA card
- System overhead: 0.29 ms fast task, 1.15 ms master task
- Marking: CE
- Local signaling: 1 LED green Ethernet TCP/IP port ready (RUN), 1 LED green processor running (RUN), 1 LED red collision detection (COL), 1 LED red Ethernet TCP/IP port fault (ERR), 1 LED red I/O module or configuration fault (I/O), 1 LED red processor or system fault (ERR), 1 LED yellow activity on the terminal port (TER), 1 LED yellow Ethernet link diagnostics (STS), 1 LED yellow reception activity (RX), 1 LED yellow transmission activity (TX)
- Current consumption: 1360 mA 5 V DC
- Module format: Double
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on TSXP573623AM . Santa Clara Systems carries 10,300 items from Telemecanique.
- Double-Format Pl7 Processor - Transparent Ready - 1360 Ma
