VC3GUN

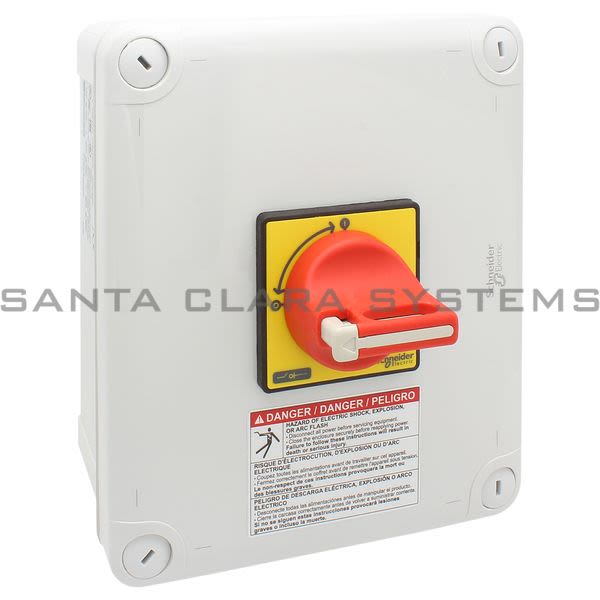

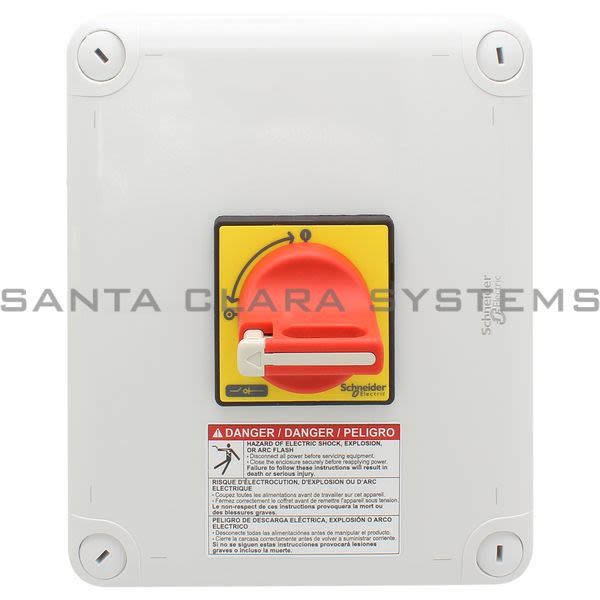

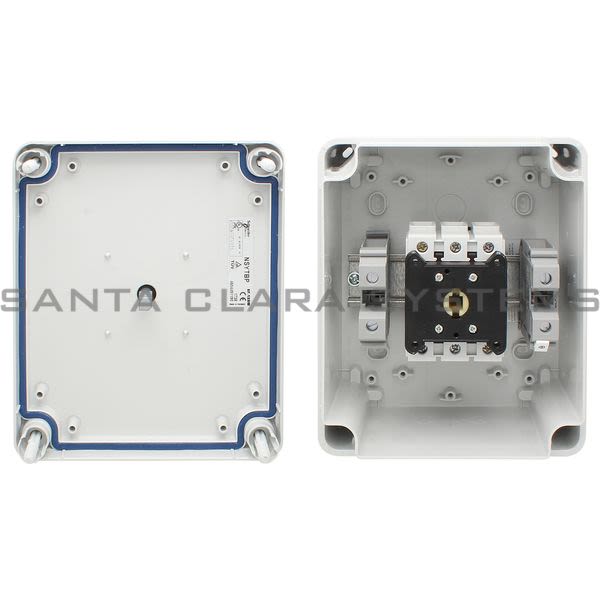

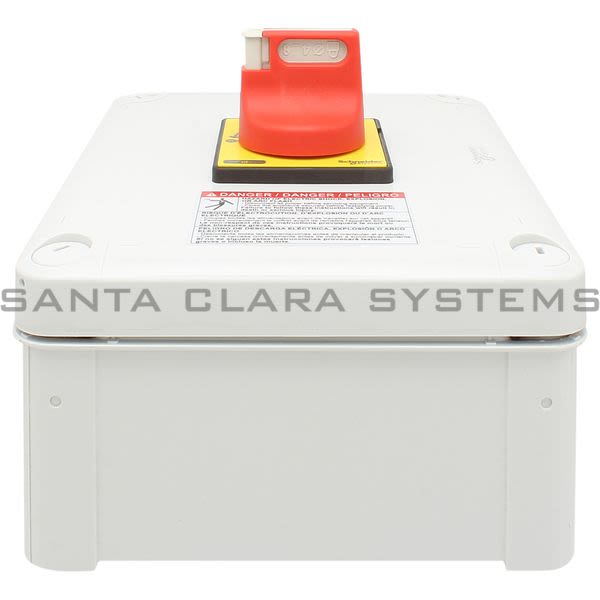

Telemecanique - Emergencty Stop Switch Disconnector

Current response time:

By 5AM PT on Thursday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Emergencty Stop Switch Disconnector
Product weight: 1.1 lb(US) (0.5 kg)
IP degree of protection: IP65 conforming to IEC 60529
Standards: CSA C22.2 No 14IEC 60204UL 508IEC 60947-4-1
Device short name: VC-GUN
Width: 2.36 in (60 mm)
Height: 3.27 in (83 mm)
Depth: 2.56 in (65 mm)
Protective treatment: TC
[Uimp] rated impulse withstand voltage: 8 kV
Mechanical durability: 30000 cycles
Tightening torque: Power circuit: 35.4 lbf.in (4 N.m) - on screw clamp terminals
Connections - terminals: Power circuit : screw clamp terminals cable 25 mm² - cable stiffness: solid - with cable end cable endPower circuit : screw clamp terminals cable 16 mm² - cable stiffness: flexible -
Range: TeSys
System Voltage: 690 V AC/DC 50/60 Hz
Product name: TeSys VARIO
Electrical durability: 30000 cycles DC-1...530000 cycles AC-21
[Ie] rated operational current: 41.5 A AC-23A 400 V
Poles description: 3P
Control type: Rotary handle
Breaking capacity: 500 A at 400 V (AC-21A)500 A at 400 V (AC-22A)500 A at 400 V (AC-23A)

Handle color: Red
Marking: 0 - 1
Product or component type: Enclosed switch disconnector
[Ithe] conventional enclosed thermal current: 63 A IEC 600 V45 A UL 600 V
NEMA degree of protection: NEMA 12NEMA 1
Performance level: High performance
Mechanical robustness: Vibrations 10...150 Hz 1 gn IEC 60068-2-6Shocks 11 ms 30 Gn IEC 60068-2-27
rated operational power in W: 18.5 kW at 400 V AC-322 kWat 400 V AC-23
Ambient air temperature for operation: -4...122 °F (-20...50 °C)
Intermittent duty class: 30
Making capacity: 630 A at 400 V AC-21A630 A at 400 V AC-22A630 A at 400 V AC-23A
Handle front plate color: Yellow
[Icm] rated short-circuit making capacity: 2.1 kA at 400 V at Ipeak
Rotary handle padlocking: 1 to 3 padlocks with 0.16...0.31 in (4...8 mm)
Rated power in hp: 10 hp UL 240 V20 hp UL 480 V30 hp UL 600 V
[Icw] rated short-time withstand current: 756 A at 400 V during 1 s
Rated conditional short-circuit current: 10 kA at 400 V - associated fuse 63 A aM10 kA at 400 V - associated fuse 63 A gG
Environmental characteristic: Standard environment
Suitability for isolation: Yes
Fire resistance: 1760 °F (960 °C) conforming to IEC 60595-2-1
Base dimension: 60 x 60 mm
