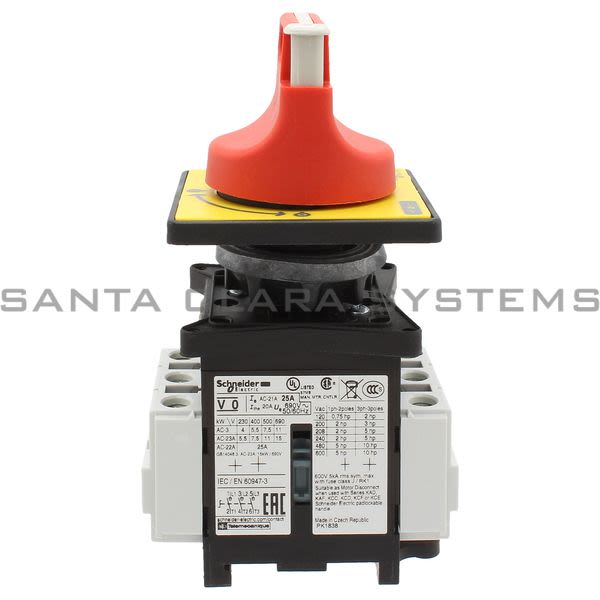

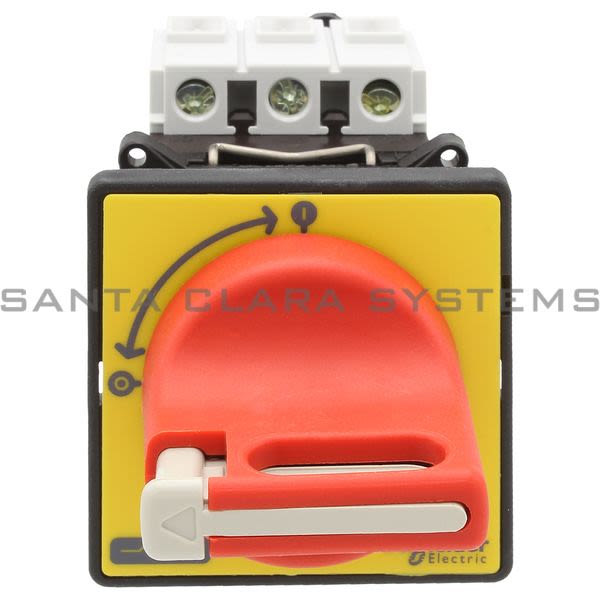

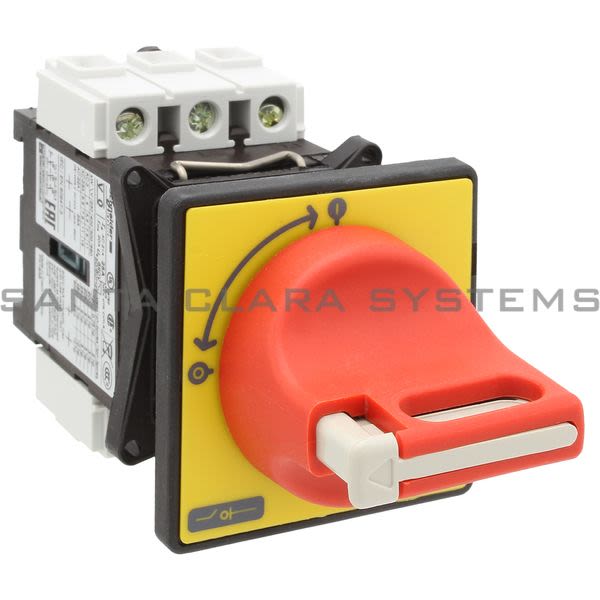

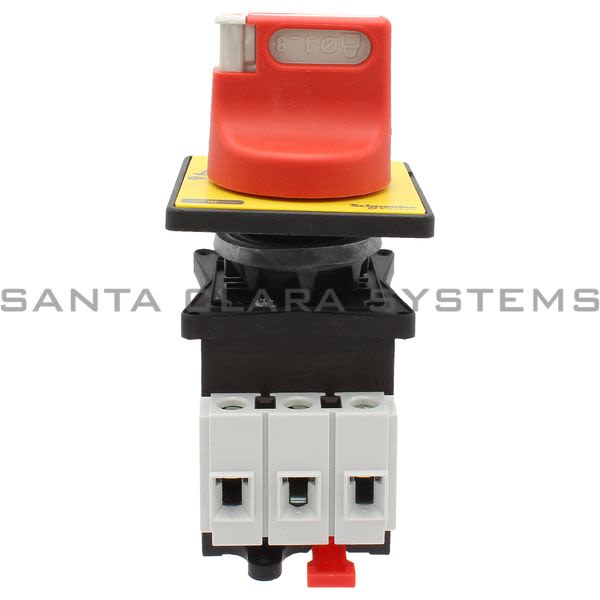

Telemecanique - TeSys Vario - emergency stop switch disconnector - 25 A - on door

Current response time:

By 5AM PT on Thursday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys Vario - emergency stop switch disconnector - 25 A - on door
Product weight: 0.47 lb(US) (0.215 kg)
IP degree of protection: IP65, IP20 conforming to IEC 60529
Standards: IEC 60947-3
Device short name: VCD
Width: 2.36 in (60 mm)
Height: 2.91 in (74 mm)
Protective treatment: TC
[Uimp] rated impulse withstand voltage: 8 kV
Mechanical durability: 100000 cycles
Tightening torque: Power circuit: 18.58 lbf.in (2.1 N.m) - on screw clamp terminals
Connections - terminals: Power circuit: screw clamp terminals cable 0.01 in (6 mm) - cable stiffness: flexible - with cable end, Power circuit: screw clamp terminals cable 0.02 in (10 mm) - cable stiffness: solid
Range: TeSys
Mounting support: Handle mounting on door, Switch mounting on door
[Ith] conventional free air thermal current: 25 A
System Voltage: 690 V AC 50/60 Hz
Product name: TeSys VARIO
Electrical durability: 30000 cycles DC-1...5, 100000 cycles AC-21
[Ie] rated operational current: 14.5 A (AC-23) at 400 V
Poles description: 3P
Control type: Rotary handle
Breaking capacity: 200 A at 400 V AC-21A, 200 A at 400 V AC-22A, 200 A at 400 V AC-23A
Handle color: Red
Product or component type: Emergency stop switch disconnector

Performance level: High performance
Contacts type and composition: 3 NO
Network type: AC, DC
Rotary handle mounting style: Direct
Handle colour: Red
Handle front plate colour: Yellow
Suitability for isolation: Yes
Rotary handle padlocking: 1 to 3 padlocks 0.16...0.31 in (4...8 mm)
Marking: 0 - 1
Product certifications: GL, CCC, UL, CSA
Fixing mode: Hole with 0.89 in (22.5 mm)for handle
Mechanical robustness: Vibrations 10...150 Hz 1 gn IEC 60068-2-6, Shocks 11 ms 30 Gn IEC 60068-2-27
Ambient air temperature for operation: -4...122 F (-20...50 C)
Fire resistance: 1760 F (960 C) conforming to IEC 60695-2-1
[Ithe] conventional enclosed thermal current: 20 A
rated operational power in W: 11 kW at 500 V (AC-23A), 11 kW at 690 V (AC-3), 15 kW at 690 V (AC-23A), 4 kW at 230...240 V (AC-3), 5.5 kW at 400...415 V (AC-3), 7.5 kW at 500 V (AC-3), 5.5 kW at 230...240 V (AC-23A), 7.5 kW at 400...415 V (AC-23A)
Intermittent duty class: 30
Handle front plate color: Yellow
Making capacity: 250 A at 400 V (AC-21A), 250 A at 400 V (AC-22A), 250 A at 400 V (AC-23A)
[Icm] rated short-circuit making capacity: 1 kA at 400 V at Ipeak
[Icw] rated short-time withstand current: 300 A at 400 V during 1 s
Rated conditional short-circuit current: 10 kA at 400 V - associated fuse 25 A aM, 10 kA at 400 V - associated fuse 25 A gG
Device composition: Handle, Switch
Base dimension: 60 x 60 mm
