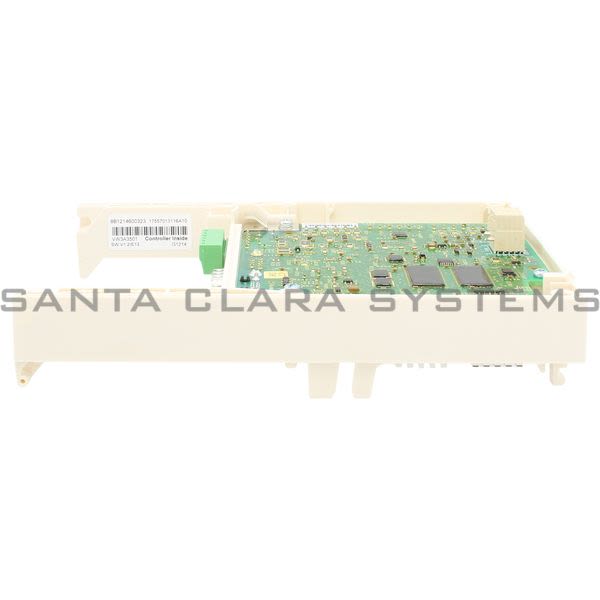

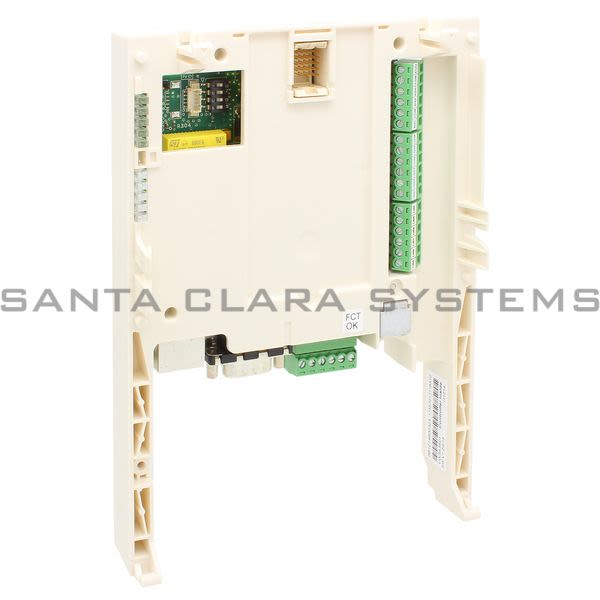

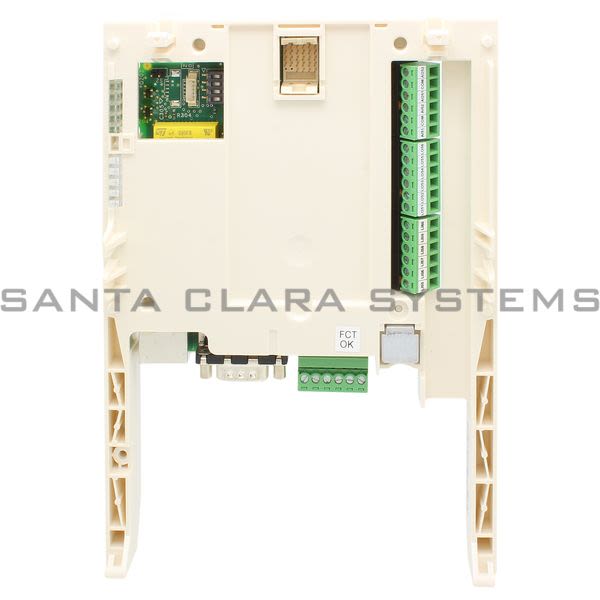

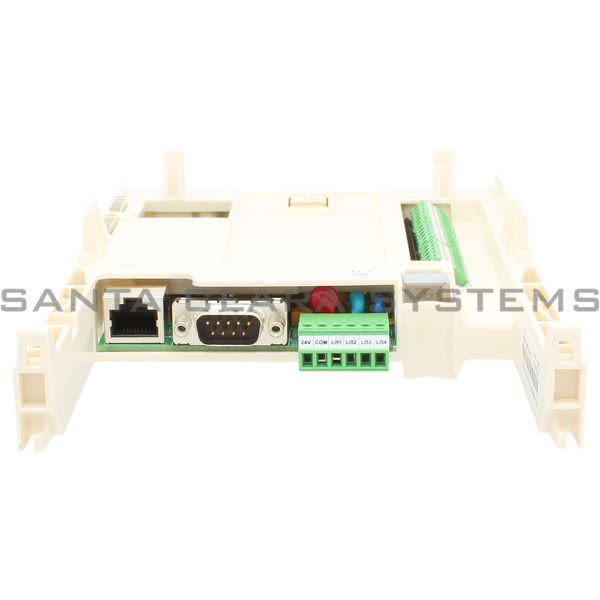

VW3A3501

Telemecanique - Controller Card

Product Summary:

Product weight: 0.71 lb(US) (0.32 kg)
Electrical connection: Terminal, 1.5 mm² / AWG 16, 2.21 lbf.in (0.25 N.m)
[Us] rated supply voltage: 24 V
Category: 22135 - ATV61-71 ACCESSORIES
Returnability: Y

Current response time:

17 Minutes 12 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Controller Card
Product weight: 0.71 lb(US) (0.32 kg)
Electrical connection: Terminal, 1.5 mm² / AWG 16, 2.21 lbf.in (0.25 N.m)
[Us] rated supply voltage: 24 V
Category: 22135 - ATV61-71 ACCESSORIES
Returnability: Y
Country of origin: ID
Product or component type: Controller inside programmable card
Supply voltage limits: 19...30 V
Range compatibility: Altivar LiftAltivar 61QAltivar 71Altivar 71QAltivar 61
Current consumption: 2 A maximum200 mA maximum per logic output80 mA no load
Discount Schedule: CP4C
Discrete output voltage: 24 V DC, maximum switching voltage: 30 V logic output
GTIN: 785901504085
Supply circuit type: DC
Output current limits: 0.2 A, logic output
Nbr. of units in pkg.: 1
Analogue input number: 2
Package weight(Lbs): 1

Analogue input type: AI51, AI52 current analog input: 0...20 mA, impedance: 250 Ohm, resolution: 10 bits
Battery life: 8 yr
Analogue output number: 2
Communication port protocol: CANopen
Analogue output type: AO51, AO52 current analog output: 0...20 mA, impedance: 500 Ohm, resolution: 10 bits
Connector type: 9-way male SUB-D connector
Discrete input number: 10
Method of access: Master
Discrete input type: (LI51...LI60) logic inputs, 24 V DC, compatible with level 1 PLC (voltage limits:<= 30 V), impedance: 4.4 kOhm
Number of addresses: 1...32
Discrete input logic: (LI51...LI60) positive state 0 <= 5 V state 1 >= 11 V
Communication service: 2 client SDOs per slave10 receive and transmit PDOs in total for each slaveEmergency, boot-up, syncDSP 405DS 301 V4.02
Discrete output number: 6
Display type: 1 LED ERROR (fault)1 LED RUN (status)
Discrete output type: (LO51...LO56) logic output, compatible with level 1 PLC
Discrete output logic: (LO51...LO56) positive
Battery type: Lithium
Application program desc: Compiled program size : 320 kB maximumData size : 64 kwords maximumData size accessible by Modbus : 2 kwordsData saved size : 4 kwords
Transmission rate: 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps
