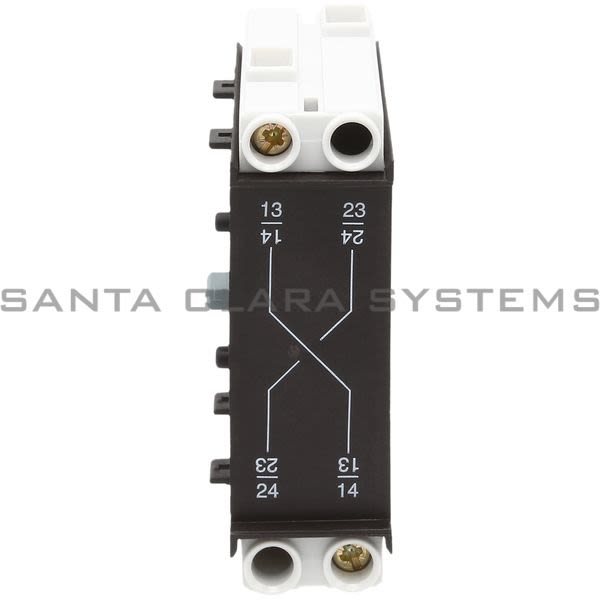

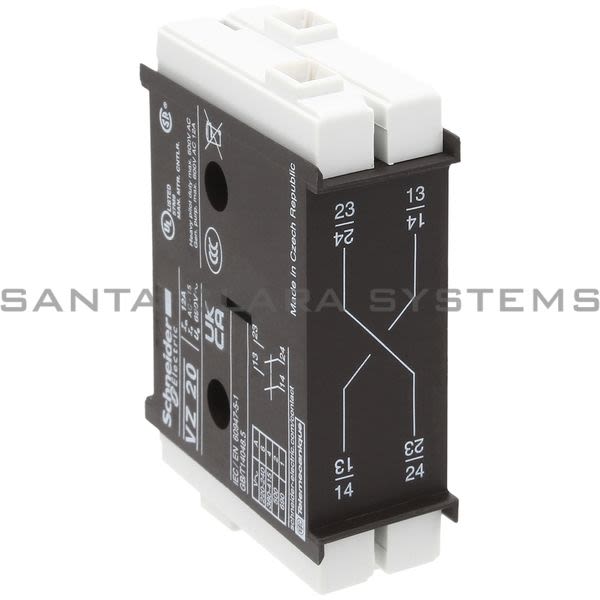

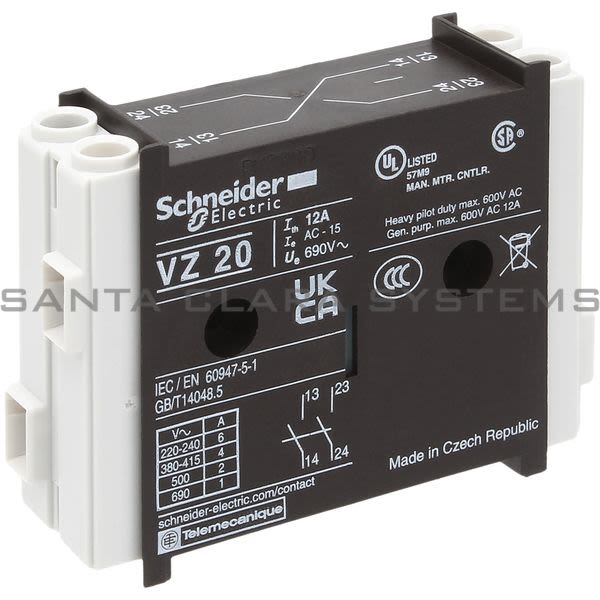

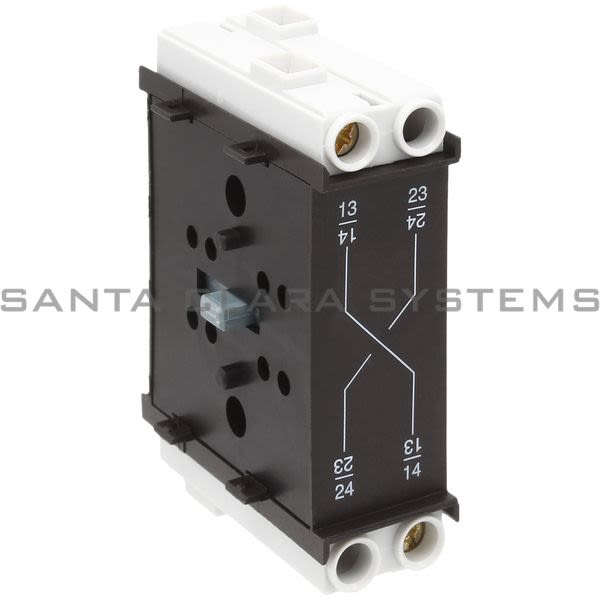

VZ20

Telemecanique - TeSys VARIO - auxiliary contact block - 1 NO + 1 NO

Current response time:

By 5AM PT on Thursday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys VARIO - auxiliary contact block - 1 NO + 1 NO
Product weight: 0.11 lb(US) (0.05 kg)
IP degree of protection: IP20 conforming to IEC 60529
Standards: IEC 60947-5
Device short name: VZ
Width: 0.79 in (20 mm)
Height: 2.56 in (65 mm)
Depth: 1.91 in (48.5 mm)
Protective treatment: TC
[Uimp] rated impulse withstand voltage: 8 kV
Mechanical durability: 100000 cycles
Tightening torque: 6.19 lbf.in (0.7 N.m) - on screw clamp terminals
Connections - terminals: Screw clamp terminals 2 cable 0...0 in² (0.75...1.5 mm²) - cable stiffness: flexible - with cable end cable endScrew clamp terminals 2 cable 0...0 in² (1...2.5 mm²) - cable stiffness: solid -
Range: TeSys

[Ith] conventional free air thermal current: 12:00 AM
System Voltage: 690 V AC 50/60 Hz
Electrical durability: 100000 cycles AC-1530000 cycles DC-11
Product certifications: GLULCSA
Product or component type: Auxiliary contact block
Performance level: High performance
[Ithe] conventional enclosed thermal current: 10:00 AM
Contacts type and composition: 1 NO + 1 NO
Ambient air temperature for operation: -4...122 °F (-20...50 °C)
Product compatibility: V0V01V5V1V3V2V4V6V02
Fire resistance: 1760 °F (960 °C) conforming to IEC 60695-2-1
Network type: ACDC
Network frequency: 50/60 Hz
Mounting location: Right

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on VZ20 . Santa Clara Systems carries 10,454 items from Telemecanique.
