XACA205

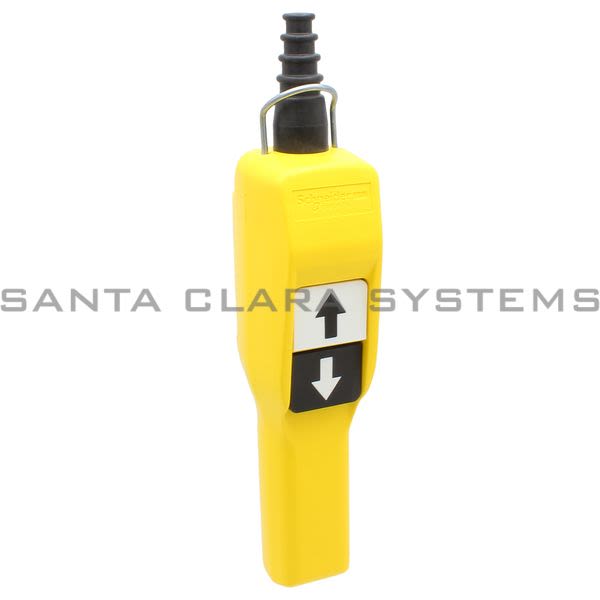

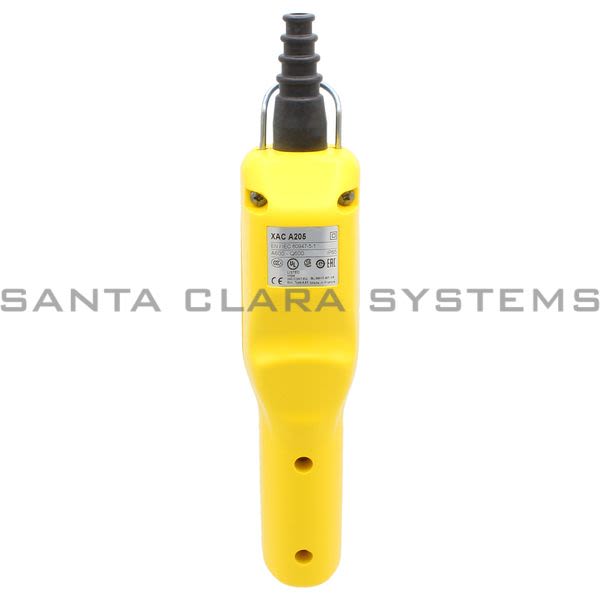

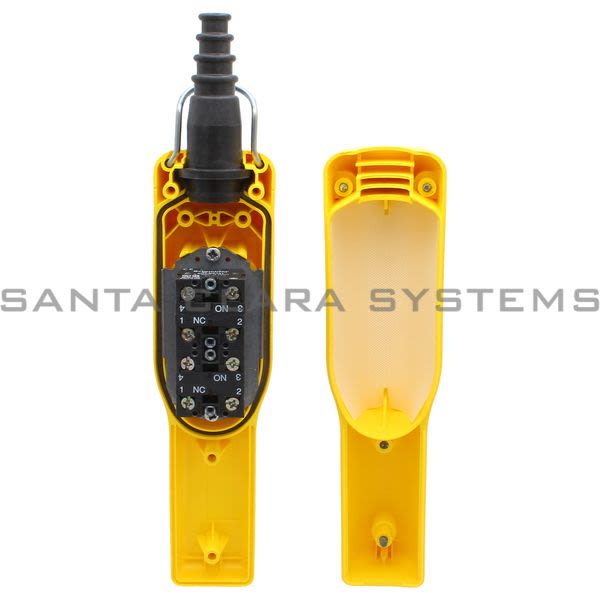

Telemecanique - pendant station XAC-A pistol grip - 2 push buttons

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: pendant station XAC-A pistol grip - 2 push buttons
Product weight: 0.66 lb(US) (0.3 kg)
Range of product: Harmony XAC
IP degree of protection: IP65 IEC 60529
Standards: EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60204-32, UL 508
Device short name: XACA pistol grip
Protective treatment: TH
[Ui] rated insulation voltage: 600 V 3 IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947-1
Mechanical durability: 1000000 cycles
Connections - terminals: Screw clamp terminals 1 x 2.5 mm with or without cable end, Screw clamp terminals 2 x 1.5 mm with or without cable end
Vibration resistance: 15 gn 10...500 Hz IEC 60068-2-6
Shock resistance: 100 gn IEC 60068-2-27
Overvoltage category: Class II IEC 61140
Category: 22473 - PUSHBUTTON, PENDANTS
Returnability: Y
Country of origin: FR
Control type: Intuitive
Enclosure material: Polypropylene
Enclosure type: Complete ready for use
Control station type: Double insulated
Product or component type: Pendant control station
Discount Schedule: CS2
GTIN: 785901645023

Electrical circuit type: Control circuit
Nbr. of units in pkg.: 1
Package weight(Lbs): 1
Control station application: Control of single speed hoist motor
Control station composition: 2 push-buttons
Control button type: First pushbutton 1 NC + 1 NO raise, slow, Second pushbutton 1 NC + 1 NO lower, slow
Product compatibility: ZB2BE102 + ZB2BE101 for each direction
Mechanical interlocking: With mechanical interlocking
Control station color: Yellow
Product certifications: CSA, UL
Ambient air temperature for operation: -13...158 F (-25...70 C)
Ambient air temperature for storage: -40...158 F (-40...70 C)
IK degree of protection: IK08 EN 50102
Cable entry: Rubber sleeve with stepped entry 7...15 mm
Contact code designation: A600 AC-15 240 V 3 A IEC 60947-5-1 appendix A, A600 AC-15 600 V 1.2 A IEC 60947-5-1 appendix A, Q600 DC-13 250 V 0.27 A IEC 60947-5-1 appendix A, Q600 DC-13 600 V 0.1 A IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current: 10:00 AM
Contact operation: Slow-break
Resistance across terminals: <= 25 MOhm
Operating force: 13...15 N
Short-circuit protection: 10 A fuse protection cartridge gG
rated operational power in W: 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C, 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C, 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
terminals description ISO n1: (11-12)NC, (13-14)NO
Terminal identifier: (13-14)NO, (11-12)NC
